Description:

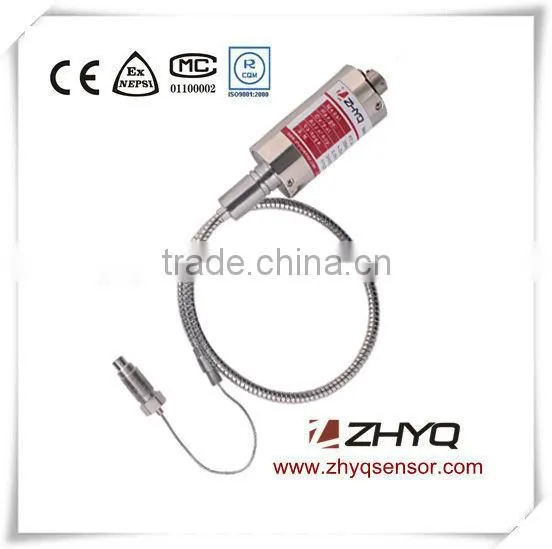

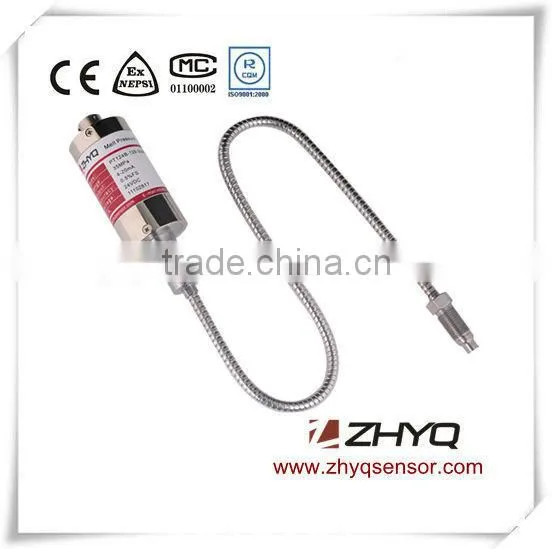

PT124G-128 is mV/V output Capillary Melt Pressure Sensor for Limited space , this series melt pressure sensor is with capillary for space restricted area , this pressure sensor is ideal for space restricted areas applications required, where mounting space is limited. also this melt pressure sensor has a free-spinning jam nut that simplifies installation. The series comes equipped with six or eight pin bendix connector. It can be interchangeable with the similar world standard products. PT124G-128 welding with amplify circuit can be change to PT124B-128 , the signal be connected with PLC directly , with advantages of high precision and reliable pressure measuring and good quality and internal 80% calibration. international standard , high accuracy ,can replace Dynisco ,Gefran ,GP50 absolutely .
Feature
this melt pressure sensor with capillary suitable for limited space , Simple Installation
Completely interchange similar import products
high accuracy ,Internal 80% calibration
Excellent stability , can replace Dynisco product absolutely .
Suitable for space restricted areas applications required
Application
Plastic extruder
Petrochemical
Polyester equipment
Plastic rubber machine
Chemical fiber manufacturing equipment
Specification
Name |
mV/V output Capillary Melt Pressure Sensor for Limited space |
Model |
PT124G-128 |
Pressure range |
0-35bar…0-1500bar (0-500psi…0-20000psi) |
Over Pressure |
1.5 X FSO |
Combined Error |
± 1.5% FSO , ± 1.0% FSO (Including Linearity, Repeatability&Hysteresis) |
Output |
3.33 mV/V, 2mV/V |
Input Voltage |
10VDC |
Repeatability |
+/- 0.2%FSO |
Bridge Resistance Input |
345 Ohms minimum |
Bridge Resistance Output |
350 Ohms +/- 10% |
Internal Shunt Calibration (R-Cal) |
80% FSO +/- 1% |
Insulation Resistance |
200 megohms @ 100 Vdc |
Max Diaphragm Temperature |
350 °C |
Mounting Torque |
500 inch/lbs. max. |
Standard Wetted Parts |
Diaphragm coated 15-5 PH SST |
Electrical connector |
5PIN, 6PIN |
Process connector |
1/2 ″ -20UNF, M14×1.5, M18×1.5 Optional |
Dimension
Order Guide : with "* "are required , with "---"is optional
Model |
Range (bar) |
Output |
Rigid & flexible length (inch) |
Screw Thread |
Electric connection |
Accuracy |
Other requirement |
PT124G-128 |
* |
* |
* |
* |
* |
* |
--- |
Example:PT124G-128-500Bar-3.3mV/V -0/18”-1/2-20UNF-6PIN-0.5%FS | |||||||
This MV/V output Capillary Melt Pressure Sensor for Limited space can matching with our N series digital pressure indicator to local display the pressure .
