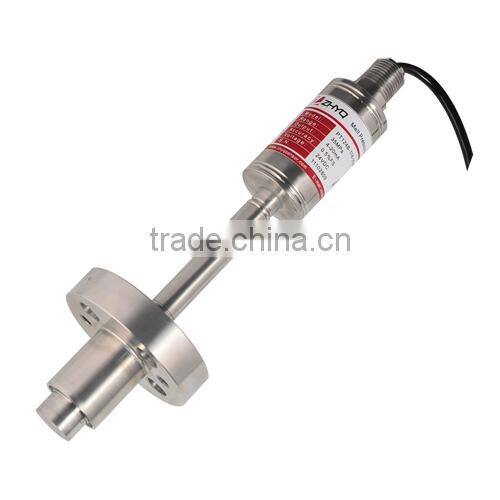

DN60 Flange Mounting Rigid 3.33MV/V Melt Pressure Transducer
- Shanghai
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
MV/V Output Flexible Stem Melt Pressure Sensor With Flange Mounting
-
Flange Mounting Flexible 4-20mA Melt Pressure Sensor
-
Explosion Proof MV/V Output Melt Pressure Transmitter With Thermouple
-
MV/V Explosion Proof Melt Pressure Transmitter for Hazardous Locations
-
Explosion Proof 4-20ma Output Melt Pressure Transmitter for Polymer Processing
-
4-20mA Rigid Melt Pressure Transmitter With Flange Mounting
Product Details
| Place of Origin | Shanghai, China | Brand Name | ZHYQ | |
| Model Number | PT124G-116 |
Product Description
Description
PT124B-116 is flange mounting rigid stem melt pressure transducer , this melt pressure transducer adopts special material and elastic alloy diaphragm, It designed with exclusive flange structure, increase the force bearing area, This melt pressure transducer has advantage of stability and repeatability, good anti-jamming performance, and widely used in the domestic and abroad,and all our melt pressure sensor are built in 80% shunt calibration , can match the N series pressure instrument from ZHYQ, also can match the pressure instrument or controller of other brand. the melt pressure transducer of PT124G-116 welding with amplify circuit can be change to PT124B-116 , the standard output signal can replace Gefran / Dynisco etc.other brand absolutely and can be connected with PLC directly .
Feature
all our melt pressure transducer are High-standard quality
Stainless steel Seal
Simple Installation
80% inner calibration
Excellent stability and repeatability
can replace Dynisco or Gefran products absolutely
Application
various plastic extrusion lines
chemical fiber manufacturing equipment
plastic rubber machine
polyester equipment
petrochemical equipment
Specification
Name | DN60 Flange mounting rigid 3.33MV/V melt pressure transducer |
Model | PT124G-116 |
Pressure range | 0-1MPa…0-150MPa (0-1500psi…0-20000psi) |
Over Pressure | 1.5 X FSO |
Combined Error | ± 0. 5% FSO (Including Linearity, Repeatability & Hysteresis) |
Output | 3.33 mV/V, 2mV/V |
Input Voltage | 10VDC |
Repeatability | +/- 0.2%FSO |
Bridge Resistance Input | 345 Ohms minimum |
Bridge Resistance Output | 350 Ohms +/- 10% |
Internal Shunt Calibration (R-Cal) | 80% FSO +/- 1% |
Insulation Resistance | 200 megohms @ 100 Vdc |
Max Diaphragm Temperature | 350 °C |
Mounting Torque | 500 inch/lbs. max. |
Standard Wetted Parts | Diaphragm coated 15-5 PH SST |
Electrical connector | 5pins ,6pins |
Process connector | Flange mounting (customization) |

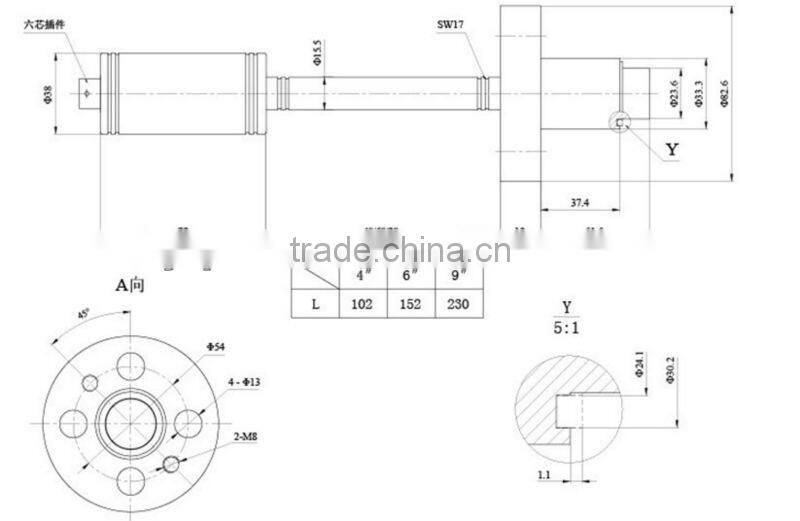

Dimension
Order Guide : with "* "are required , with "---"is optional
Model | Range | output | Rigid & flexible length (inch) | Screw Thread | Electric connector | Accuracy | others |
PT124G-116 | * | * | * | * | * | * | --- |
Example:PT124G-116-500Bar-2mV/V -6”-1/2-20UNF-DN80 flange-0.5% | |||||||
This DN60 Flange mounting rigid 3.33MV/V melt pressure transducer can matching with our N series digital pressure indicator to local display the pressure .
Our company
Shanghai Zhaohui Pressure Apparatus Co., Ltd (ZHYQ) is the leading manufacturer which specializes in the design and construction of various transducer, transmitter and automation control products in China.
Founded in 1999, ZHYQ has actively brought in advanced production equipment and manufacturing process at home and abroad, developed and produced the transducers more than 80 series and 500 models successfully, which include industrial pressure transducer/transmitter, project equipment pressure transmitter, melt pressure transducer/ transmitter, melt pressure gauge, level transmitter, temperature transducer, tension transducer/ transmitter, burst Plug, intelligent digital indicator, and all kinds of sensor chips and etc.
ZHYQ insists on the development strategy with High-tech, High Quality, High level service, Creating world name brand, focuses on the challenge and stress attended by the customers, offers the competitive products and service and creates the economic value for the customers persistently.
Our factory
1. How do you ensure good product quality?
We have a complete quality control system, all of our products are fully checked by IQC, OQC departments before ship to our clients.
2. How fast can you delivery goods?
always 7-10 working days since order confirmed , if need goods urgently, we can arrange expedited production.
3. What’s your MOQ?
We have no MOQ limits, 1 piece for test purpose at first is acceptable.
4. How long is your product warranty?
7 days replacement and 12 months repair free of charge for quality problem
5. can you accept OEM brand ?
Yes, we can accept the OEM brand without extra charge .
6. Can you offer free samples?
Yes, we can offer free samples, however you should pay for the samples at first, and then we will return the cost when you release bulk order.
7. How long your quotation valid ?
our quotation valid for 6 months .
8. What trade terms , payment mode and payment terms can you accept?
Trade terms : Ex- Works, FOB, CNF
Payment mode: T/T, Western Union, PayPal, Money Gram
Payment terms: 100% payment before shipment
9. What express ways you can offer, can we use our own courier?
We can send goods to you by DHL, TNT, UPS, SF, EMS for freight prepard , also can use your own courier account to do the freight collect , just for your convenience.
