To 15 Countries PP Yarn String Wound Filter Cartridge Making Machine
- Shanghai
- T/T L/C Money Gram Credit Card
You May Like
-
10"~40" PP Yarn String Wound Filter Cartridge Making Machine
-
10"~70" ANGE PP Yarn Winding Filter Cartridge Making Machine
-
10"/20"/..70" PP Yarn Cartridge Winding Machine/Water Filter Cartridge Machine
-
2016 New Automatic PP String Wound Filter Cartridge Making Machine From Experienced Manufactuer WUXI ANGE
-
2016 New Product PP String Wound Filter Cartridge Making Machine For Water Treatment
-
Hot Sell PP String Wound Filter Cartridge Making Machine PP Yarn Filter Winding Machine For Water Treatment
Product Details
| Place of Origin | Jiangsu, China | Brand Name | ANGE | |
| Model Number | pp string wound yarn filter winding machine with stepping motor |
Product Description
pp string wound filter machine/pp string wound filter cartridge/pp yarn winding filter machine
PP string wound filter cartridge making machine/pp yarn winding filter cartridge making machine/pp string wound filter machine is professionally produce all kinds of pp string wound filter cartridge with different micros and patterns.
PP String wound cartridges offer true depth filtration with high dirt holding capacity and extremely low media migration. It is manufactured using a high speed, continuous wind process which creates a superior one-piece filter with hundreds of diamond shaped tunnels that get progressively smaller from the outer diameter to the core. Finer particles are progressively trapped as fluid travels to the center of the filter allowing for much greater retention capacity than that which is associated with straight surface filter media of the same dimensions and porosity
- Prefiltration of drinking water, potable water or table-water.
- Filtration of industry water.
- Condensate water filtration in power generation
- Solvents filtration in BioPharm market
- Paints and coatings, Petrochemical, Refineries
- Prefiltration of ultrapure water.

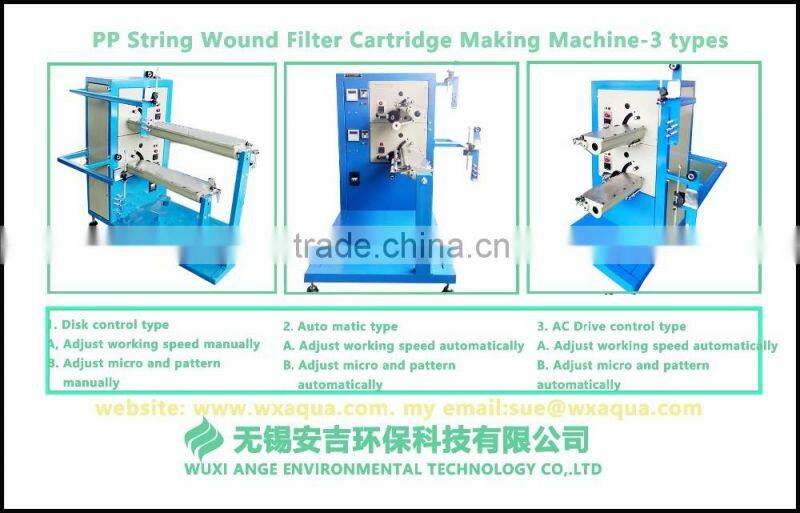

We have three different types FYI
Name | Descripition |
1. Disk control type | 1. Adjust the working speed manually
2. Adjust the mircos and patterns manually |
2. AC Drive control type | 1. Adjust the working speed automatically
2. Adjust the mircos and patterns manually |
3. Auto control type |
1. Adjust the working speed automatically
2. Adjust the mircos and patterns manually |

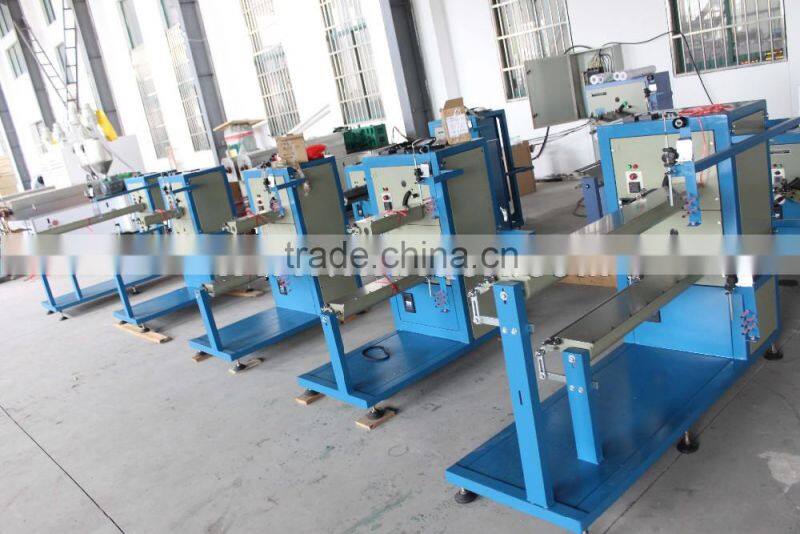

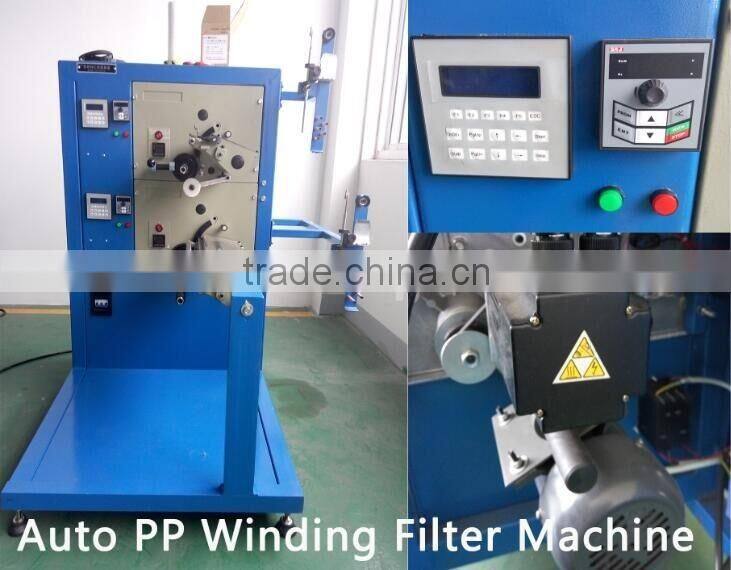

Pictures of our machine

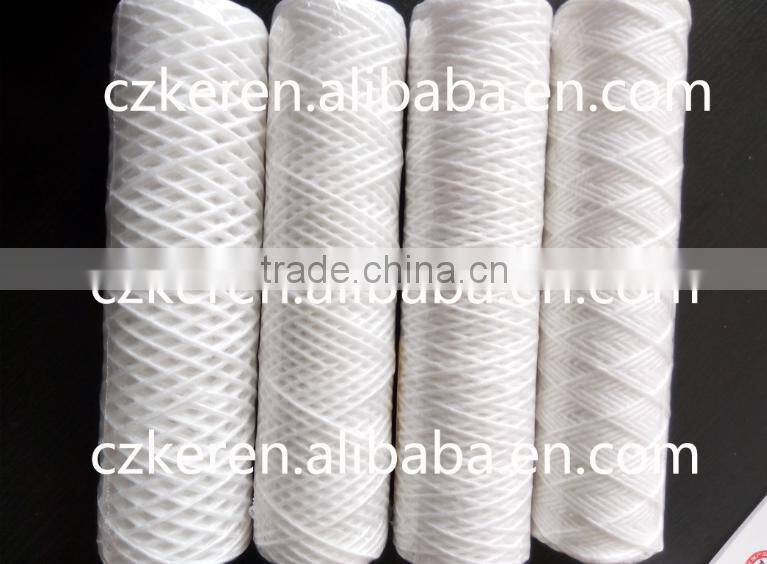

Pictures of our products
Filter Application
PP yarn winding filter cartridge is mainly used in the field of water purification, Beverage, foodstuff, Chemical, pharmaceutical, electronics, environmental protection etc. It's a dedicated machine the winding of different yarns.
Machine Description
Name | Description |
Auto control PP winding machine with stepping motor | Use AC drive (frequency converter) and Stepping motor, can change the winding speed by a spin button and change the pattern by entering the gear rate number in to the control panel
|
Note: We produce 4 kinds of PP String Wound Filter Making Machine
Features:

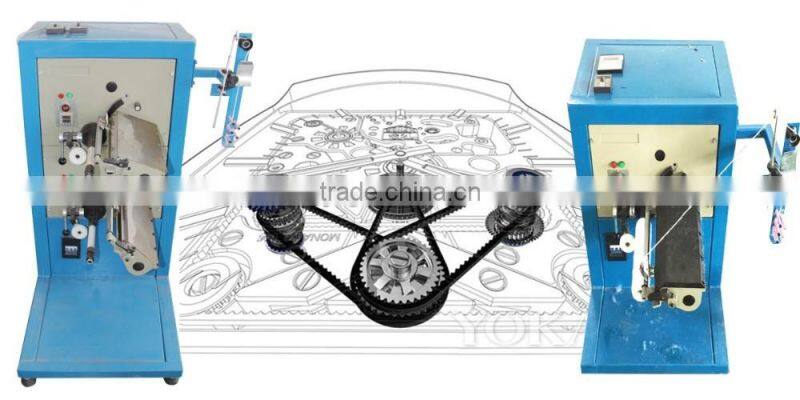

•No need to change the gears and belts manually to change the micro and pattern. Only use 4 gears and 3 belts in total and can apply to all the pattern you need.
•In a word, high speed and output, low noise, good yarn forming ability.
When the filter cartridge is full the machine will stop automatically. This machine has many advantages as such as easy operation, with yarn change device and low energy consumption.
CE CERTIFICATE
Parameters
Machine Size | 10’’ | 20’’ | 30’’ | 40’’ | … |
Power | 180w | 250w | 370w | 370w | … |
Output(piece/hour) | 70-80 | 50-60 | 25-35 | 20-30 | … |
Speed(r/min) | 2880 | 2880 | 14400 | 14400 | … |
PP core length(mm) | 248 | 498 | 748 | 998 | … |
252 | 506 | 760 | 1014 | … | |
Filter cartridge length(mm) | 250 | 500 | 750 | 1000 | … |
254 | 508 | 762 | 1016 | … | |
Winding line speed | 40-280m/min | ||||
Max winding diameter | 200mm(a diameter slightly above 200mm is available on clients’ requests) | ||||
Motor Speed | 2800r/min | ||||
Frame Material | Polypropylene, stainless steel etc. | ||||
Raw Material | PP yarn, cotton etc | ||||
Filter precision | 0.5,1,5,10,20,50,100µm...etc | ||||
Default Micro: 5 Micro
Voltage: Three-phase voltage is 380v/50hz. The single voltage is 220v/50hz.(other voltage is available)
Install: Our engineer will teach you how to install and operate in our factory
| |||||
Package information
•First every part packed by plastic film and then packed by plywood case
10’’ | 1000mm*600mm*1250mm |
20’’ | 1200mm*600mm*1250mm |
10’’ & 10’’ | 1000mm*600mm*1250mm |
10’’ & 20’’ | 1200mm*600mm*1250mm |
Parts For Free
Free parts | |
Small Spring | 20pcs |
Guide Grooves | 10pcs |
Guide block | 3pcs |
Large spring | 10pcs |
Button(red and green ) | 2pcs |
Belt | 2pcs |
Micro gears | 2sets for every head |
Wuxi ANGE Environmental Technology Company Limited is a professional manufacturer specializing in full automatic pp melt blown filter production lines, pp string wound filter making machine, CTO machine and pp non-woven melt blown fabric making machine with 20 years' experience in machine design and filter making. It is our supreme honor to have clients in our factory to see our amazing machines working by themselves.
Our clients are full of the world: Japan, Korea, Russia, Malaysia, Iran, Egypt, Taiwan, Ukraine, Turkey, Pakistan, and Thailand…
Aquatech Shanghai
After sale service
• One year of warranty. We provide one year after sale service and we provide new parts for free if your machine is broken without human factor.
• Videos are available for reference.
