PP String Wound Filter Cartridge Making Machine
PP string wound filter cartridge making machine is professionally produce all kinds of pp string wound filter cartridge with different micros and patterns.
Wuxi ANGE Environmental Technology Company Limited is a professional manufacturer specializing in full automatic PP melt blown filter production lines. We excel at PP filter machines and string wound equipment with 20 years’ experience in machine design and filter making factory. We value the quality and the cost for clients very much, as well as providing unlimited long-term technical guide by email or Skype. It is our supreme honor to have clients in our factory for a visit. Customers around the world are always welcome with extreme hospitality.
- Prefiltration of drinking water, potable water or table-water.
- Filtration of industry water.
- Condensate water filtration in power generation
- Solvents filtration in BioPharm market
- Paints and coatings, Petrochemical, Refineries
- Prefiltration of ultrapure water.
Our Company
Wuxi ANGE Environmental Technology Company Limited is a professional manufacturer specializing in full automatic PP melt blown filter production lines. We excel at PP filter machines and string wound equipment with 20 years’ experience in machine design and filter making factory. We value the quality and the cost for clients very much, as well as providing unlimited long-term technical guide by email or Skype. It is our supreme honor to have clients in our factory for a visit. Customers around the world are always welcome with extreme hospitality.
We are a manufacturer that specialized in producing all kinds of filter making machines and includes:
- Auto PP melt blown filter cartridge making machine(7thgeneration in 2016)
- PP string wound filter making machine
- PP melt blown nonwoven fabric making machine
- CTO Active Carbon Filter Cartridge Machine
WUXI ANGE PP string wound filter making machine have clients all over the world:
- Portland, Turkey, Argentina, Korea, India, Egypt, Taiwan, Pakistan, and Thailand…

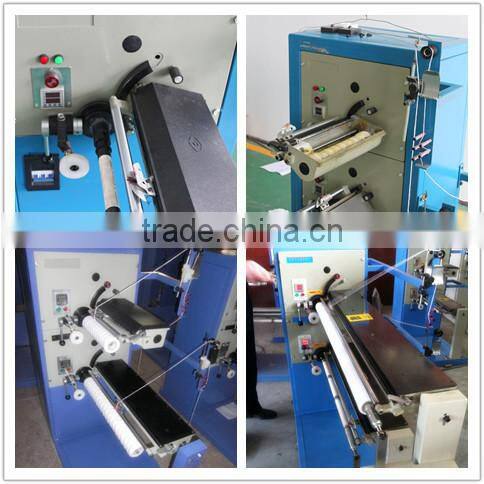

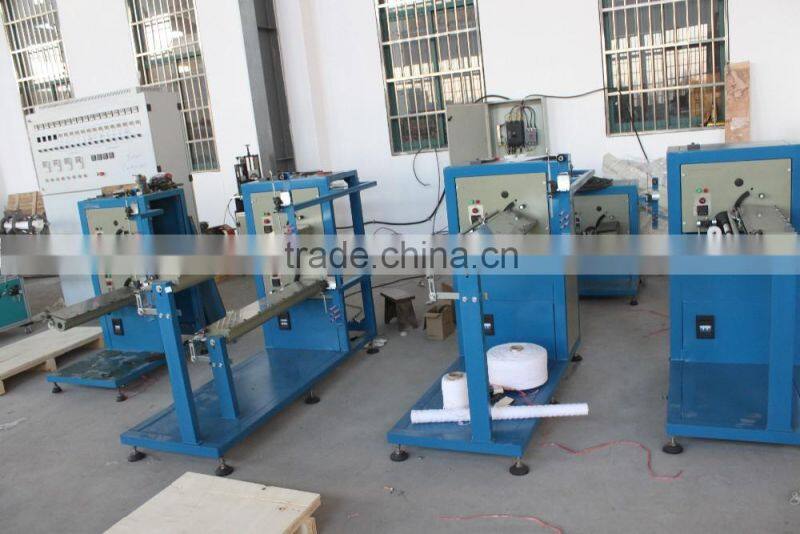

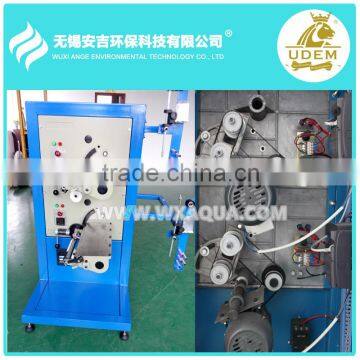

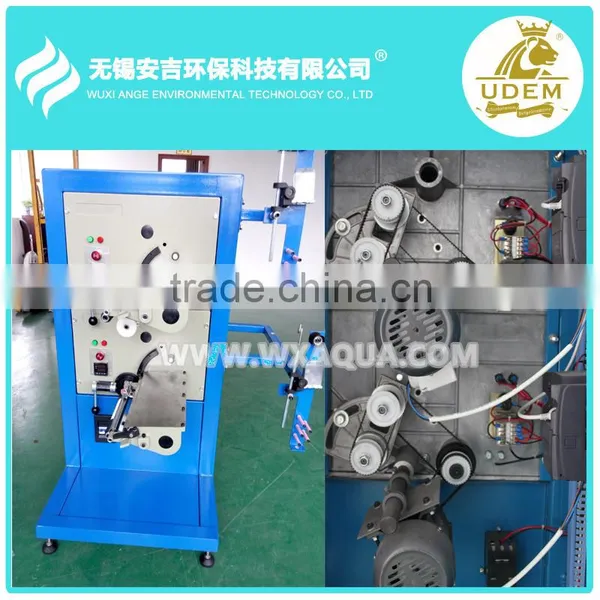

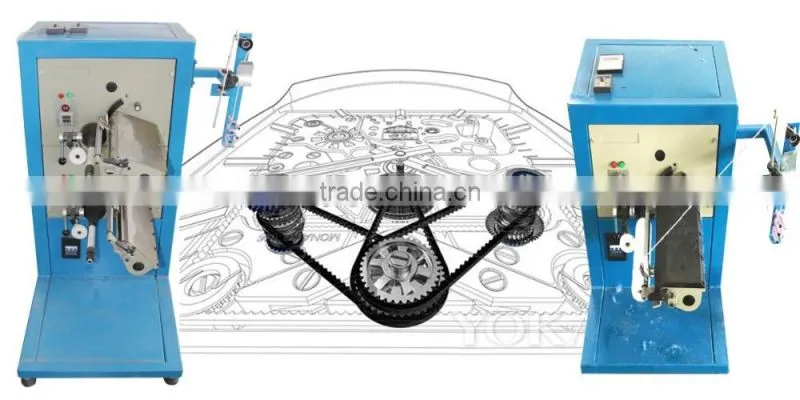

Pictures of pp string wound filter making machine

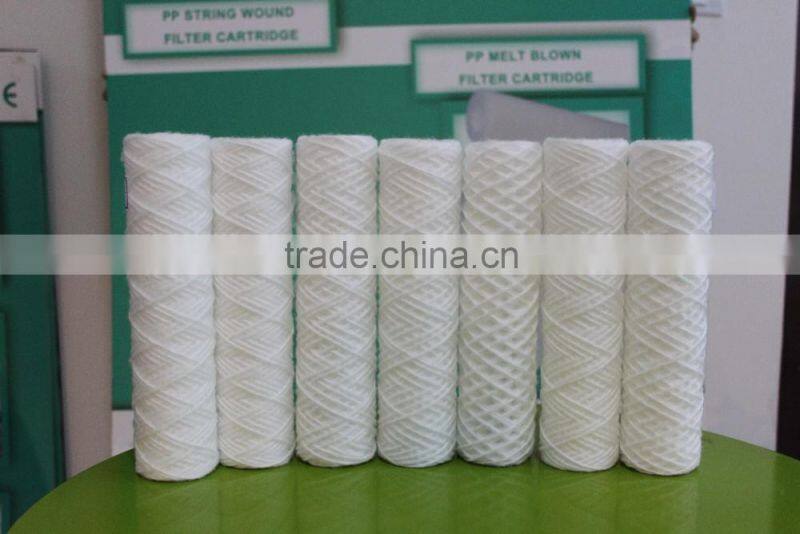

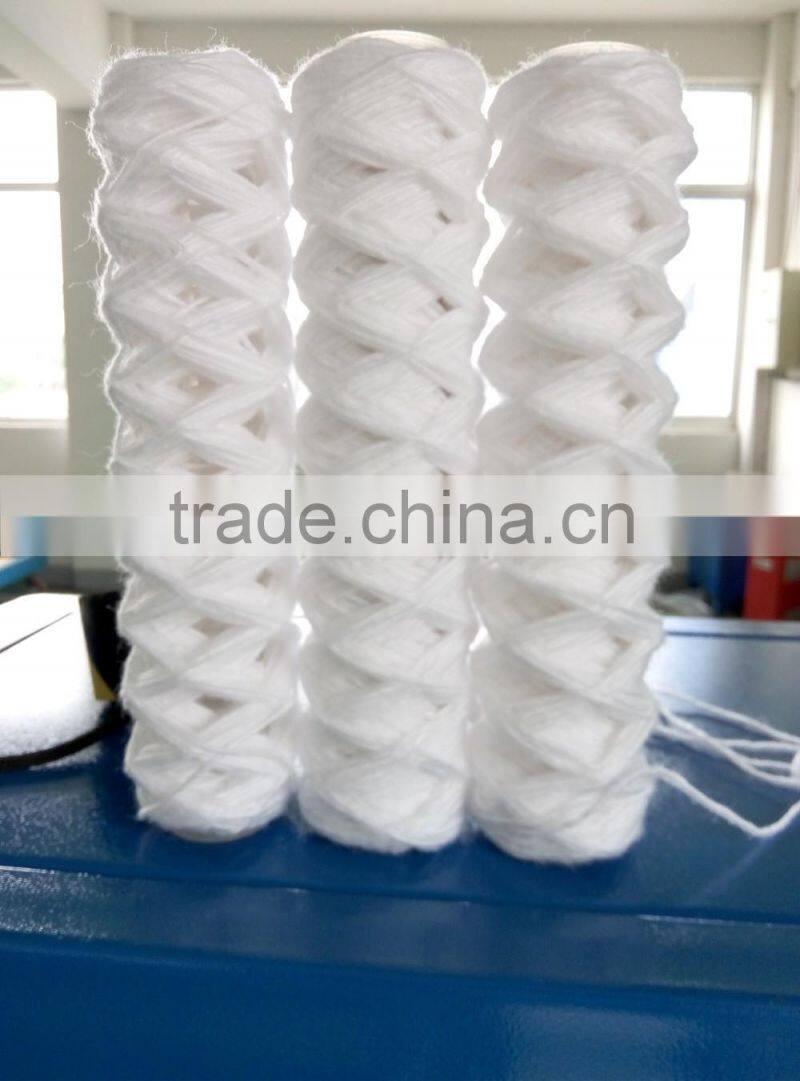

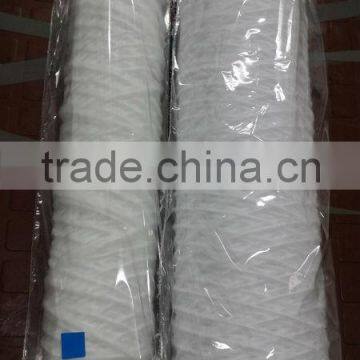

Samples of pp string wound filter cartridge
Filter Application
PP yarn winding filter cartridge is mainly used in the field of water purification, Beverage, foodstuff, Chemical, pharmaceutical, electronics, environmental protection etc. It's a dedicated machine the winding of different yarns.
Machine Description
Regarding the pp string wound filter making machine, we mainly have 3 types as below.
1. PP string wound filter making machine with disk control
2. PP string wound filter making machine with AC drive control
3. Auto Control PP string wound filter making machine
No |
Name |
1 |
Disk terminal control PP winding machine (can not change the speed and pattern automaticlly)
l Use magnetic disk as the media to control the tension and speed of the winding, need to change gears and belts to change patterns. by adjusting the distance between disks to change the speed. l 60 seconds to produce one PP filter on the basis of 10’
|
2 |
AC drive control PP winding machine (can change the speed automaticlly)
l Use AC drive (frequency converter), can change the winding speed by a spin button. need to change gears and belts to change patterns. The machine speed is easy to adjust; Wound yarn's degree of tension and winding pattern can be easily adjusted l 50 seconds to produce one PP filter on the basis of 10” |
| 3 |
Auto control PP winding machine with servo motor(can change the speed and pattern automaticlly)
l Use AC drive (frequency converter) and Stepping motor, can change the winding speed by a spin button, no need to change gears and belts, just input the gear ratio number into the table to change patterns. l It only costs 35 seconds to produce one PP filter on the basis of 10’’ |
Features
1. The machine speed is easy to adjust;Wound yarn's degree of tension and winding pattern can be easily adjusted
2. No need to change the gears and belts manually to change the micro and pattern. Only use 4 gears and
3 belts in total and can apply to all pattern you need.
3. 30% faster than another 2 kinds.It only costs 35 seconds to produce one PP filter on the basis of 10’’
Parameters
Machine Size |
10’’ |
20’’ |
30’’ |
40’’ |
… |
Power |
180w |
250w |
370w |
370w |
… |
Output(piece/hour) |
70-80 |
50-60 |
25-35 |
20-30 |
… |
Speed(r/min) |
2880 |
2880 |
14400 |
14400 |
… |
PP core length(mm) |
248 |
498 |
748 |
998 |
… |
252 |
506 |
760 |
1014 |
… |
|
Filter cartridge length(mm) |
250 |
500 |
750 |
1000 |
… |
254 |
508 |
762 |
1016 |
… |
|
Winding line speed |
40-280m/min |
||||
Max winding diameter |
200mm(a diameter slightly above 200mm is available on clients’ requests) |
||||
Motor Speed |
2800r/min |
||||
Frame Material |
Polypropylene, stainless steel etc. |
||||
Raw Material |
PP yarn, cotton etc |
||||
Filter precision |
0.5,1,5,10,20,50,100µm...etc |
||||
|
Default Micro: 5 Micro
Voltage: Three-phase voltage is 380v/50hz. The single voltage is 220v/50hz.(other voltage is available)
Install: Our engineer will teach you how to install and operate in our factory
| |||||
Package information
10’’ |
1000mm*600mm*1250mm |
20’’ |
1200mm*600mm*1250mm |
10’’ & 10’’ |
1000mm*600mm*1250mm |
10’’ & 20’’ |
1510mm*1230mm*900mm |
|
… |
Notice: First every part packed by plastic film and then packed by wooden case | |
Payment |
40% T/T in advance |
60% T/T balance before shipment | |
Delivery |
FOB: free on board |
CIF: Cost Insurance and Freight |
Parts For Free
Free parts | |
Small Spring |
20pcs |
Guide Grooves |
10pcs |
Guide block |
3pcs |
Large spring |
10pcs |
Button(red and green ) |
2pcs |
Belt |
2pcs |
Micro gears |
2sets for every head |
After sale service
One year warranty. We provide new parts for free if your machine is broken without human factor.(Except easy worn parts)
Our engineer will teach you how to install and operate in our factory or via a teaching video.
Long-term guide through E-mail or Skype.
