PP Yarn Filter cartridge Making Machine
- 20 Set / Sets per Month
- Shanghai
- T/T
Product Details
Place of Origin: | Jiangsu, China | Brand Name: | ANGE | Model Number: | AC drive control PP winding machine |
Product Description
Our Company
ANGE is a professional manufacturer that producing pp melt blown/spun filter making machine. And we have independent research department to design and make new products according to clients’ special requirement.
And we have 2 main engineers, Mr. Xia has 20 years’ experience in machine design and especially in plastic extruding industry; Mr. Wen who has 15 years’ experience in filter making factory and can make all the filters you want.
Our clients are full of the world: India, Iran, Egypt, Taiwan, Ukraine, Turkey, Pakistan, and Thailand…
Our Mission
Our mission is to constantly strive to achieve excellence in all our endeavors via constant innovation to create excellent products to fulfill the needs of our customer. to achieve this, we :
•Frequently compare our products with competing brands.
•Validate our products.
•Develop easy to use innovative products

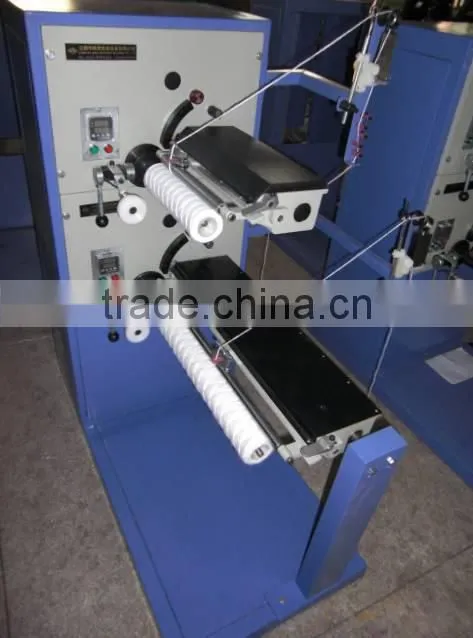

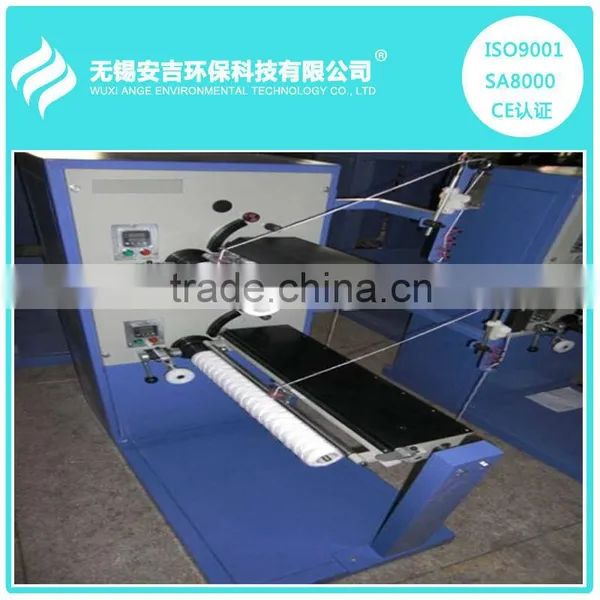

Pictures of our machine
x
Pictures of our products
Filter Application
PP yarn winding filter cartridge is mainly used in the field of water purification, Beverage, foodstuff, Chemical, pharmaceutical, electronics, environmental protection etc. It's a dedicated machine the winding of different yarns.
Machine Description
Name | Description |
AC drive control PP winding machine | Use AC drive (frequency converter), can change the winding speed by a spin button. Feature: easy operation, power saving, variable speed |
Note: We produce 4 kinds of PP String Wound Filter Making Machine
Features
1. One machine could produce two sizes in the same time as above sample picture shows
2. The machine speed is easy to adjust; Wound yarn's degree of tension and winding pattern can be easily adjusted
In a word, high speed and output, low noise, good yarn forming ability.
When the filter cartridge is full the machine will stop automatically. This machine has many advantages as such as easy operation, with yarn change device and low energy consumption.
Parameters
Machine Size | 10’’ | 20’’ | 30’’ | 40’’ | … |
Power | 180w | 250w | 370w | 370w | … |
Output(piece/hour) | 70-80 | 50-60 | 25-35 | 20-30 | … |
Speed(r/min) | 2880 | 2880 | 14400 | 14400 | … |
PP core length(mm) | 248 | 498 | 748 | 998 | … |
252 | 506 | 760 | 1014 | … | |
Filter cartridge length(mm) | 250 | 500 | 750 | 1000 | … |
254 | 508 | 762 | 1016 | … | |
Winding line speed | 40-280m/min | ||||
Max winding diameter | 200mm(a diameter slightly above 200mm is available on clients’ requests) | ||||
Motor Speed | 2800r/min | ||||
Frame Material | Polypropylene, stainless steel etc. | ||||
Raw Material | PP yarn, cotton etc | ||||
Filter precision | 0.5,1,5,10,20,50,100µm...etc | ||||
Default Micro: 5 Micro
Voltage: Three-phase voltage is 380v/50hz. The single voltage is 220v/50hz.(other voltage is available)
Install: Our engineer will teach you how to install and operate in our factory
|
Package information
• First every part packed by plastic film and then packed by plywood case
• 10''&20'' 1200mm*600mm*1250mm
Parts For Free
Free parts | |
Small Spring | 20pcs |
Guide Grooves | 10pcs |
Guide block | 3pcs |
Large spring | 10pcs |
Button(red and green ) | 2pcs |
Belt | 2pcs |
Micro gears | 2sets for every head |
After sale service
• One year warranty. We provide one year after sale service and we provide new parts for free if your machine is broken without human factor.
• Videos are available for reference.
