PP Yarn Winding Filter Cartridge Mking Machine
Our Mission
Our mission is to constantly strive to achieve excellence in all our endeavors via constant innovation to create excellent products to fulfill the needs of our customer. to achieve this, we :
•Frequently compare our products with competing brands.
•Validate our products.
•Develop easy to use innovative products

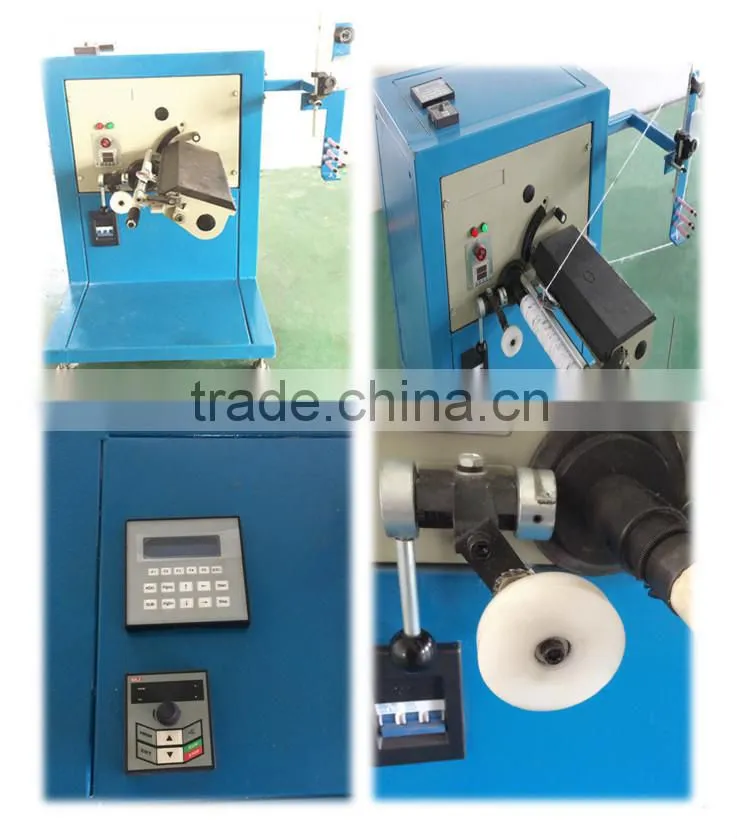

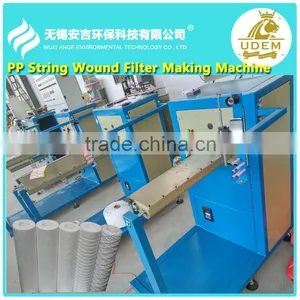

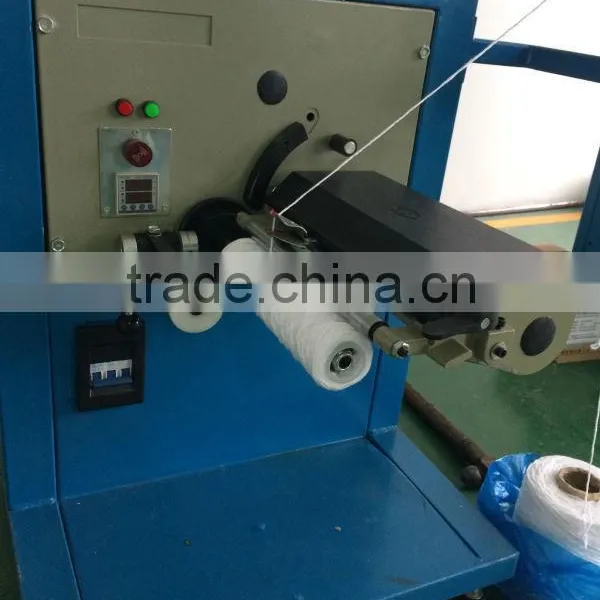

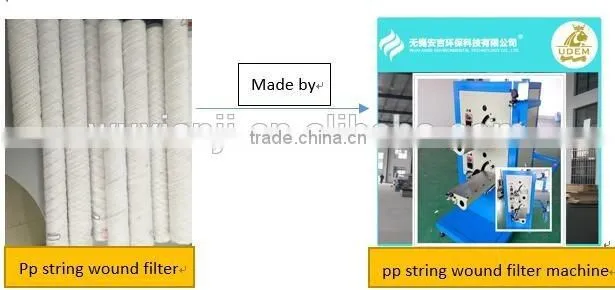

Pictures of our machine

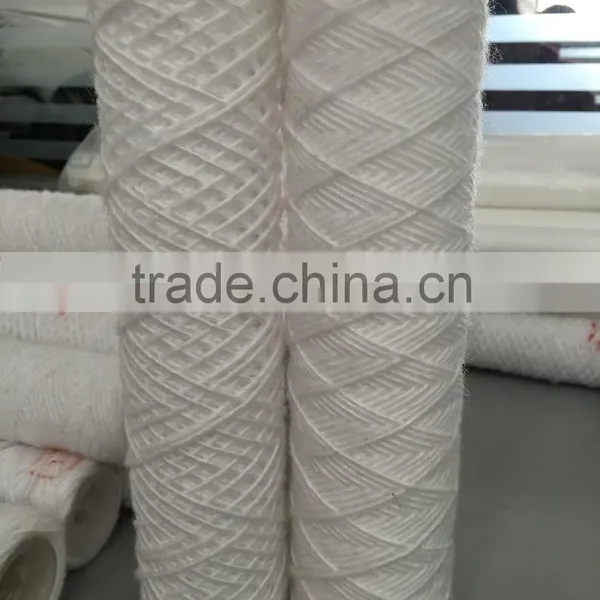

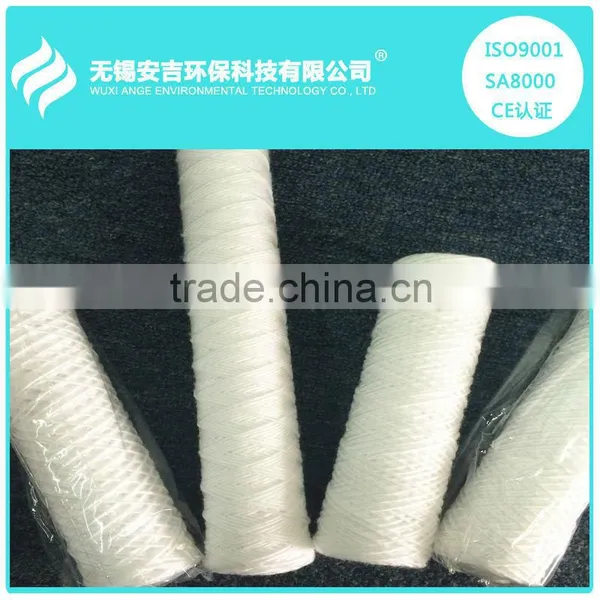

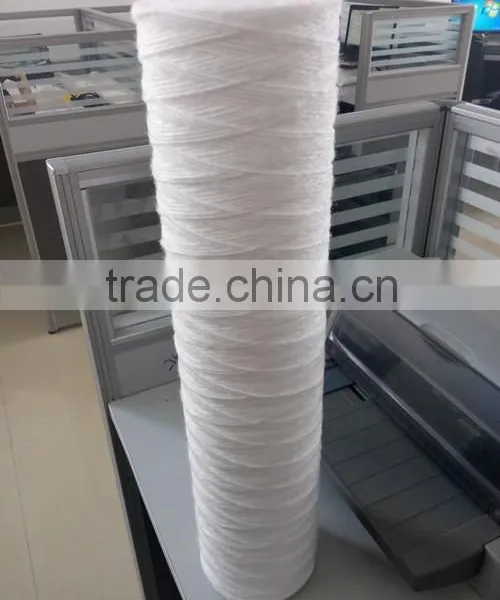

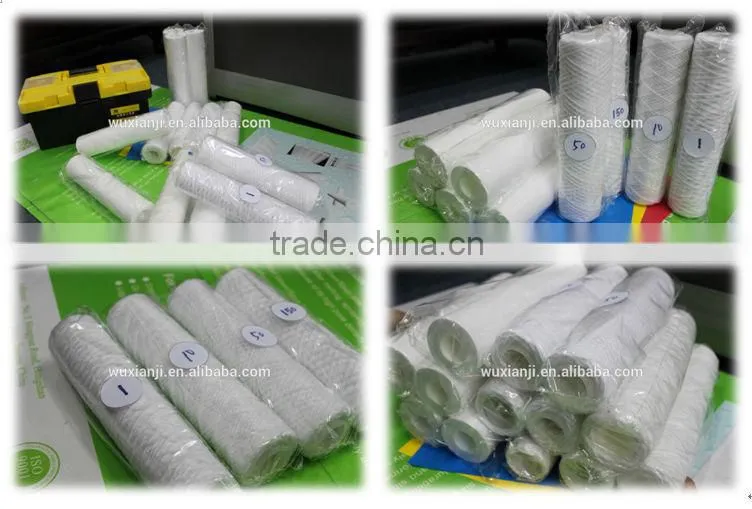

Pictures of our products
Filter Application
PP yarn winding filter cartridge is mainly used in the field of water purification, Beverage, foodstuff, Chemical, pharmaceutical, electronics, environmental protection etc. It's a dedicated machine the winding of different yarns.
Machine Description
Name |
Description |
Auto control PP winding machine with stepping motor |
Use AC drive (frequency converter) and Stepping motor, can change the winding speed by a spin button and change the pattern by entering the gear rate number in to the control panel
|
Note: We produce 4 kinds of PP String Wound Filter Making Machine
Features
•no need to change the gears and belts manually to change the micro and pattern. Only use 4 gears and 3 belts in total and can apply to all the pattern you need.
•In a word, high speed and output, low noise, good yarn forming ability.
When the filter cartridge is full the machine will stop automatically. This machine has many advantages as such as easy operation, with yarn change device and low energy consumption.
Parameters
Machine Size |
10’’ |
20’’ |
30’’ |
40’’ |
… |
Power |
180w |
250w |
370w |
370w |
… |
Output(piece/hour) |
70-80 |
50-60 |
25-35 |
20-30 |
… |
Speed(r/min) |
2880 |
2880 |
14400 |
14400 |
… |
PP core length(mm) |
248 |
498 |
748 |
998 |
… |
252 |
506 |
760 |
1014 |
… |
|
Filter cartridge length(mm) |
250 |
500 |
750 |
1000 |
… |
254 |
508 |
762 |
1016 |
… |
|
Winding line speed |
40-280m/min |
||||
Max winding diameter |
200mm(a diameter slightly above 200mm is available on clients’ requests) |
||||
Motor Speed |
2800r/min |
||||
Frame Material |
Polypropylene, stainless steel etc. |
||||
Raw Material |
PP yarn, cotton etc |
||||
Filter precision |
0.5,1,5,10,20,50,100µm...etc |
||||
|
Default Micro: 5 Micro
Voltage: Three-phase voltage is 380v/50hz. The single voltage is 220v/50hz.(other voltage is available)
Install: Our engineer will teach you how to install and operate in our factory
| |||||
Package information
•First every part packed by plastic film and then packed by plywood case
10’’ |
1000mm*600mm*1250mm |
20’’ |
1200mm*600mm*1250mm |
10’’ & 10’’ |
1000mm*600mm*1250mm |
10’’ & 20’’ |
1200mm*600mm*1250mm |
Parts For Free
Free parts | |
Small Spring |
20pcs |
Guide Grooves |
10pcs |
Guide block |
3pcs |
Large spring |
10pcs |
Button(red and green ) |
2pcs |
Belt |
2pcs |
Micro gears |
2sets for every head |
After sale service
• One year of warranty. We provide one year after sale service and we provide new parts for free if your machine is broken without human factor.
• Videos are available for reference.
