Single Voltage Large Install Aperture Current Transducer /sensor RCS11A-100

Split core Hall effect current transducer type: RCS11A-100

Profile:

Split core open loop Hall effect current transducer RCS11A-100 is for the measurement of currents: DC, AC, pulsed and irregular wave currents with galvanic isolation between the primary circuit and the secondary circuit.

Performance parameters

Features

1. Open loop

2. According to UL 94-V0 requirements

3. RoHS and CE certificated

Superiorities

1. Excellent accuracy, very good linearity

2. Low thermal drift

3. Wide bandwidth

4. Fast response

5. High immunity to external interference

6. Good overload capability

7. Low inductance

Applications

1. VF speed regulating device

2. Inverter

3. UPS

4. SMPS

5. Electric locomotive

6. Grid monitoring

7. Industrial machine, commercial converter

8. Telecom base

Dimension

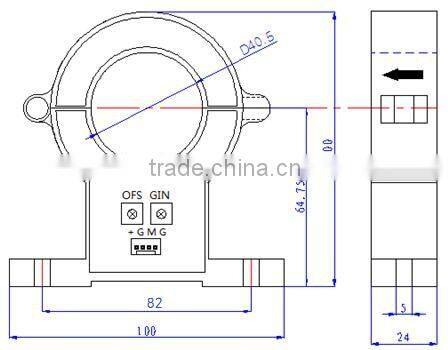

Outline of RCS11A series

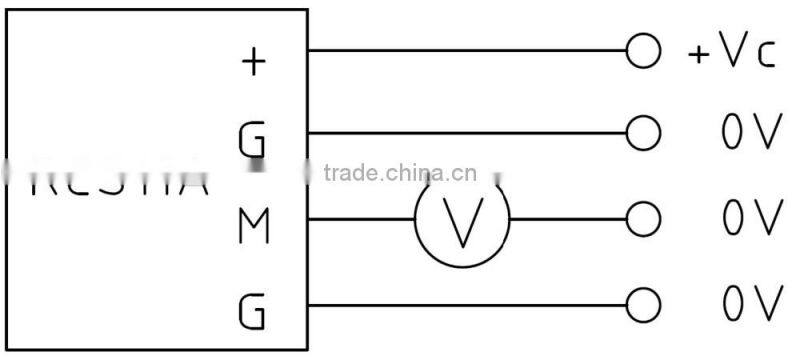

Connection

 Connection

Notices

1. Please connect according to the dimension drawing in which defining the current flowing direction and the function of the PIN.

2. The temperature of the primary busbar can’t be over 100°C.

3. We can also develop and manufacture transducers depending on customers’ requirements. Welcome to communicate with us when you are in this kind of demand.

Appliction cases(Welding machine, Commercial converter / inverter)

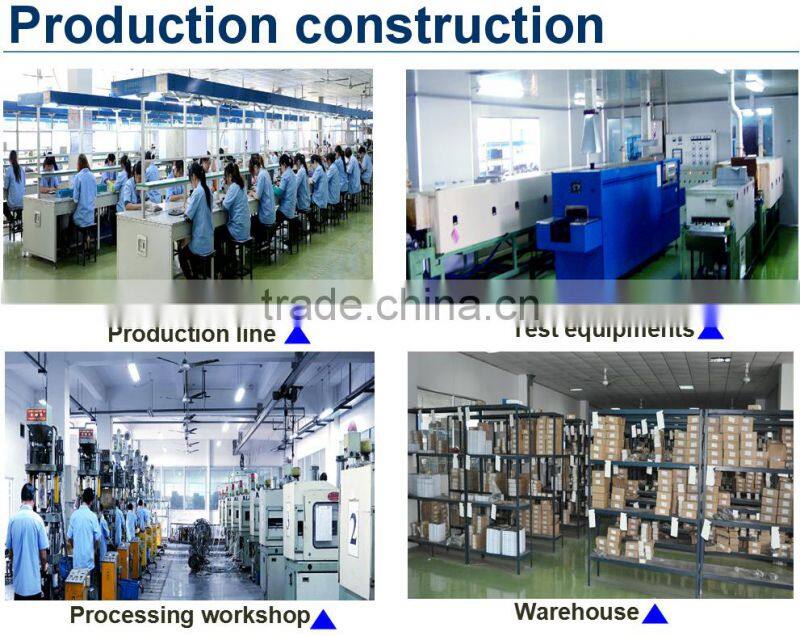

Production construction
