Hall effect current sensor module: RCB45B series

Closed loop Hall effect current sensor RCB45B series are for the real-time precision galvanic isolation measurement of the current: DC, AC, pulse and irregular wave current between the primary circuit and the secondary circuit.

Performance parameters

Electric parameters						Features 1. Magnetic balance (closed loop) 2. According to UL 94-V0 requirements 3. RoHS and CE certificated 4. Single power supply work Superiorities 1. Excellent accuracy, good linearity 2. Low thermal drift 3. Wide bandwidth 4. Fast response 5.High immunity to external interference 6. Good overload capability 7. Low inductance Applications 1. VFC in household appliance 2. AC variable-speed drive 3. UPS 4. Converter / inverter 5. Industrial power supply 6. Solar power and wind power 7. Electrical application
Ipn	Nominal RMS current	10A	25A	50A	75A
Ip	Measuring range	30A	80A	120A	150A
Vsn	Output voltage @ Ipn	2.5 ±0.625V
Kn	Turns ratio	1:800	1:2000	1:2000	1:2000
Rm	Load resistance Rmax	≥10KΩ
Vc	Supply voltage	+5V
Ic	Current consumption	10mA+output current
Vd	Withstand voltage	3kVrms/50Hz/min
Dynamic parameters
X	Accuracy @Ta=25°C	±0.7% FS
εL	Linearity @Ta=25°C	±0.1% FS
VO	Offset voltage @Ta=25°C	±20mV
VOT	Thermal drift	≤±0.5mV/°C
Tr	Response time	≤1us
BW	Bandwidth	DC~100kHz
di/dt	Following accuracy	>50A/us
General parameters
Ta	Operating temperature	-40~+85°C
Ts	Storage temperature	-40~+90°C
W	Weight	12g
Standards		EN50178:1998, ISO9001

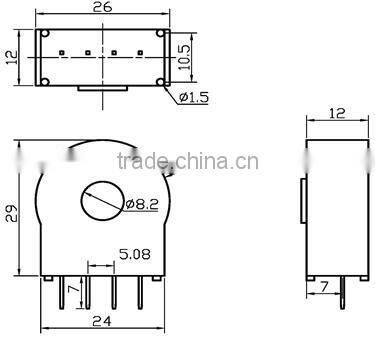

Dimension (mm)

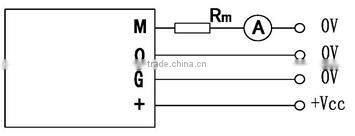

Connection

Notice

1. Please connect according to the dimension drawing in which defining the current flowing direction and the function of the PIN.

2. The temperature of the primary busbar can't be over 100°c.

3. We can also develop and manufacture sensor depending on customers' requirements. Welcome to communicate with us if you are in this kind of demand.
