Industrial 20mA Output Integrated Linear Hall Effect DC AC Pulse Current Sensor / Transducer, RCB46B-50 (Ipn=50A)

Name: Industrial 20mA Output Integrated Linear Hall Effect DC AC Pulse Current Sensor / Transducer, RCB46B-50 (Ipn=50A)
Brand: ROCKET
SKU: 130154005
Availability: InStock

Industrial 20mA Output Integrated Linear Hall Effect DC AC Pulse Current Sensor / Transducer, RCB46B-50 (Ipn=50A) thumbnail-1

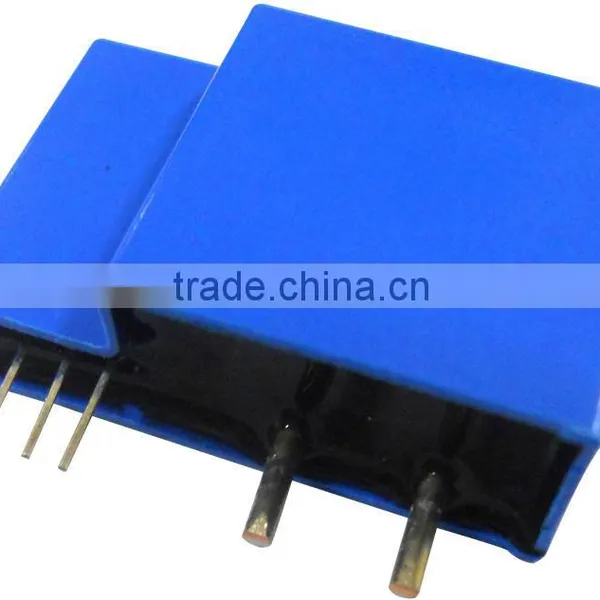

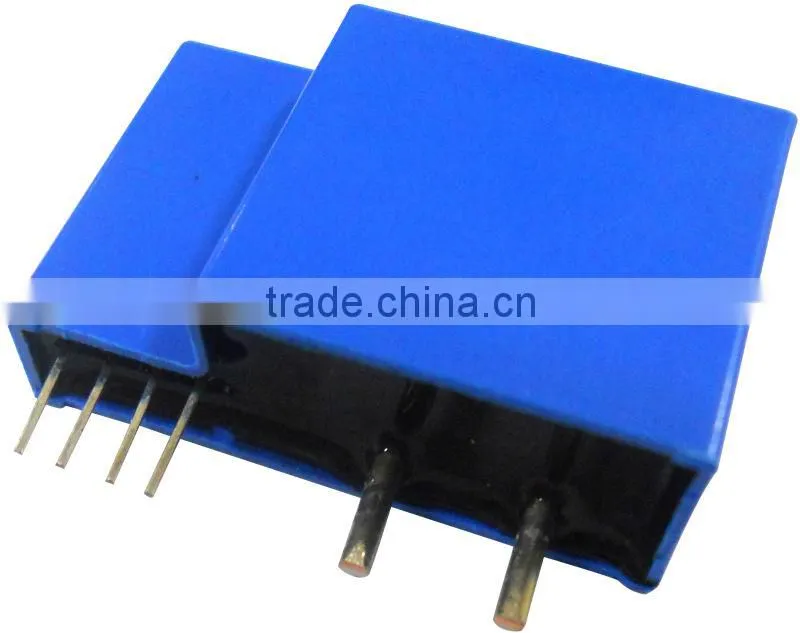

Industrial 20mA Output Integrated Linear Hall Effect DC AC Pulse Current Sensor / Transducer, RCB46B-50 (Ipn=50A) photo-1

Negotiable MOQ: 50 Pieces (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Place of Origin:

Zhejiang, China

Brand Name:

ROCKET

Model Number:

RCB46B-50

Contact Supplier Request Quote Chat Now

Ningbo Huayu Electronics Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Ningbo China

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Zhejiang, China

Brand Name ROCKET

Model Number RCB46B-50

Usage Magnetic Sensor

Theory Hall Sensor

Output Analog Sensor

Hall effect current transducer type: RCB46B-50

Picture of the product

Profile:

Closed loop Hall current transducer RCB46B-50 is for the measurement of currents: DC, AC, pulse and irregular wave currents with galvanic isolation between the primary circuit and the secondary circuit.

Performance parameters

Electric parameters
Ipn	Nominal RMS current	50A
Ip	Measuring range	1200A
Isn	Output current @ Ipn	20mA
Kn	Turns ratio	1:3125
Diameter (mm) of the primary PIN		1.6*1.5
Rm	Load resistance Rmax	≤250Ω
Vc	Supply voltage	±12~±15V DC
Ic	Current consumption	12mA+output current
Vd	Withstand voltage	3kVrms/50Hz/min
Dynamic parameters
X	Accuracy @ Ta=25°C	±0.5% FS
εL	Linearity @ Ta=25°C	±0.1% FS
IO	Offset current @ Ta=25°C	±0.2mA
IOT	Thermal drift	≤±0.01mA/°C
Tr	Response time	≤1us
BW	Bandwidth (-0.5dB)	DC~100kHz
di/dt	Following accuracy	≥50A/us
General parameters
Ta	Operating temperature	-40~+85 °C
Ts	Storage temperature	-55~+90 °C
W	Weight	12g
Standards		EN50178:1998, ISO9001

Features

l Magnetic balance (closed loop)

l According to UL 94-V0 requirements

l RoHS and CE certificated

l PCB-mounted

Superiorities

l Excellent accuracy, very good linearity

l Fast response

l High immunity to external interference

l Good overload capability

Applications

l VFC in household appliance

l AC variable-speed drive

l UPS

l Converter device

l Industry (welding machine,textile machine,electric machine,etc.)

l Electrical applications

Dimension

Outline drawing of RCB46B-50

Connection

Production construction

Brand background

Notices

lPlease connect according to the dimension drawing in which defining the current flowing direction and the function of the PIN.

l The temperature of the primary busbar can’t be over 100°C.

lWe can also develop and manufacture transducers depending on customers’ requirements. Welcome to communicate with us when you are in this kind of demand.
