PCB Assembly Hall Effect DC AC Current Transducer RCB47B Series (Ipn=125A-200A)

FOB Price

Negotiable / Piece

50 Pieces(Min. Order)

Port Ninbo China
Payment TermsMoney Gram

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Zhejiang, China	Brand Name	ROCKET
Model Number	RCB47B series	Usage	Magnetic Sensor
Theory	Hall Sensor	Output	Analog Sensor

Product Description

Hall effect current transducer type: RCB47B series

Profile:

Closed loop Hall current transducer RCB47B series are for the measurement of currents: DC, AC, pulse and irregular wave currents with galvanic isolation between the primary circuit and the secondary circuit.

Performance parameters

Electric parameters				Features l. Magnetic balance (closed loop) 2.According to UL 94V0 requirements 3.RoHS and CE certificated 4.PCB assembly Superiorities l. Excellent accuracy, very good linearity 2.Fast response 3.High immunity to external interference 4.Good overload capability Applications l. VFC in household appliance 2. AC variable-speed drive 3. UPS 4. Converter device 5. Industry (welding machine, textile machine,etc.) 6. Electrical application
Ipn	Nominal RMS current	125A	200A
Ip	Measuring range	375A	600A
Isn	Output current @ Ipn	125mA	100 mA
Kn	Turns ratio	1:1000	1:2000
Rm	Load resistance Rmax	≤30Ω	≤45Ω
Vc	Supply voltage	±9V~±15V DC
Ic	Current consumption	12mA+output current
Vd	Withstand voltage	3kVrms/50Hz/min
Dynamic parameters
X	Accuracy @Ta=25°C	±0.5% FS
εL	Linearity @Ta=25°C	±0.1% FS
IO	Offset current @Ta=25°C	±0.2mA
IOT	Thermal drift	≤±0.01mA/°C
Tr	Response time	≤1us
BW	Bandwidth(-0.5dB)	DC~100kHz
di/dt	Following accuracy	≥50A/us
General parameters
Ta	Operating temperature	-40~+85°C
Ts	Storage temperature	-55~+90°C
W	Weight	19g
Standards		EN50178:1998, ISO9001

Dimension

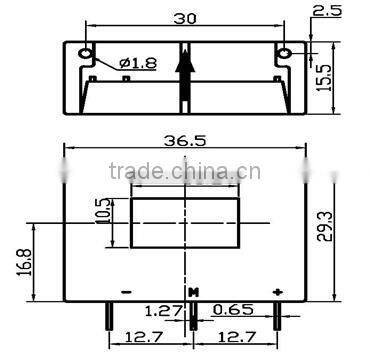

Outline drawing of RCB47B

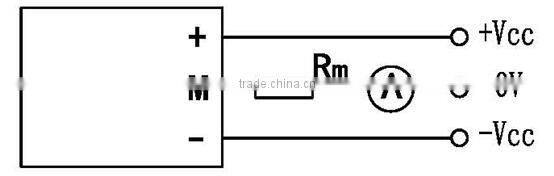

Connection

Notices

1. Please connect according to the dimension drawing in which defining the current flowing direction and the function of the PIN.

2. The temperature of the primary busbar can’t be over 100°C.

3.We can also develop and manufacture transducers depending on customers’ requirements. Welcome to communicate with us when you are in this kind of demand.

Certifications ( ISO9001, CE, RoHS )
