Cost Effective and Reliable Hall Effect DC AC Pulsed Current Transducer / Sensor RCB59C-300 (Ipn=300A) for Circuit Monitoring

Cost Effective and Reliable Hall Effect DC AC Pulsed Current Transducer / Sensor RCB59C-300 (Ipn=300A) for Circuit Monitoring thumbnail-1
Cost Effective and Reliable Hall Effect DC AC Pulsed Current Transducer / Sensor RCB59C-300 (Ipn=300A) for Circuit Monitoring photo-1
Negotiable MOQ: 50 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
ROCKET
Model Number:
RCB59C-300
Contact Supplier Request Quote Chat Now
Ningbo Huayu Electronics Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name ROCKET
Model Number RCB59C-300
Usage Consumption Sensor
Theory Hall Sensor
Output Analog Sensor

cost effective and reliable Hall effect DC AC pulsed current transducer / sensor RCB59C-300 (Ipn=300A) for circuit monitoring



Hall effect current transducer type: RCB59C-300



cost effective and reliable Hall effect DC AC pulsed current transducer / sensor RCB59C-300 (Ipn=300A) for circuit monitoring







 Closed loop Hall effect current transducer RCB59C-300 is for the measurement: DC, AC, pulsed and irregular wave currents with galvanic isolation between the primary circuit and the secondary circuit.



Performance parameters



Electric parameters

Features

1. Magnetic balance (closed loop)

2. According to UL 94-V0

3. RoHS and CE certificated



Superiorities

1. Excellent accuracy, very good linearity

2. Low thermal drift

3. Wide bandwidth

4. Fast response

5. High immunity to external interference

6. Good overload capability

7. Low inductance



Applications

1. VF speed regulating device

2. SMPS

3. UPS

4. Inverter device

5. Industrial power supply (welding machine, textile machine, etc.)

6. Electric locomotive

7. Grid monitoring

8. Wind turbine power system

Ipn

Nominal RMS current

300A

Ip

Measuring range

1.5* Ipn

Vsn

Output voltage @ Ipn

5V

Kn

Turns ratio

1:2000

Rm

Load resistance Rmax(±15V)

≥10KΩ

Vc

Supply voltage

±12V~±15V

Ic

Current consumption

28mA+output current

Vd

Withstand voltage

6kVrms/50Hz/min

Dynamic parameters

X

Accuracy @ Ta=25°C

±0.6% FS

εL

Linearity @ Ta=25°C

±0.1% FS

VO

Offset voltage @ Ta=25°C

±20mV

VOT

Thermal drift

≤±0.5mV/°C

Tr

Response time

≤1us

BW

Bandwidth

DC~100kHz

di/dt

Following accuracy

≥100A/us

General parameters

Ta

Operating temperature

-25~+85 °C

Ts

Storage temperature

-40~+90 °C

W

Weight

75g±10%

Standards

EN50178:1998, ISO9001



 Dimension

 cost effective and reliable Hall effect DC AC pulsed current transducer / sensor RCB59C-300 (Ipn=300A) for circuit monitoring

Outline drawing of RCB59C-300

Connection

cost effective and reliable Hall effect DC AC pulsed current transducer / sensor RCB59C-300 (Ipn=300A) for circuit monitoring

 Notices

1. Please connect according to the dimension drawing in which defining the current flowing direction and the function of the PIN.

2. The temperature of the primary busbar can’t be over 100°C.

3. We can also develop and manufacture transducers depending on customers’ requirements. Welcome to communicate with us when you are in this kind of demand.



Certifications ( ISO9001, CE, RoHS )

cost effective and reliable Hall effect DC AC pulsed current transducer / sensor RCB59C-300 (Ipn=300A) for circuit monitoring



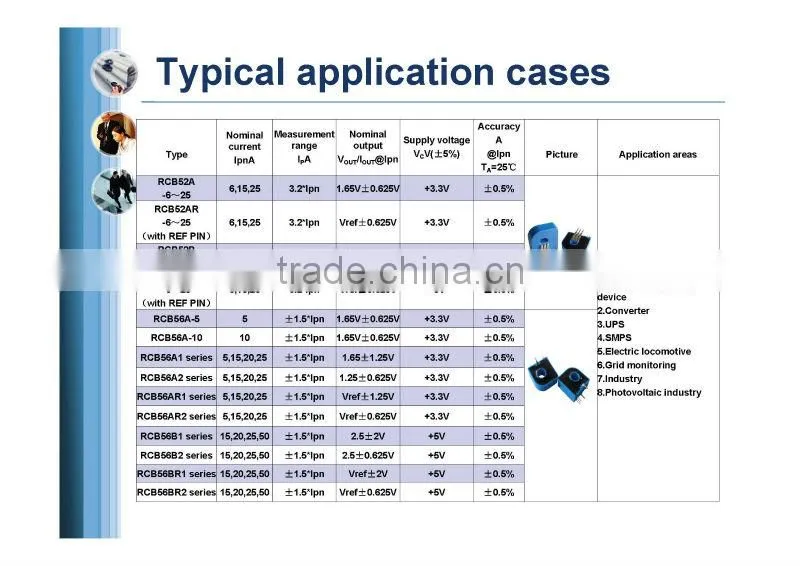

Application cases

cost effective and reliable Hall effect DC AC pulsed current transducer / sensor RCB59C-300 (Ipn=300A) for circuit monitoringWind turbine power system

cost effective and reliable Hall effect DC AC pulsed current transducer / sensor RCB59C-300 (Ipn=300A) for circuit monitoring

Electricity and power supply field
