Automatic CNC Angle Line Marking Punching Cutting for Iron Tower

FOB Price

Negotiable / Set

1 Set(Min. Order)

Port Qingdao
Payment TermsT/T Money Gram

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Shandong, China		Brand Name	Solterra
Model Number	APL-2020		After-sales Service Provided	Engineers available to service machinery overseas

Product Description

Specifications

1.Typing punching cutting automatically
2.CNC and servo motor
3.high efficiency stady and precision
4.CE certificate

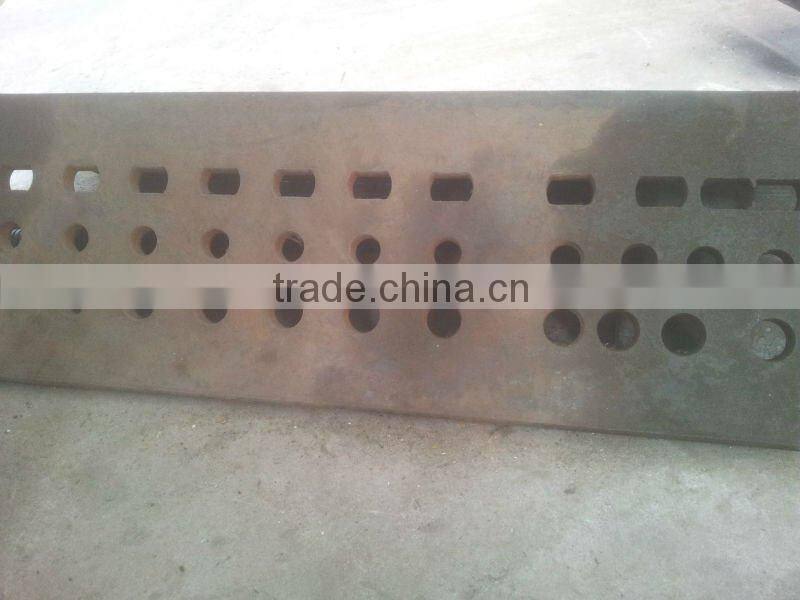

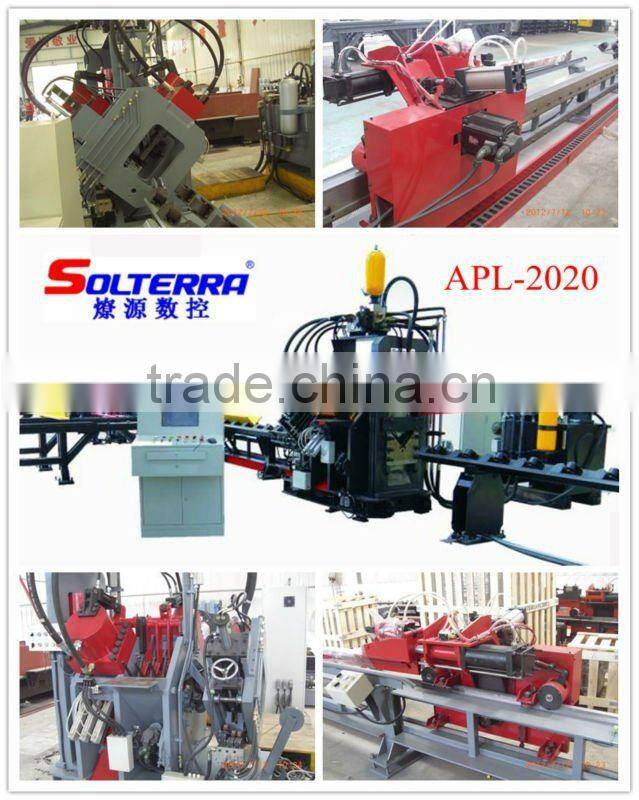

CNC Angle Line : marking punching cutting line for iron towers

Features

The production lines professional automatic equipment for marking,punching and shearing of angle steel of electric power and telecommunication angle steel tower. Processing size: angle steel type L63x63x4~L200x200x20,length within 14M. It includes 6 units material—loading unit, feeding unit, main body, finished products conveyor unit, hydraulic power unit,and electric control unit..

Advantages

1) Good rigidity,compact structure, optimal workpiece arrangement,and high using rate of workpiece.

2) Marking, punching and shearing are automatically operated with high efficiency.

3) Friendly computer interface can show workpieces figure, easy for operation.

4) Easy programming,only need to input the data of workpiece,including size,hole diameter stadia accuracy and quantity. Or use the programming data created by lofting software.

5) Many solutions are adopted to resolve problems such as infeeding difficulty and stadia accuracy error which are caused by angle steel deformation

6) With CNC and servo motor achieves it high efficiency and stable working accuracy.

7) The key hydraulic pneumatic and electrical elements are all imported from Germany, Japan, Italy, South Korea etc.

Main Technical Specifications

Model	APL-2020	APL-1412
Angle size	63×63×4~ 200×200×20	40×40×3~ 140×140×12
Max. punching capability Diameter×Thickness	Φ26×20	Φ26×20
(KN)Nominal punching force	1000	600
(KN)Marking force	700	700
(KN)Shearing force	1400	900
(m)Max. length of workpiece	14	12
(m)Max. length of finished product	10	10
No. of punches of every side	3	2
No. of character group	4	4
(mm)Dimensions of character	14×10×19(According to demands of customers
Number of CNC axis	3
Shearing mode	(Doubel-blade Shearing)
(m/min)Feeding speed	30	60
Processing precision	Meeting the requirement of GB2694-81
Programming model	Keyboard enter, RS232interface enter, CAD
(m)Overall dimensions	32×7.5×2.35	25×6.5×2.2
(t)Net weight	20	12
