Specifications
1.Servo control system2.Auto welding cleaning transmiting of the frame
3.More than 100types profile processing
4.ISO CE

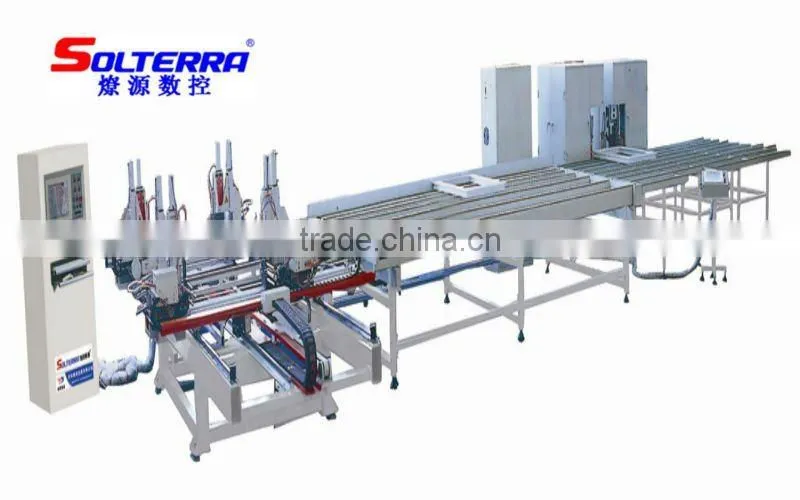

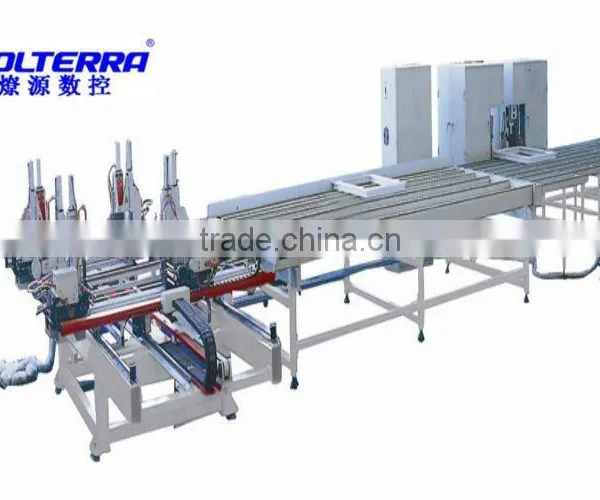

Windows Machine--Automatic welding cleaning machine for PVC windows
Features and functions:
Features auto welding and cleaning
1. For auto welding and cleaning,transmitting of the frame.
2. Servo control system, and industrial PC with windows system.
3. Communicate data with the control computer; auto program and auto select processing programs.
4. Read data from bar code.
Features of welding unit
1. Horizontal structure arrangement for the stable running,,
2. High processing precision and stability,
3. Automatic size compensation,
4. Easy-change for special fixture, increased corner strength
5. Steel stand and low center of gravity ensured stable welding
Features of cleaning unit
1. Equipped with high efficiency servo-drive system and 2 group two-axis units, ensured high speed cleaning
2. Automatic profile recognition, and automatic processing step change
3. High efficiency and high quality cleaning
4. Not need change tools, more than 100 types profile processing is possible
5. Arc and straight line processing, good cleaning appearance
Transfer unit and manipulator
1. Transfer unit used for outputting the finished frame/sash
2. Manipulator used for frame/sash feeding-into position
Technical parameter:
Air pressure |
0.5~0.8Mpa |
Air Consumption |
500(L/Min) |
Input Voltage |
3N~50HZ 380V/220V |
Input power |
14.5kw |
Processing profile height |
30~130mm |
Processing profile width |
30~120mm |
Welding range |
500*650 1800*3000mm |
Overall dimension |
13000*5500*1900mm |
Weight |
5000kg |
