UPVC Windows Making Machine- CNC Welding Seam/Corner Cleaning Machine

UPVC Windows Making Machine- CNC Welding Seam/Corner Cleaning Machine thumbnail-1
UPVC Windows Making Machine- CNC Welding Seam/Corner Cleaning Machine thumbnail-2
UPVC Windows Making Machine- CNC Welding Seam/Corner Cleaning Machine thumbnail-3
UPVC Windows Making Machine- CNC Welding Seam/Corner Cleaning Machine thumbnail-4
UPVC Windows Making Machine- CNC Welding Seam/Corner Cleaning Machine photo-1
UPVC Windows Making Machine- CNC Welding Seam/Corner Cleaning Machine photo-2
UPVC Windows Making Machine- CNC Welding Seam/Corner Cleaning Machine photo-3
UPVC Windows Making Machine- CNC Welding Seam/Corner Cleaning Machine photo-4
US$ 2,000 - 28,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Shandong, China
Brand Name:
Solterra
Contact Supplier Request Quote Chat Now
Jinan Liaoyuan Machine Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Place of Origin Shandong, China
Brand Name Solterra
Model Number SQJA-CNC-120
Feature Critical Cleaning / Residue Free
Fuel Electric
Certification CE, Other, CE, ISO
Use Other, Corner cleaning
Cleaning Type High Pressure Cleaner
Industry Used Other, PVC windows
Material Plastic
Dimension(L*W*H) 1570*2670*2070MM
Power(W) 1.4KW
After-sales Service Provided Engineers available to service machinery overseas

Specifications

1.upvc windows making machine
c corner cleaning machine
3.since 1991
4.Oversea branch office
5.ISO SGS,12 month warranty

uPVC windows making machine- CNC Welding Seam/Corner Cleaning Machine



uPVC windows making machine- CNC Welding Seam/Corner Cleaning Machine

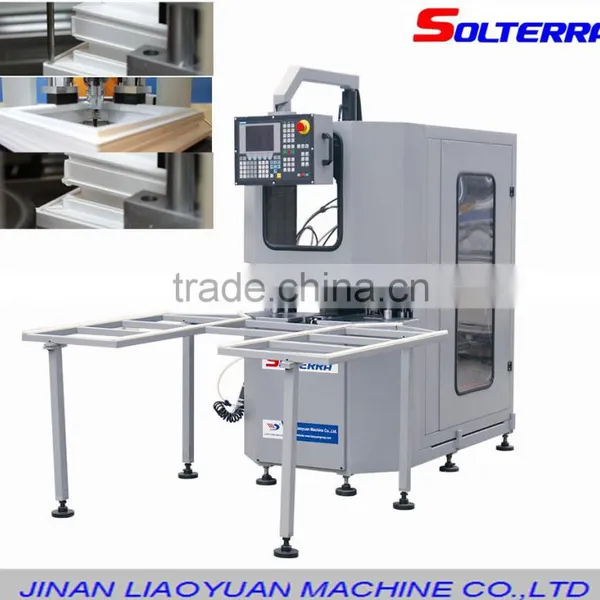

CNC Corner Cleaning Machine SQJA-CNC-120

Features and functions
1. For cleaning profiles’ welding seam
2. High processing precision due to size error compensation function
3. Imported servo-drive system, computer control system, solenoid valve, air source disposer and so on ensured reliable performance and ling using life.
4. Can store many program for various profile processing.
5. Can clean multi-shaped welding seams.
6. Two axis computer control system.
7. Can clean outside vertical surface, up/bottom welding seam and seal rubber groove part.
Technical parameter:

Input voltage

380V 50HZ

Input power

1.4kw

Milling cutter rotary speed

2800r/min

Air pressure

0.5-0.8Mpa

Air consumption

80L/min

Profile height

30-120mm

Profile width(Max)

20-120mm

Overall dimension

1570*2670*2070mm

Weight

500kg

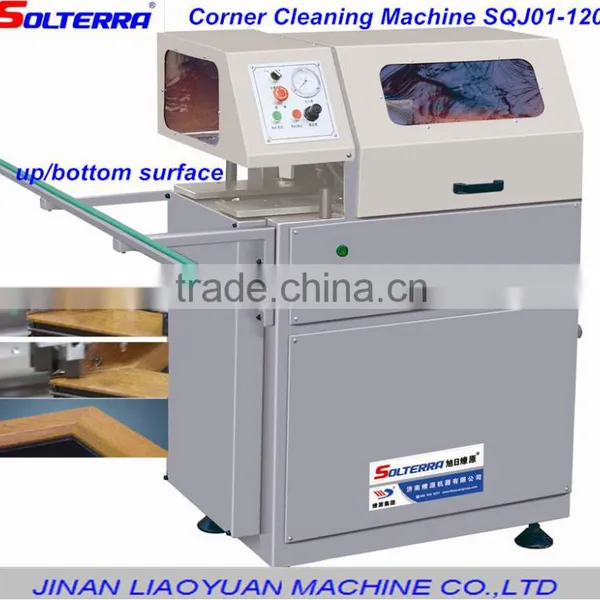

 Corner Cleaning Machine SQJ01-120


Equipment Features:

1. Cleaning the up/bottom surface and the external corner.

2. Special cutter to clean the external corner.

3. Need to change the cutter to clean different kinds of profiles.



Main specification and Technical Parameter:

Air Pressure

0.5-0.8MPa

Air Consumption

15L/min

Input Voltage

220V/50Hz

Input Power

1.1kW

Milling Cutter Revolution

2800r/min

Profile Height

25~90mm

Profile Width

25~120mm

Overall Dimension

1050x670x1370mm

Weight

150kg

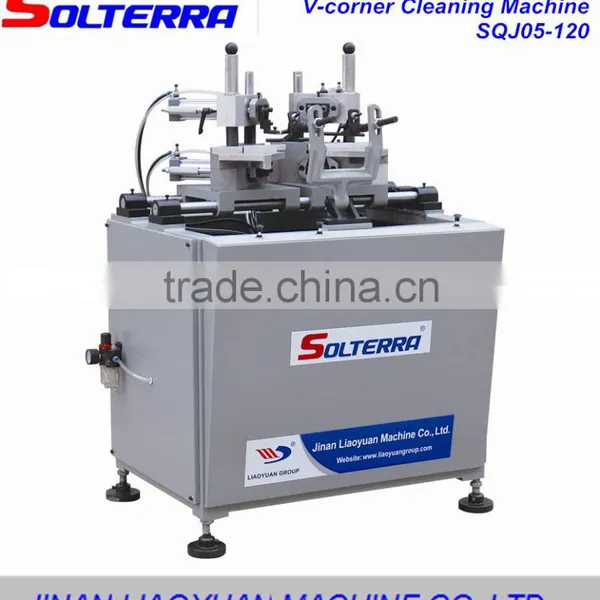

V- Corner Cleaning Machine SQJ05-120


Equipment Features:

1. Special for mullion V-shaped welding and cross welding cleaning.

2. Special centering device for easy adjusting.

3. Reliable clamping and high processing quality.

4. The both-hands operation ensures the operator’s safety.



Main specification and Technical Parameter:

Air Pressure

0.5~0.8MPa

Air Consumption

15L/min

Profile Height

0~80mm

Profile Width

0~120mm

Overall Dimension

860x650x1120mm

Weight

250kg

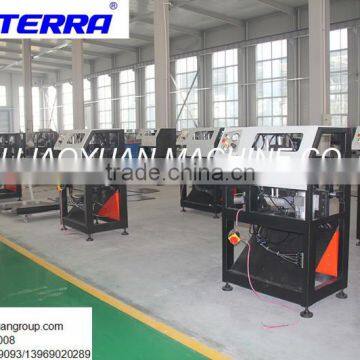

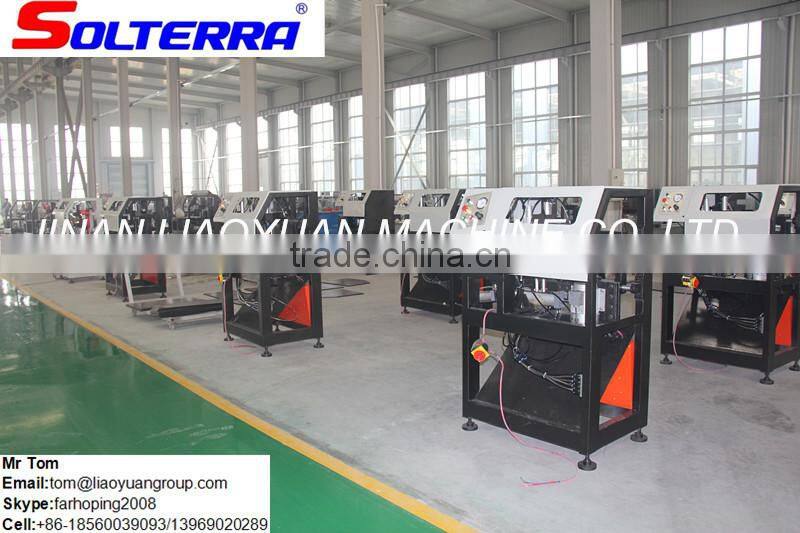

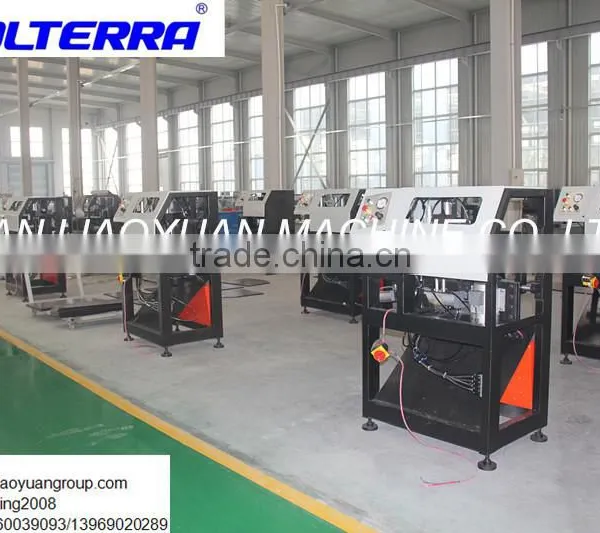

Machine in Stock
uPVC windows making machine- CNC Welding Seam/Corner Cleaning Machine

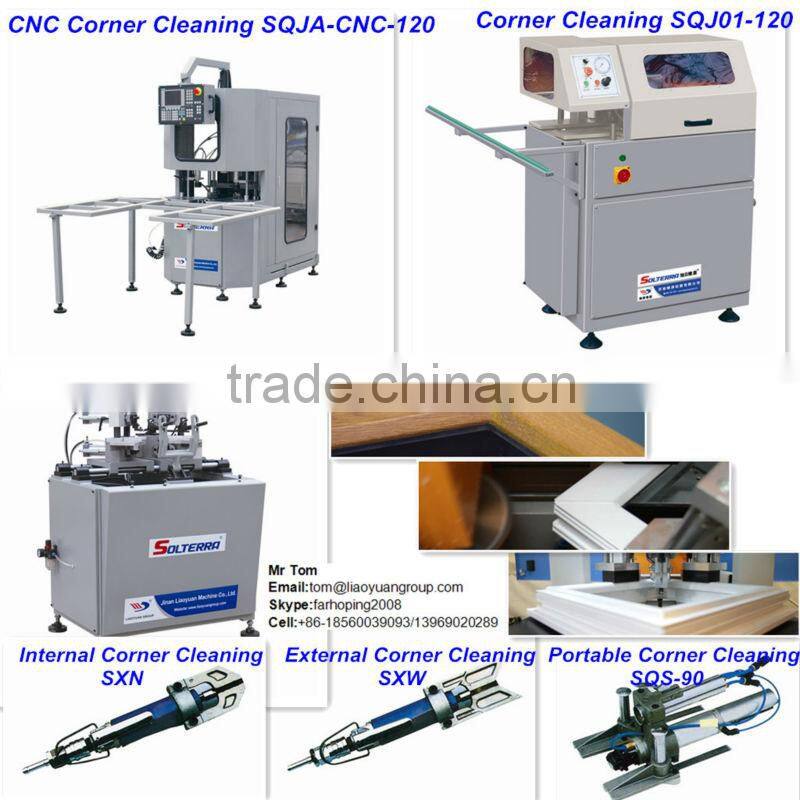

The related machines recommended for upvc windows and doors making





Present at fair

uPVC windows making machine- CNC Welding Seam/Corner Cleaning Machine

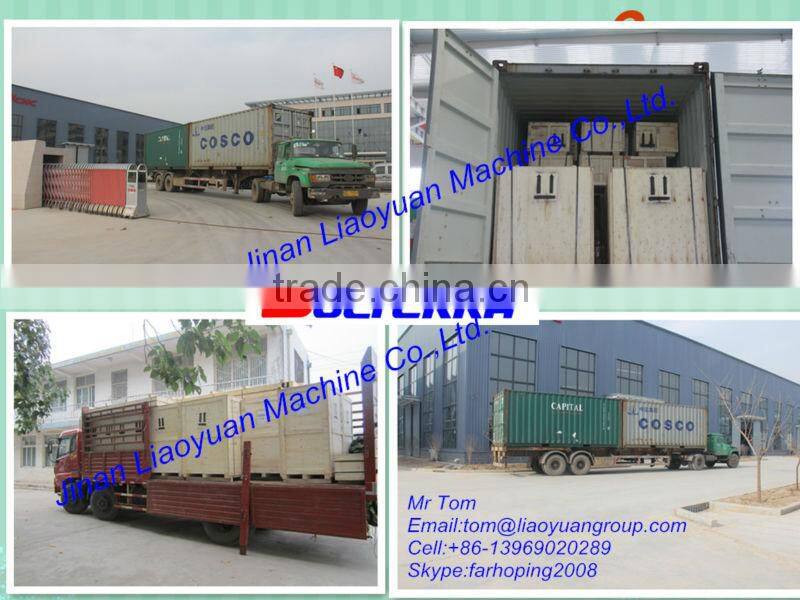

Loading and Shipment

uPVC windows making machine- CNC Welding Seam/Corner Cleaning Machine
