Single Blade Cutting:CNC Angle Marking Punching Shearing Production Line

Specifications

1.single blade cutting
2.Main parts are all imported
3.PLC control servo motor
4.CE certificate ISO
5.Branch office in India



Popular equipment !Single blade cutting :CNC Angle marking punching shearing line for power transmission towers



Features

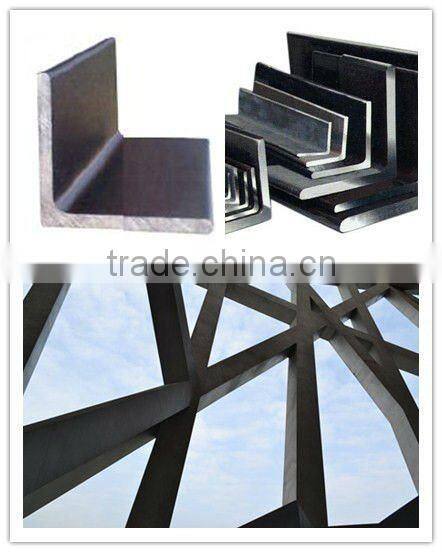

1) Versatile triple tooling on each side. The angle bar can be processed into finished angle in one time as passing through the machine.

2) Single-blade shearing

 3) The machining process is numerically controlled and the operation is very convenient. It can achieve automation, high precision, multi-species and mass production.

4) The upper computer adopts friendly compute r interface which is easy to operate. It can accept certain processing program which is made by special software. And it also supports manual programming.

Advantages

1) Versatile triple tooling or each side which can install three kinds of punches with different diameters. Three sets can move together controlled by CNC which is to change the punching stadia.

 2)Single-blade shearing ensures smooth cutting section and lowers the consumption of material.

3) Marking unit adopts a closed frame with good rigidity. Four sets of character boxes are fixed on the marking unit which can be selected by program. Marking stadia can be set at will.

4) CNC infeed carriage is driven by servo motor. The photoelectric encoder feeds back the information. Closed loop control ensures high positioning precision.

5) Hydraulic system mainly serves for punching, marking pressing and selecting of character boxes.

 6) Control system consists of upper computer, CNC system, servo motor, PLC and outside detection switch etc. Proceeding program can be generated automatically as long as the operator inputs the dimensions of workpiece. The program data can also be made by lofting software and be stored, called up, displayed and communicated as per the workpiece number.

Main Technical Specifications



Model	APLD-1412
Angle size(mm)	56×56×4--140×140×12(Q420)
Max. punching capability(D×T mm)	25.5×12
Nominal punching force(kN)	960
Nomimal marking force(kN)	1040
Nominal cutting force(kN)	1800
No. of character groups	4
No. of characters per group	15
Character size(mm)	14×10×19
Stadia adjustment(mm)	20-110(stepless adjustable)
No. of punches on each side	3
Max. feeding speed(m/min)	40
No. of CNC axis	3
Overall dimensions(m)	26×7×3
Total power(kW)	31.4
Weight(t)	16



The picture of the machine



After sales service :



1. The seller will supply free online technical service via email, fax, telephone etc.

2. The seller will arrange free training program for the buyer’s staff at the seller’s factory in China, the buyer should

 bear his staff’s personal expense in China (i.e. air tickets, allowance, hotel and accommodation …). The training

program will last around 1 week.
