Factory price clay brick making machine with high quality
1. Brief introduction for brick making machine:
QT6-15B concrete brick makingmachine is the new product that designed and developed by our
company, it adopts platform vibration system and mould system. enforced feeding material, soil driver,
and full-computer control work theory.According to different request and different raw material of the
clients, QT6-15B concrete brick making machine can form all kinds of simple block production line
(self-provided pallet ,zl40 mechanical loader, forklift) respectively with SN100 cement silo ,pl1200
batching machine,JS500double-horizontalshafts forced type concrete.
2. Technical Parameters of the brick makingmachine:
Dimension of host machine |
2850×2200×2850mm |
Moulding area |
800×600mm |
Moulding period |
15-20S |
The size of the pallet |
940×830×20/25mm |
Weight of the host machine |
6T |
Voltage |
380V |
Host machine power |
32KW |
Vibration force |
45KN |
Capacity |
91.55KVA |
Mixer model |
JS500 |
General water Consumption |
8T/every day |
3. QT6-15B Production Capacity and brick samples, pls refer to
Size(LxWxH):mm |
Pcs/Mould |
Pcs/ Hr |
Pcs/ 8 Hr |
230X110X70 |
30 |
5400-6300 |
43200-50400 |
400X100X200 |
12 |
2160-2880 |
17280-23040 |
400X150X200 |
8 |
1440-1920 |
11520-15360 |
400X200X200 |
6 |
1080-1440 |
8640-11520 |
400X250X200 |
4 |
720-960 |
5760-7680 |
Paver:200X100X60 |
24 |
3740 |
29920 |
Paver:200X163X60 |
9 |
1450 |
11600 |

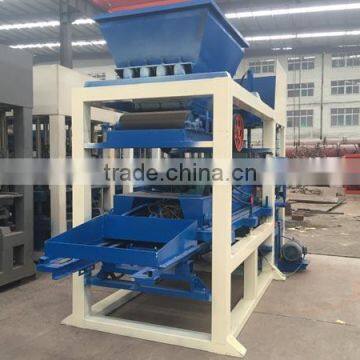

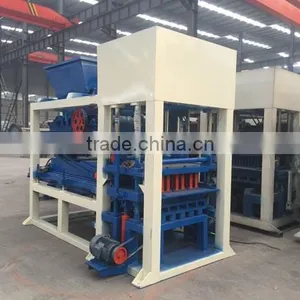

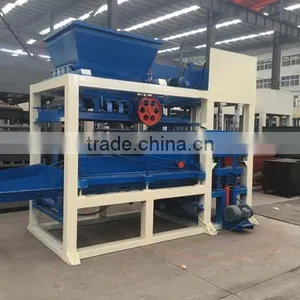

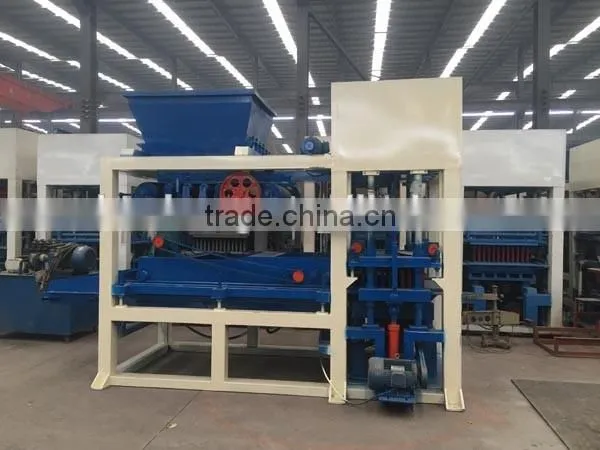

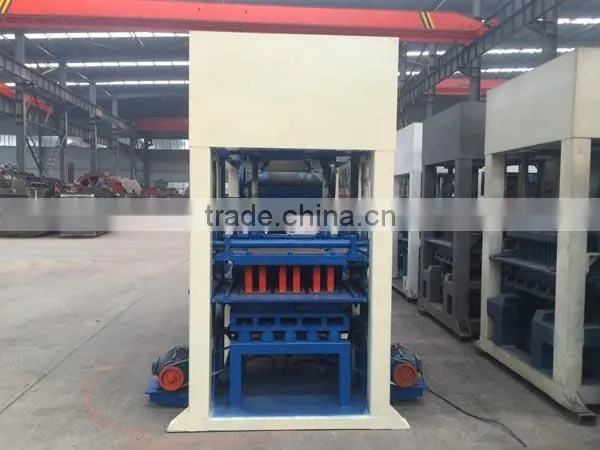

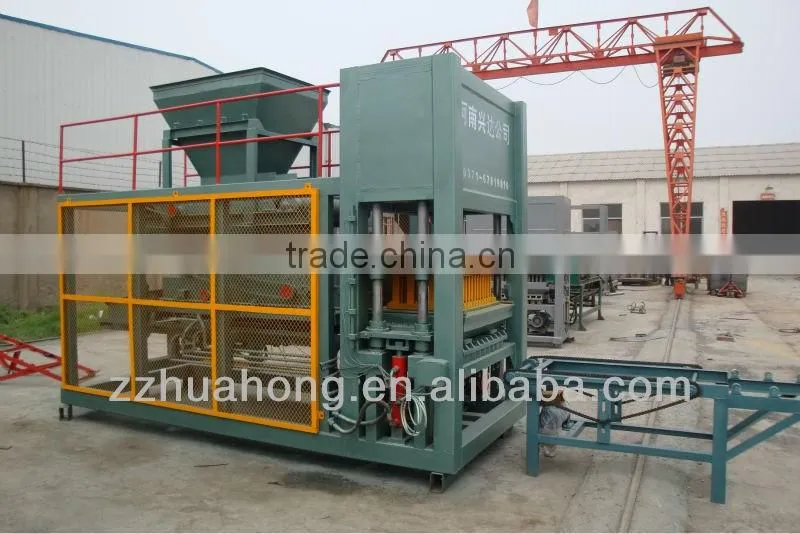

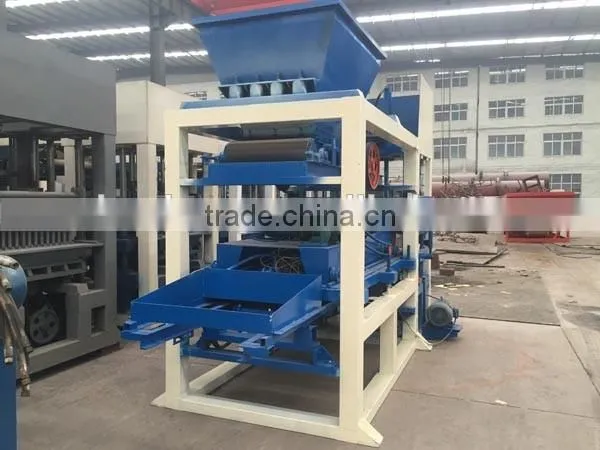

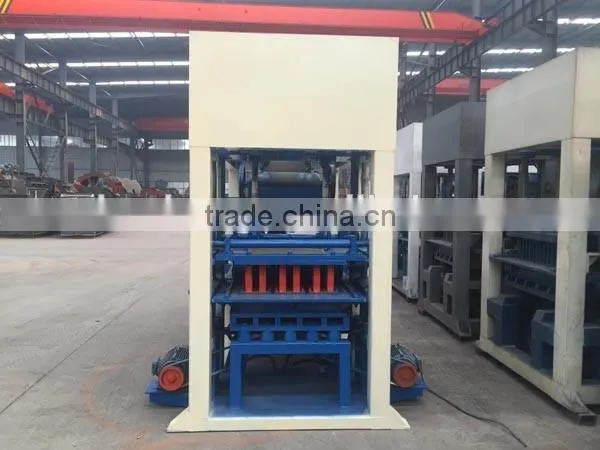

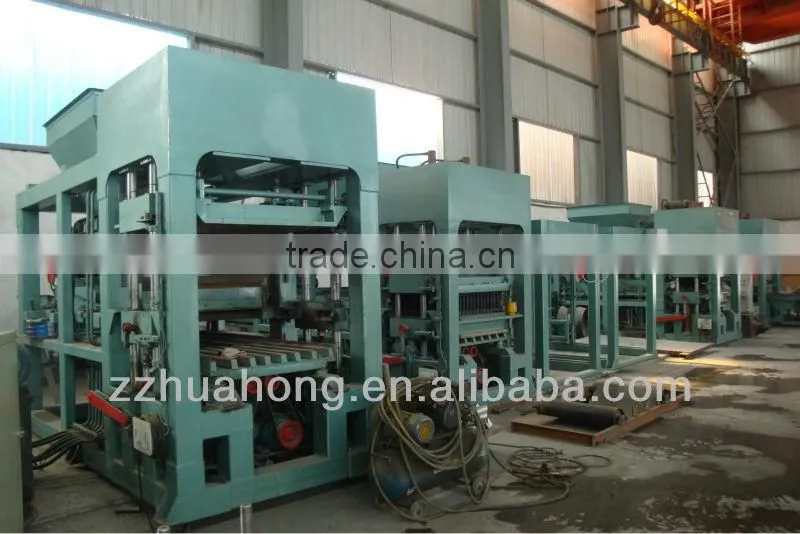

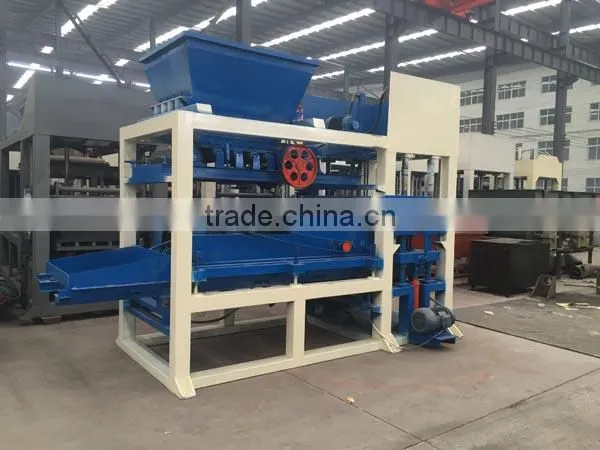

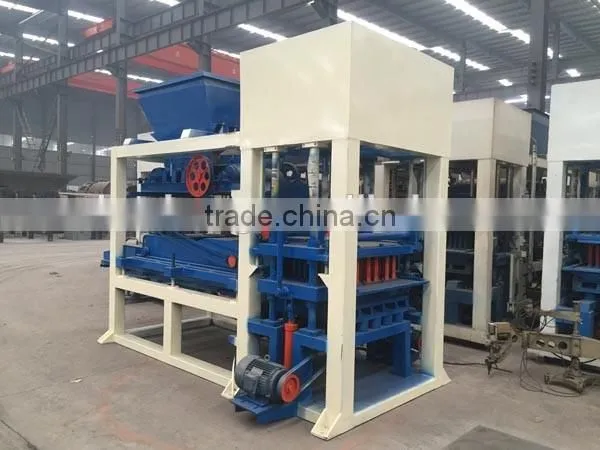

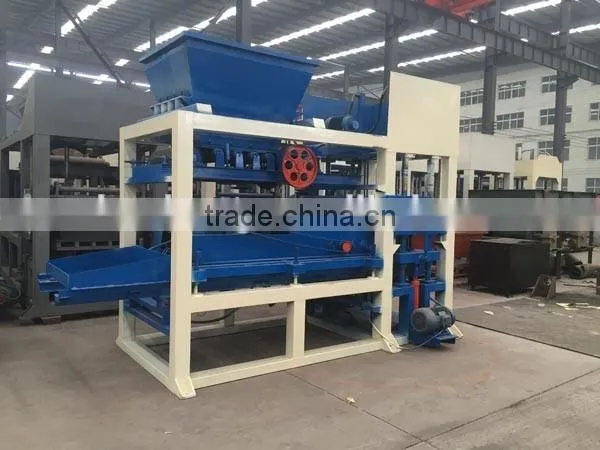

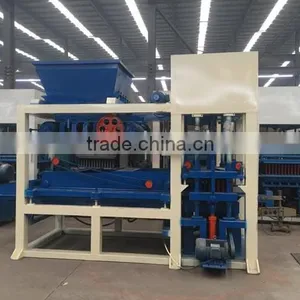

4. Photos for the Brick making machine:

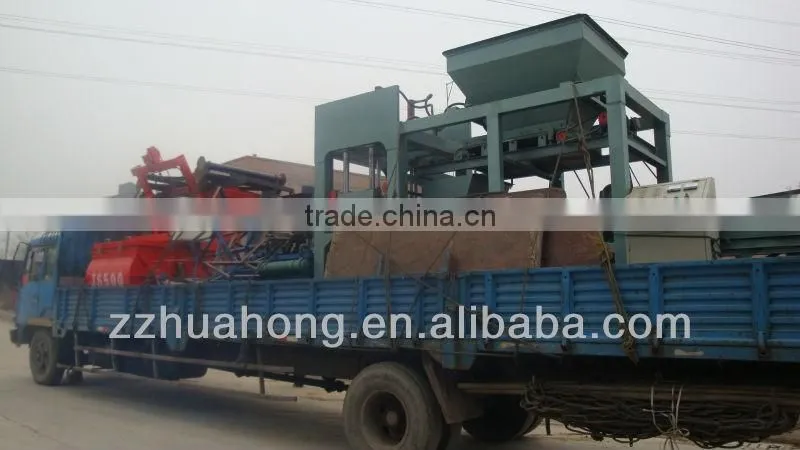

| Packing details | standard export packing; nude packing, wood case package |
| Delivery time | within 5 - 25 days after order confirmed |
- Sales manager cell number is 24hours available.
- Payment terms is flexible.
- Design the product according to your technical request.
- Our engineer is willing to help fixing the crane for you.
- Diversity products.
- Delivery on time.
- Warranty: 12 months.
-
Trade Assurance Service.(Trade Assurance is a free payment protection service for buyers.
The service is offered by participating suppliers, and is designed to protect your payment if
your order is not shipped on time, or if the pre-shipment product quality (optional) does not
match the terms agreed on your contract.
Your payment is protected up to 100% of an amount - agreed between you and the supplier - called the Trade Assurance Order Amount.)
Zhengzhou Huahong Machinery & Equipment (Group) Co., Ltd. is located in National Hi-Tech Industrial Development Zone of Zhengzhou City, Henan Province, Our products passed the ISO9001 international quality system certification. It has won the glory of provincial superior enterprise. Huahong company's quality of products have been in a leading and dominant position in machinery industry of China. Its high-quality products and first-class services were also have been praised by overseas and domestic customers.
Cutomer Visiting:
Contact Person: Linda
Skype: huahongmachine05
Tel/WhatsApp: +86 15093303198
