Home > Products > Manual/ Movable Brick Machine > Hand press block making machine QTJ4-50
Hand press block making machine QTJ4-50
- 1000 Set / Sets per Month
- Depend on condition
- T/T L/C D/P D/A Credit Card PayPal
- low cost high profitable QTJ 4-60 zenith concrete block machine
- QTJ4-60 hollow brick machine, hand press brick machine
- China Construction Machinery.QTJ4-60 concrete brickmaking machine
- Latest product. QTJ4-60 concrete manual hollow block maker
- low investment QTJ4-60 small scale concrete block making machine
- QTJ4-50 small brick machine, concrete block machine maker
Product Details
Condition: | New | Type: | Other, Manual brick making machine | Brick Raw Material: | Other, Cement,Sand,Crushed stone,Construction wasted matter,Pearl rock,etc. |
Processing: | Brick Molding Machine | Method: | Other, Vibration | Automatic: | No |
Capacity: | 2300-12000/8hrs(for various brick) | Place of Origin: | Guangxi, China | Brand Name: | SHENTA MACHINE |
Model Number: | QTJ4-50 | Voltage: | 308V | Power: | 9 KW |
Dimension(L*W*H): | 1480x930x2100mm | Certification: | ISO, CE, ect. | Warranty: | one year |
After-sales Service Provided: | Engineers available to service machinery overseas |
Packaging Details
Standard seaworthy packing
Product Description

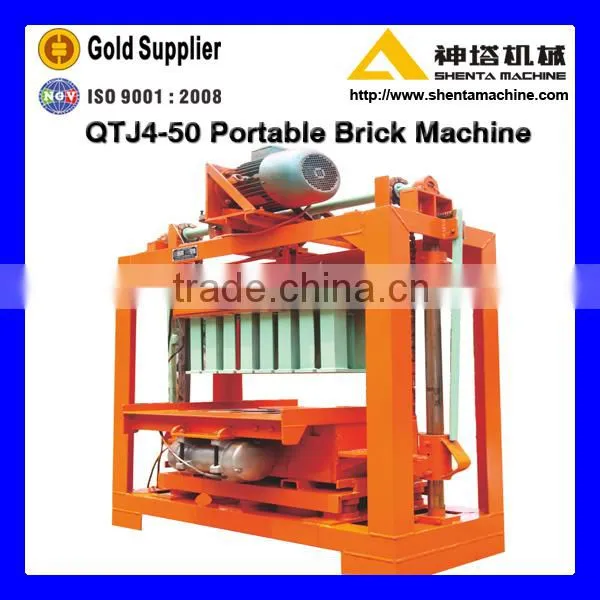

Hand press block making machine QTJ4-50
1. Characteristic of hand press block making machine
QTJ4-50 is the semi-automatic brick machine to meet the market demand, it is all mechanical transmission, automatic pallet load and concrete load, has the advantage of compact structure, reliable operation, very low malfunction rate, and easy maintenance and transportation, utilize the mould vibration technology to form the excellent shape, dense frame and high compressive strength brick, with fewer cement consumption.
By changing different mold, the QTJ4-50 can produce different wall brick, porous brick and cement solid brick, it can meet the brick requirement of small construction engineering, is the best selection of small scale brick factory or mobile brick factory.
2. Technical Specification hand press block making machine
Outside Dimension (mm) | 1480x930x2100 | Operation Cycle (s) | 50 |
Main Machine Weight (Ton) | 1.5 | Vibration Frequency (rpm) | 4300 |
Power Consumption (Kw) | 13.5 | Vibration Force (Kn) | 30 |
Pallet Dimension (mm) | 840x450x60 | Vibration Power (kW) | 9 |
3. Theoretical Productivity
Brick Size | Blocks/Mould | Blocks/Hour | Blocks/Shift | Remark |
Hollow Brick (390x190x190mm) | 4 | 288 | 2,304 | |
Porous Brick (240x115x90mm) | 9 | 648 | 5,184 | |
Solid Brick (210x60x105mm) | 21 | 1,512 | 12,096 |
4. Brick Making Moulds

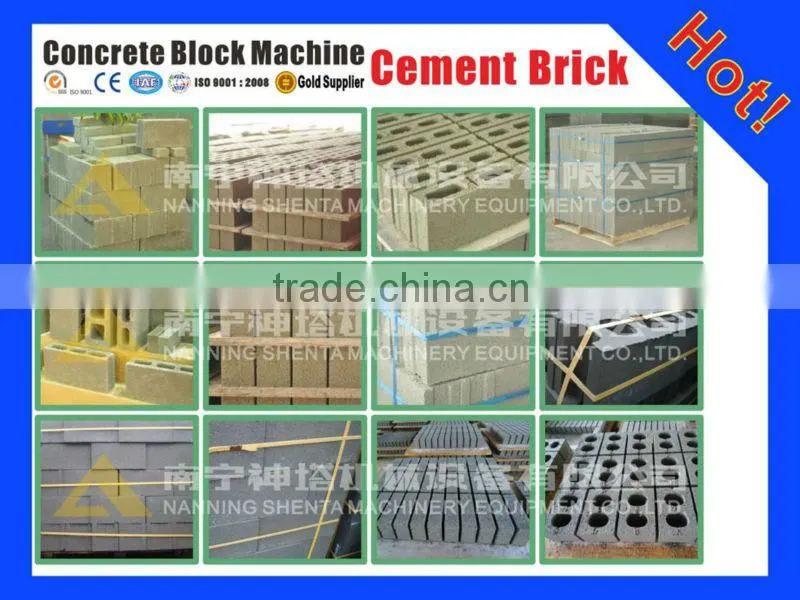

5. Brick Samples
6. Bricks Made by Our Machine
7. Our Machine on Exhibition
8. Our Achievement
9. Company Introduction
Nanning SHENTA Machinery Equipment Co., Ltd, lies at the beautiful “Green City of China” – Guangxi Nanning, is one of the first group of the manufacturer specialized in research, development, fabrication of the concrete block machine, mixing machine and other construction material machine in China, pass the ISO 9001:2008 Certificate. We uphold the philosophy “advanced technology, nice craft, strict supervision and perfect service”, provide customer the excellent and reliable equipments for the new and eco-friendly construction material industry.
SHENTA Machine locate in the south of China, far from the frontier of Vietnam only 200km, is the closest Brick Machine Manufacture from ASEAN, with the advantageous geographical location and transportation, we build the solid foundation with the ASEAN country to develop the long-term and stable cooperation.
SHENTA Machine’s plant occupy 40,000m2 area, include 20,000m2 workshop, 210 workers team, 20 administrators and 15 technicians, produce the brick production lines and machine more than 500 units per annum, sell in domestic and export to South-east Asia, USA, Afric and Middle East region.
Welcome to contact Ms. Candy for more information of hand press block making machine .
Shaping the future together!
Company Profile
Nanning SHENTA Machinery Equipment Co., Ltd, established in 1973, is the earliest professional and leading manufacturer of concrete block making machinery. After decades of hard working, we have developed into the high-tech enterprises which integrate the research & development, manufacturing, sales and service. SHENTA factory covers an area of 40,000 square meter, with senior engineers more than 20 people and all kinds of technician more than 200 staff. With an annual production capacity of 500 sets.
SHENTA devoted great care to market planning and development, we have earned ISO9001-2008 Quality Management Certificate in 2008, and awarded the title of "valuing contract and keeping promise" for many years. With the advanced technique, sophisticated technology, strict supervision and perfect service, SHENTA has become the high quality supplier in new building material field.
SHENTA not only distributed in all around China, but also exported to Southeast Asia, Africa, and Oceania etc.
Adhering to the philosophy of "Credit & Honest, dedication & devotion, pragmatism & practice, Innovation & Creation", SHENTA stride forward to construction equipment enterprise of specialization, scale and internationalization, provide strong support of equipment for the new building material, building the solid future for you.
