Product Details
| Place of Origin | Guangdong, China | Brand Name | DYP | |
| Model Number | DYP-WB001 | Usage | Other, Intelligent Motion Sensor Switch | |
| Theory | Other, Microwave Sensor | Output | Digital Sensor |
Product Description
Specifications
This microwave motion sensor with 5.8GHZ high frequency, and was widely used in LED light,energy saving lamp,exhaust fan,etc.Description:
This microwave PIR motion intelligent switch, which operating frequency is up to 5.8GHZ. It is used the Doppler principle, adopted microwave and microprocessor technology designed to a newborn intelligent product. It could detect the active objects accurately, when the object to be tested enters the detection range, this switch could judge automatically that whether the object fits the needed or not and then begin to work. So that to achieve to the intelligent control for the target load.
Features:
1 Strong anti-interference and reliability, security and convenience;
2 Features of intelligent detection and delay time
3 With photosensitive diode control: According to the external light intensity to control the switch is working or not, so that achieve to energy savings;
4 Wide application range: Could be used in Incandescent lamp (bulb),energy saving lamp, LED light, electronic fluorescent lamp, exhaust fan and other kinds of load;
Electrical parameters:
Operating Voltage | 220V/AC |
Frequency | 50Hz |
Load Power | 500W (Max.) @ Load for the incandescent lamp; 200W (Max.) @ Load for the fluorescent lamp; |
Operating Temperature | -20°C~ +60°C |
Ultimate-use Temperature | -35°C~ +75°C |
Microwave Frequency | ISM 5.8GHz |
Mounting Height | 2m~3.5m (suggest the mounting height is 2.5 m ) |
Detection Distance | 1m~12m (it’s adjustable) |
Delay time | 8sec~30min (it’s adjustable) |
Light-operated Control | Could be set up work in daylight or night |
Mounting Way | Indoor Mounting: ceiling installation |
Detection Angle | 360° |
Consumption | Less than 10mw |

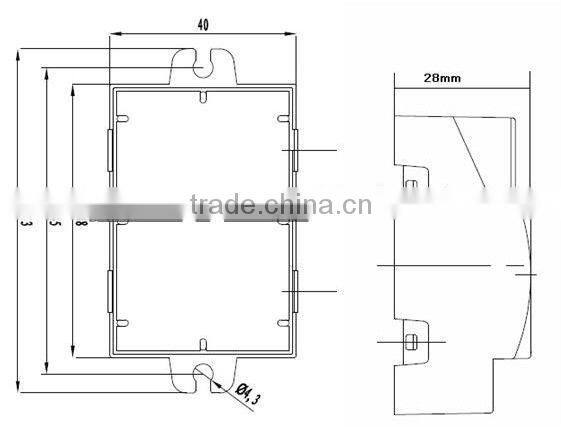

Dimensions:
G.W: 55g
