Specifications
It applied to all kinds of auto-door sensor switch and with features of high sensitivity and strong reliability.Feature:
1) Applied to all kinds of auto-door sensor switch, which could be induced to the human body movement and then triggered the automatic door opening and closing;
2) With the feature of high sensitivity and strong reliability ;
3) The detection distance and range are adjustable;
4) Installation height is 2m – 4m;
Specification:

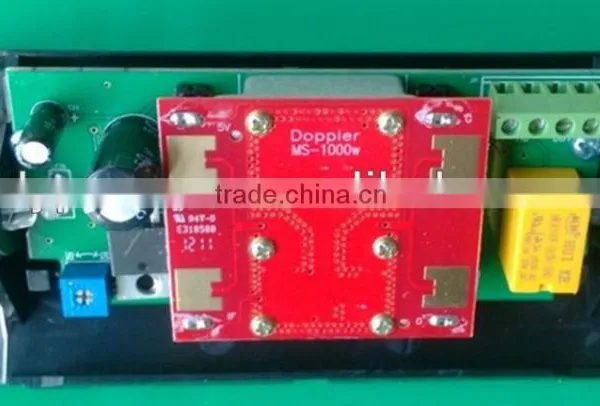

1) Detection principle:Doppler microwave radar principle;
2)Transmitting frequency: FCC X-band (10.525GHz);
3) Emission density: less than 5mW/cm2;
4) Detection area (typical value): 3.5m X 3m (W X L);
5) Detection mode:motion patterns ;
6) Sensitivity adjustment:adjusting potentiometer;
7) Operating temperature: -25°C ~ +65°C;
8) Anti-interference performance: EMC, which meets up with the standard of 89/336EEC;
9) Supply voltage (DC): 12~24V DC;
10) Output: standard relay output:
Max. junction voltage: DC35V;
Max. junction current: 1A;
Output hold-up time: 1s;
11) Weight: 250g;
