Specifications

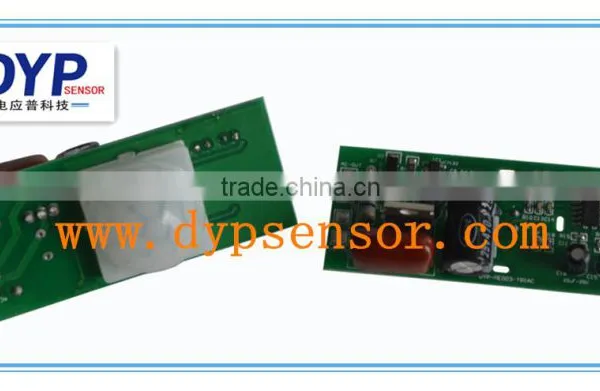

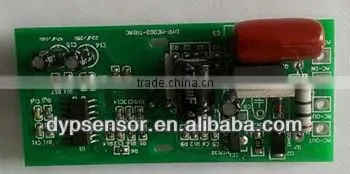

This human detector sensor with AC220V, high sensitivity and good stability,suitable for the field of security, toy,etc.This human detector sensor with AC220V, high sensitivity and good stability, suitable for the field of security, toy, automation control etc. .
Features:
1 Infrared sensor with control circuit board;
2 High sensitivity and good stability;
3 Detecting distance is up to 7m;
4 Suitable for the field of security, toy, automation control etc.;
Specifications:
1 Working voltage range: AC220V;
2 Quiescent current: Less than 1mA ;
3SCR output: When you moving into detecting zone it will be output 220V,leaving detecting zone will be output 0V ;
4 Detection distance: less than 7 m ;
5 Detection angle: less than <130 cone angle;
6 Delay time:30s (could be customized,range 5s - 200s )+-3%;
7 Blockade time: 2.5S (default);
8 Photosensitive setting: Use CDS;
9 Working temperature: -20 - + 50 degree;
10 Product weight: 14.20g;
11 PCB size: 67 * 30 * 12 mm;
