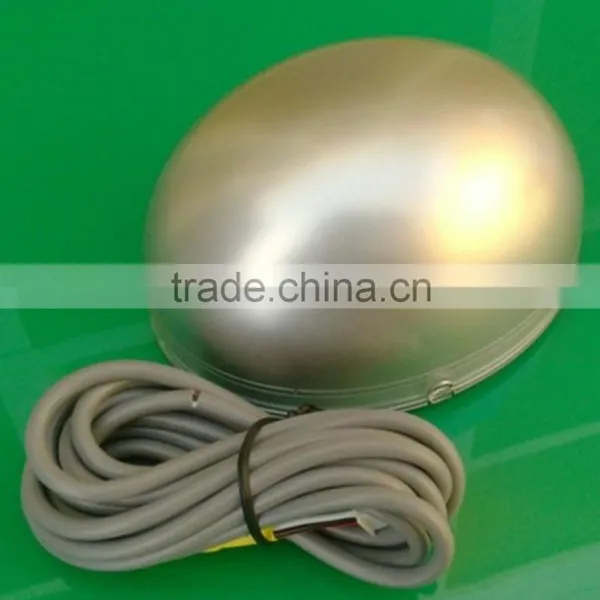

10G Automatic Door Microwave Motion SensorMicrowave Door SensorMicrowave Motion DetectorSensorsMicrowave Motion Sensor for Door

Specifications

Feature:

1) Applied to all kinds of auto-door sensor switch, which could be induced to the human body movement and then triggered the automatic door opening and closing;

2) With the feature of high sensitivity and strong reliability ;

3) The detection distance and range are adjustable;

4) Installation height is 2m – 4m;

Specification:

1) Detection principle:Doppler microwave radar principle;

2) Transmitting frequency: FCC X-band (10.525GHz);

3) Emission density: less than 5mW/cm2;

4) Detection area (typical value): 3.5m X 3m (W X L);

5) Detection mode:motion patterns ;

6) Sensitivity adjustment:adjusting potentiometer;

7) Operating temperature: -25°C ~ +65°C;

8) Anti-interference performance: EMC, which meets up with the standard of 89/336EEC;

9) Supply voltage (DC): 12~24V DC;

10) Output:  standard relay output:

   Max. junction voltage: DC35V;

   Max. junction current: 1A;

   Output hold-up time: 1s;

11) Weight: 250g;
