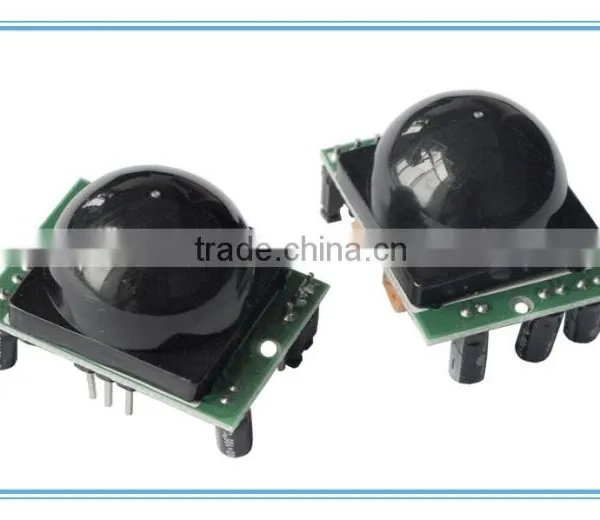

Pyroelectric Infrared PIR Motion Sensor with black lens PIR Motion Sensor PIR Motion detectorPyroelectric Infrared Sensor Module
US$ 2.14 - 4.53
/ Piece
1000 Pieces(Min. Order)
- Shenzhen
- Credit Card
You May Like
-
AC220V Infrared PIR Motion Sensor Detector ModuleIntelligent SwitchIR SensorInfrared Detector ModuleIR Detector ModulePIR Sensor
-
Adjustable Human Body Infrared Motion Sensor ModuleMini Pyroelectric PIR Motion SensorTiny PIR Motion Sensor Detector Module
-
Passive Infrared Motion SensorMini IR Pyroelectric Infrared PIR Motion Human Sensor Automatic Detector ModulePIR Motion Sensors
-
SensorsLow Voltage Smart PIR SensorHigh Frequency Motion Sensor ModuleMotion Sensor for LightPIR Motion Sensing Movement Sensor
-
HotSmart PIR Motion SensorMotion Sensor for LightHigh Sensitvity Wide AngleSmart PIR Motion Sensor SwitchWired PIR Motion Sensor
-
PIR Sensor Module with RelayDC12V PIR Motion SensorsMotion Sensor for LightPIR Motion Sensor SwitchPIR DetectorSmart PIR Sensors
Product Details
| Place of Origin | Guangdong, China | Brand Name | DYP | |
| Model Number | DYP-ME003 (B) | Usage | Other, Security and Protection | |
| Theory | Other, Infrared Sensor | Output | Digital Sensor |
Product Description
Description:
1 Infrared sensor with control circuit board;
2 The sensitivity and holding time can be adjusted;
3 Detecting Range: Approx. 7m / 23 feet;
4 Detecting Angle: Less than 100 degrees;
5 Working Voltage Range: DC 4.5V- 20V;
6 Quiescent Current: Less than 50uA;
7 Level Output Voltage: High 3V / Low 0V;
8 Working Temperature: -15 to +70 degrees C;
9 Trigger Method: L unrepeatable trigger / H repeatable trigger;
10 PCB Size: Approx. 32mm x 24mm / 1.3 x 0.9 inch;
Features:
1 Small and light, it is easy to use;
2 Suitable for the field of security, toy, automation control etc. ;
