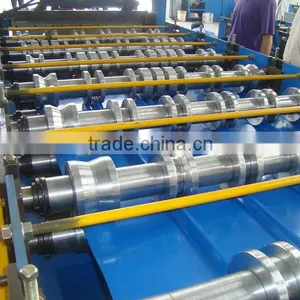

Help CenterMetal Roofing Cladding Decking Rollforming Machine
Related Products
-
Golden Supplier,high Quality Automatic Wall Roof Roll Forming Machine African MarketUS$ 24,000 - 28,000MOQ: 1 Set -
Metal Roofing Cladding Decking Roll Forming LinesUS$ 21,000 - 24,000MOQ: 1 Set
-
Golden Supplier,high Quality Automatic Wall Roof Steel Profile Roll Forming Machine African MarketUS$ 24,000 - 28,000MOQ: 1 Set
-
Golden Supplier,high Quality Automatic Wall Roof Roll Form Steel Profile Cold Roll Forming Machine African MarketUS$ 24,000 - 28,000MOQ: 1 Set
-
Golden Supplier,high Quality Automatic Wall Roof Roll Former Steel Profile Cold Roll Forming Machine African MarketUS$ 24,000 - 28,000MOQ: 1 Set
Specifications
High quality rollforming, metal rollforming lines, and cladding rollforming machine.High quality rollforming/
metal rollforming lines/
cladding rollforming machine
1. Components of Rollforming Line

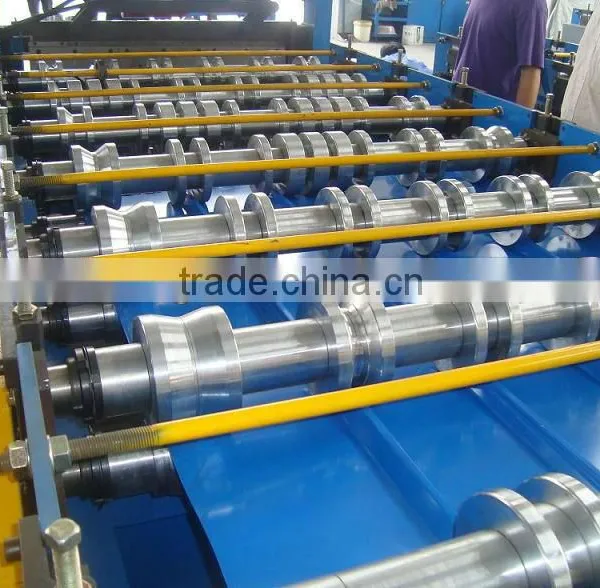

The roll forming machine consists of manual uncoiler, infeed guide, fixed position driven forming stations, cutting equipment, hydraulic station, control console, and manual unload product run out table.
2. Technical Parameters
Material specification |
Aluminum, galvalume, galvanized and pre-painted galvanized steel. |
Thickness |
0.3 mm to 0.7mm. |
Main motor power |
4 kw. |
Hydraulic station power |
3 kw. |
Feeding width |
1000/1200mm. |
Cover width |
820 /1025mm. |
Yield stress |
235Mpa(33KSI) ~ 345Mpa (50KSI). |
Roll forming Speed |
12 m/minute. |
Cutting Tolerance |
+/-2.5mm(length≤5000mm); +/-3.0mm(5000mm<length≤10000mm). |
Manual Uncoiler |
Max. Capacity: 5000kgs. |
Coil inner diameter |
508mm. |
Voltage |
As per customer’s request. |
Numbers of stands |
13 stands/stations/pairs. |
Type of cutting |
Roll-formed and length-set profile cutting. |
3. Material of Main Equipment
Roller Material |
High grade No.45 forged steel, coated with hard chrome. |
Active Shaft Material |
High grade No.45 carbon wrought steel,which can improve the integrated mechanic feature of the shaft. |
Electric Elements |
PLC control panel, transducer imported from Mitsubishi of Japan. Other elements are from famous suppliers of China. |
Cutter blades |
Cr12 mould steel with quenched treatment. |
4. Process sketch
Uncoiling the sheet --- Infeed guiding --- Roll forming --- Measure length --- Cutting the panel --- Panels to the supporter (option: automatic stacker).
