Golden Supplier,high Quality Automatic Wall Roof Roll Form Steel Profile Cold Roll Forming Machine African Market

Specifications

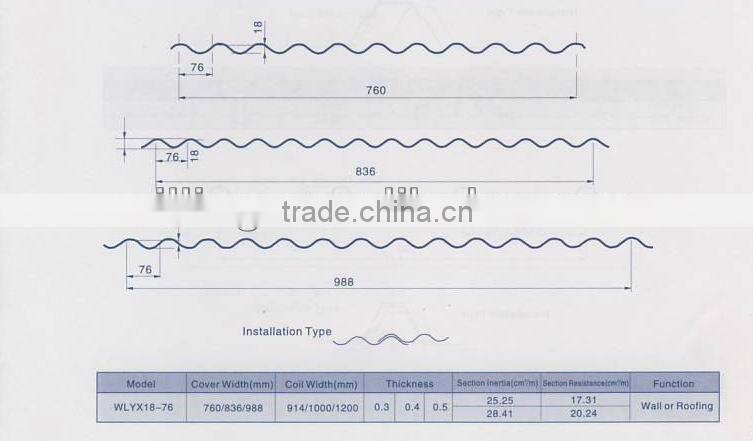

Steel Profile Roll Form Machine WLFM18-76

 Specification Sheet

(Pls kindly note: we can make different cold steel roll forming machines according to your request )

Components of the Machine

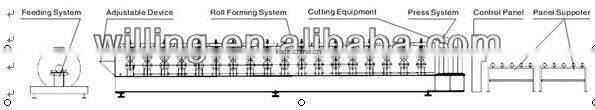

The roll forming machine includes manual uncoiler unit, sheet guiding equipment, roll forming system, cutting equipment, hydraulic station, electric controlling system and run out supporting table.

Material of Main Equipment

Roller Material                High grade No.45 forged steel with thickness 0.05mm of hard chrome plated

Active Shaft Material      High grade No.45 carbon wrought steel diameter 75mm

Electric Elements           PLC control panel, transducer imported from Mitsubishi of Japan.

Cutter blade                   Cr12 mould steel with quenched treatment

Component and Function

Coil Feeding Equipment:

Consists of one uncoiler with capacity of 5000kgs and its base. The steel sheet is manually fed to the guiding equipment under the function of friction and traction

Guiding Equipment:

Adopting guiding bar and sliding block to control the width and position of the steel sheet. The coil is guided in the correct position and passed to the roll forming equipment.

Mainframe Transmission:

Transfer the main motor power to the rollers through chains and sprockets, and also transfer the coil sheet.

Roll Forming System:

The main frame of machine is welded separately and the outside wall is connected by screw after being rotoblasted on the surface. The rollers are surface-chrome plated after being machined by the exact machine tool.

Post Cut Equipment:

The length and blocks can be set by the buyer through the control panel, when reach the set length, the machine will cut the panel automatically. The cutting is finished under the power of hydraulic station which guarantees the precision of cutting.

Hydraulic Station:

Supplies the initial power to the cuter through a closed oil tank. It is off without cutting, which can save the power.

PLC Control Panel:

The electric controlling system of this machine consists of five parts: operating system, screen, PLC, transducer and strong electricity part. The controlling system of this machine are imported from Mitsubishi company of Japan. The system uses modularized structure and has convenient, reasonable, canonical wiring arrangement, and its maintenance is quite easy. The independent operating console facilitates the mutual dialogue between the operator and the machine. The operation is easy and steady and can be chosen operation by manual or automatically.

Supporter Table:

To support the finished panels. The quantity we supply is 2 sets with length 1000mm, it can support panels with more than 2000mm at normal condition.

Working Flow

 decoiling  → guiding and feeding →roll forming→length cutting→run out table

Standard Equipment of Machine

5 T Manual Uncoiler                            1pc

Guiding Equipment                            1set

Roll Forming Equipment                    1set

Post Cut Equipment                          1set

Hydraulic Station                               1pc

PLC Control Penal                            1pc

Supporter Table                               2pcs
