Product Details
| Brand Name | LINK-MI/OEM | Model Number | LM-PSY01 | |
| Place of Origin | Guangdong, China |
Product Description
LM-PSY01 OEM HD SDI to Component Video,BNC to YPbPr Converter with DIP Switch
Model Number: LM-PSY01
Keywords: Bnc To Ypbpr Converter
Introductions: Bnc To Ypbpr Converter
LM-PSY01 BNC SDI to YPbPr Converter is a device to convert 3G/HD/SD-SDI signal to YPbPr Signal, based on the LINK - MI Third Generation Technology. It integrates 3G/HD/SD-SDI Receivers and YPbPr Encoder, can convert the 3G/HD/SD-SDI signal to component Video output. At the same time, LM-PSY01 BNC SDI to YPbPr Converter also can support De-embedded audio from 3G/HD/SD SDI signal, output to the analog ports. LM-PSY01 BNC SDI to YPbPr Coverter integrated up-conversion and down-conversion function, with adaptively SDI signal input. The output resolution can be changed freely. Down-conversion can select Left/Right Cut or Top/Bottom with Black. It also can support full screen output.
Features
1. Based on the LINK - MI Third Generation Technology
2. Supports 3G/HD/SD SDI Signal Input
3. Supports 3G/HD/SD SDI Signal Looping Output
4. Supports 1080p/1080i/720p/480i/576i Video format
5. Supports 1080PSF/ 720P 30/25/24Hz
6. SD/HD YPbPr output
7. Support up-conversion and down-conversion function
8. Select 3 kinds of mode freely under down-conversion
9. Adaptively SDI input signal
10. De-embedded Audio from SDI input signal
11. Supports Analog stereo audio output
12. Can be costumed
Specifications
Name | BNC SDI to YPbPr Converter | |
Model No. | LM-PSY01 | |
SDI Input / Output | Signal | 3G/HD/SD SDI |
Connector | BNC ( IEC169-8 Standard ) | |
SMPTE | 270Mbps-2.97Gbps | |
Signal Amplitude | 800mv ±10% ( 75 Ω) | |
Impedance | 75Ω | |
Analog Audio Output | Output Signal | Analog Stereo Audio |
Impedance | 16Ω | |
Connector | Earphones | |

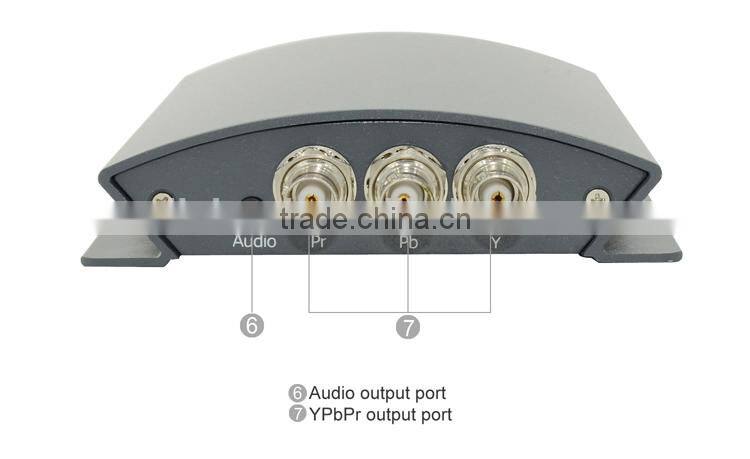

YPbPr Output | Output Signal | Analog YPbPr Signal |
Connector | BNC ( IEC169-8 Standard ) | |
Signal Amplitude | 800mv ±10% ( 75 Ω) | |
Impedance | 75Ω | |
General Parameters | Power Supply | DC 5-12V |
Power | <2W | |
Dimension(L*W*H) | 141*102*30 mm | |
Control | DIP Switch | |
Net Weight | 0.3kg | |
Operating Temperature Range | 0-50℃(non-condensing) | |
Storage Temperature Range | -20 to 75℃ | |
Operating Humidity Range | 20-70%RH | |
Storage Humidity Range | 0-90%RH | |

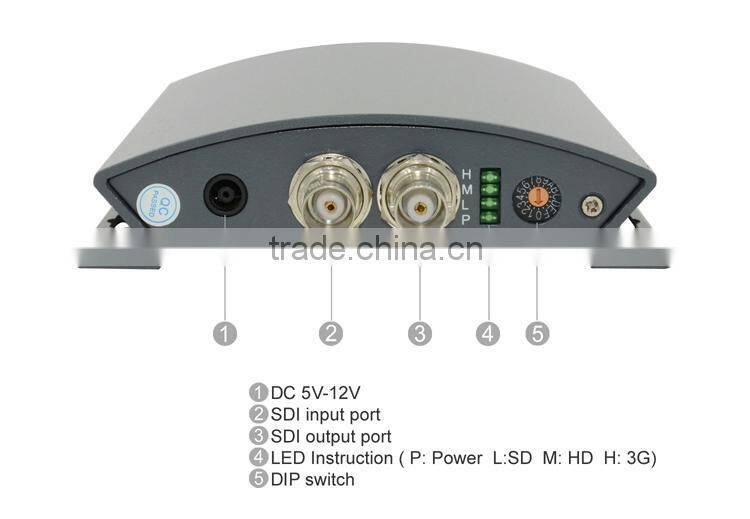

Product Introductions

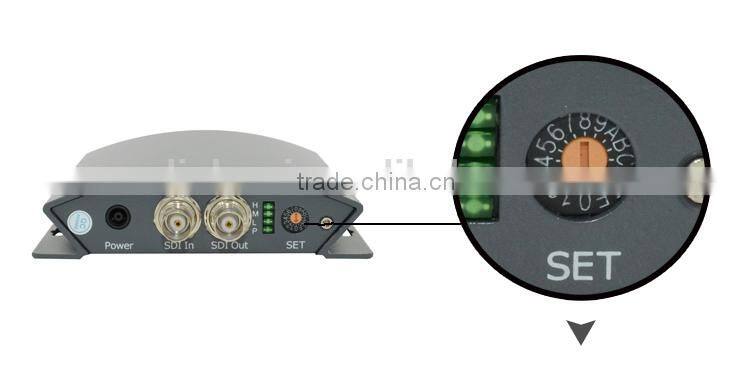

DIP Switch Setting:
Coding | Resolution |
0 | 1080I @50HZ |
1 | 1080P @60HZ |
2 | 1080P @50HZ |
3 | 1080I @60HZ |
4 | 1080P @30HZ |
5 | 1080P @25HZ |
6 | 1080P @24HZ |
7 | 720P @60HZ |
8 | 720P @50HZ |
9 | 720P @30HZ |
A | 720P @25HZ |
B | 576I@50HZ |
C | 576I@50HZ L/R Cut |
D | 576I@50HZ T/B Black |
E | 480I@60HZ |
F | 480I@60HZ T/B Black |
Note:
L/R Left/Right
T/B Top/Bottom

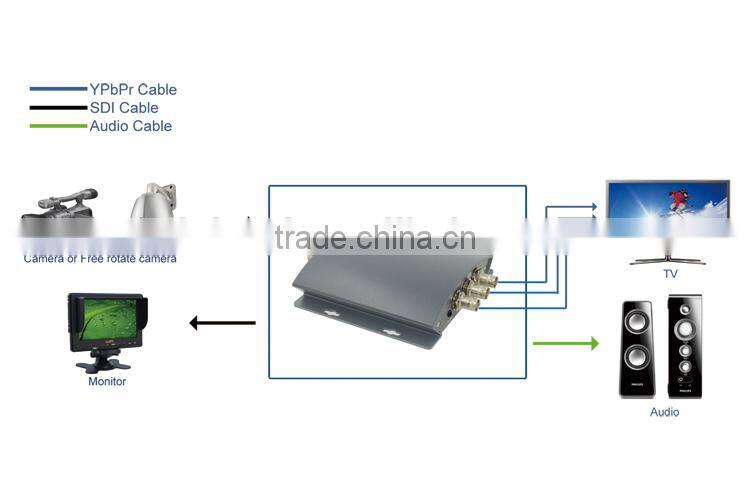

Connection Diagram

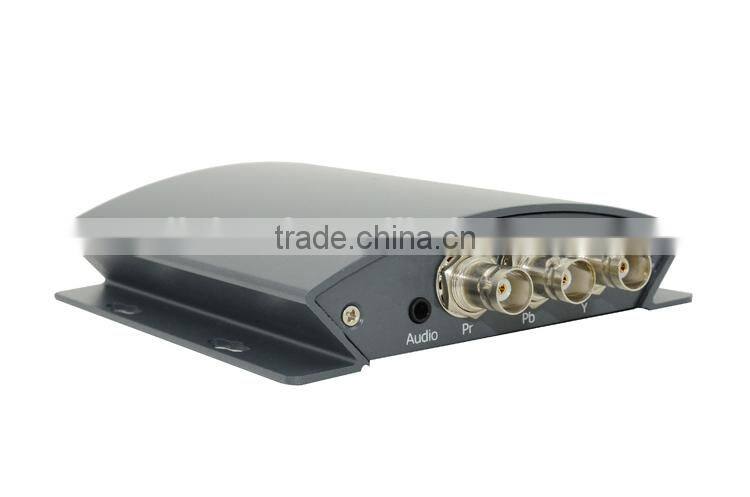

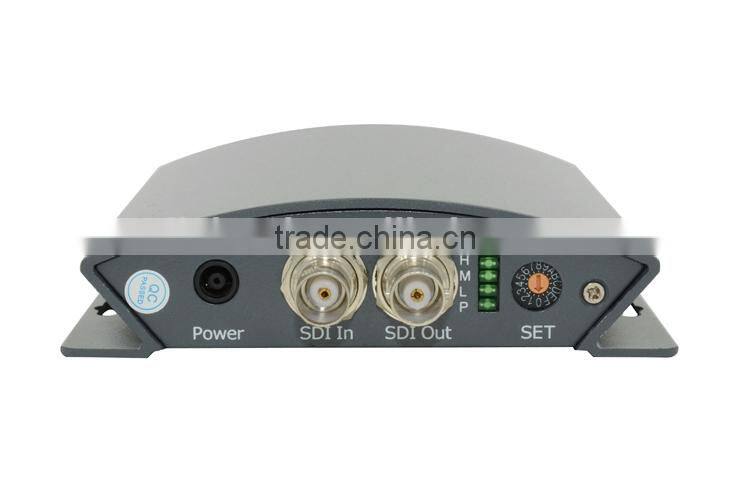

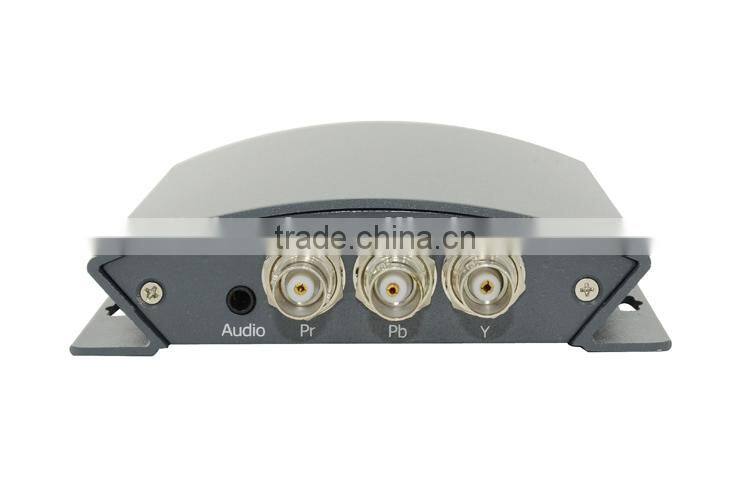

Product Display
PACKING CONTENTS: LM-PSY01 OEM HD SDI to Component Video,BNC to YPbPr Converter with DIP Switch
1. Main Unit. BNC SDI to YPbPr Converter
2. DC 5V Power Supply
3. 1pcs Manual
