New Products 1080p to 1080i HDMI to HD SDI Video Converter with DIP Switch
Model Number: LM-PHS01
Keywords: hdmi to hd sdi converter
Introductions: hdmi to hd sdi converter
LINK-MI LM-PHS01 HDMI to HD SDI Converter 1080p is a device to convert HDMI signal to 3G/HD/SD SDI signal. It integrates HDMI Receivers and 3G/HD/SD-SDI Encoder, convert HDMI signal to 3G/HD/SD-SDI signal.
LM-PHS01 HDMI to HD SDI Converter 1080p supports HDMI internal audio signal embedded in the SDI signal, and supports external analog stereo audio signal embedded in the SDI signal. In addition, LM-PHS01 HDMI to HD SDI Converter 1080p supports the "frequency-conversion" function, can convert different resolution of HDMI input signal to a fixed resolution of SDI output signal. By the way, the output resolution can be selected via DIP Switch, easy to use.
Features
1. Standard HDMI signal input
2. Optional 3G / HD / SD SDI signal output
3. Optional 1080P / 1080I / 720P / 480I / 576I / 1080PSF output
4. HDMI input signal adaptively
5. Support HDMI internal audio signal embedded in the SDI signal
6. Support external analog stereo audio signal embedded in the SDI signal
7. SDI output can be setting as “ frequency conversion”
8. SDI output can be setting as "fixed frequency"
9. Special features can be customized
Specifications
Name | HDMI to HD SDI Converter 1080p | |
Model No. | LM-PHS01 | |
HDMI Input | Signal | HDMI Standard |
Connector | HDMI | |
Signal Amplitude | 800mV ±10% ( 100 Ω) | |
Impedance | 100Ω | |
Analog Audio Input | Output Signal | Analog Stereo Audio |
Digital Sample | 48K | |
Impedance | 16Ω | |
Connector | Earphones | |
SDI Output | Output Signal | 3G/HD/SD SDI Signal |
SMPTE | 270Mbps~2.97Gbps | |
Impedance | 75Ω | |
Signal Amplitude | 800mV ±10% | |
Connector | BNC (IEC169-8 Standard) | |
General Parameters | Power Supply | DC 5-12V |
Power | <2W | |
Dimension(L*W*H) | 141*102*30 mm | |
Control | DIP Switch | |
Net Weight | 0.3kg | |
Operating Temperature Range | 0-50℃ | |
Storage Temperature Range | -20 to 75℃ | |
Operating Humidity Range | 20-70%RH | |
Storage Humidity Range | 0-90%RH | |
Product Introductions

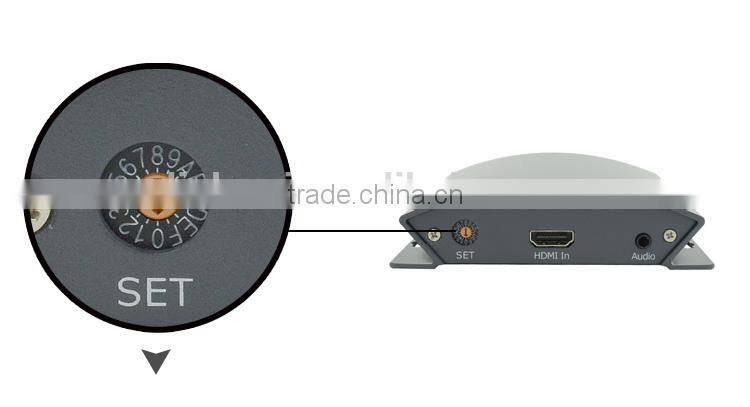

DIP Switch Setting:
Coding | Resolution |
0 | 1080I @50HZ |
1 | 1080P @60HZ |
2 | 1080P @50HZ |
3 | 1080I @60HZ |
4 | 1080P @30HZ |
5 | 1080P @25HZ |
6 | 1080P @24HZ |
7 | 720P @60HZ |
8 | 720P @50HZ |
9 | 720P @30HZ |
A | 720P @25HZ |
B | 576I @50HZ |
C | 480I @60HZ |
D | Reserved |
E | Reserved |
F | Reserved |

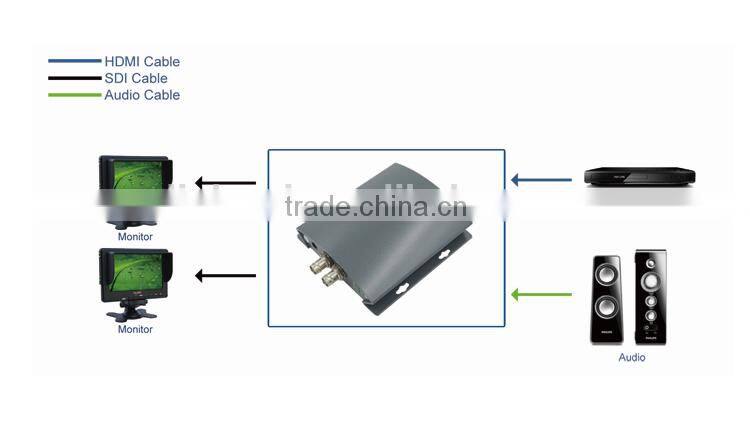

Connection Diagram
Connection and Operating
1. Connect the cable of all the ports correctly.
2. Adjusted the device on a suitable resolution, turn on the power.

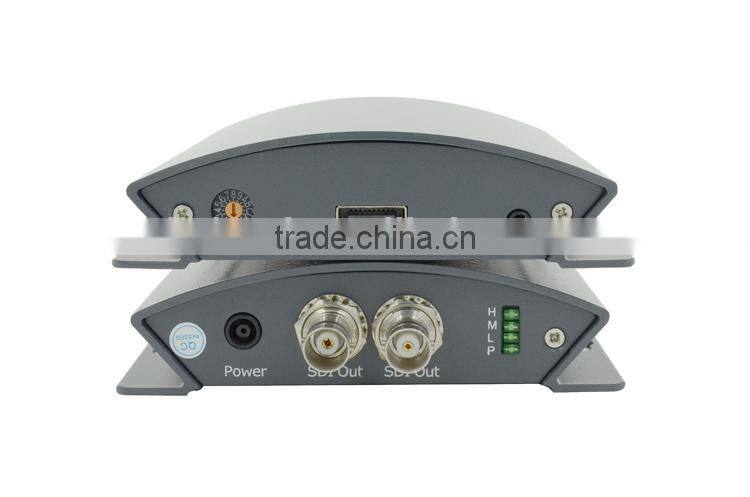

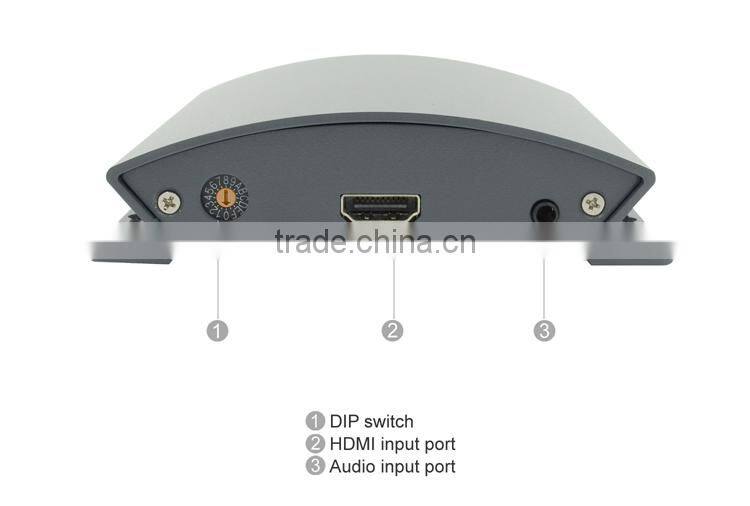

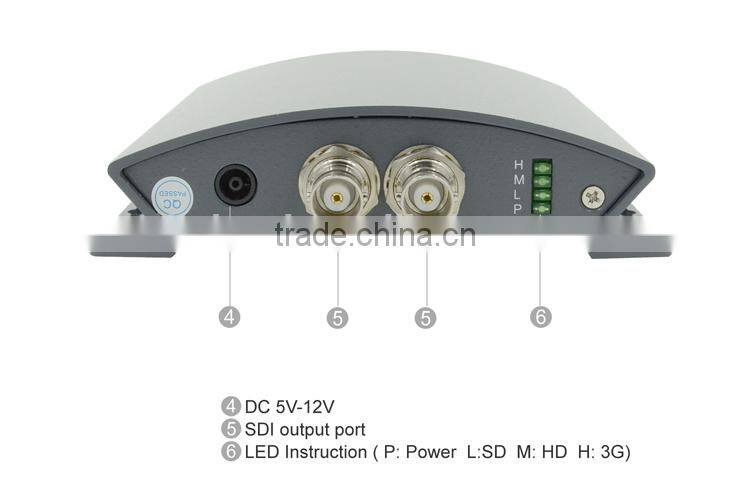

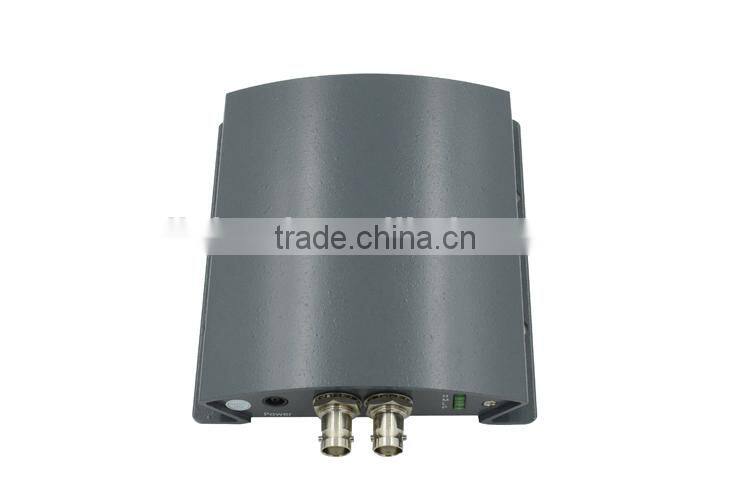

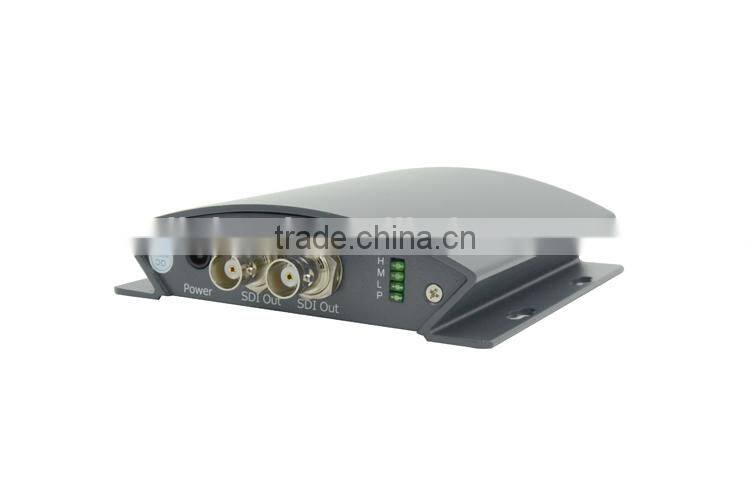

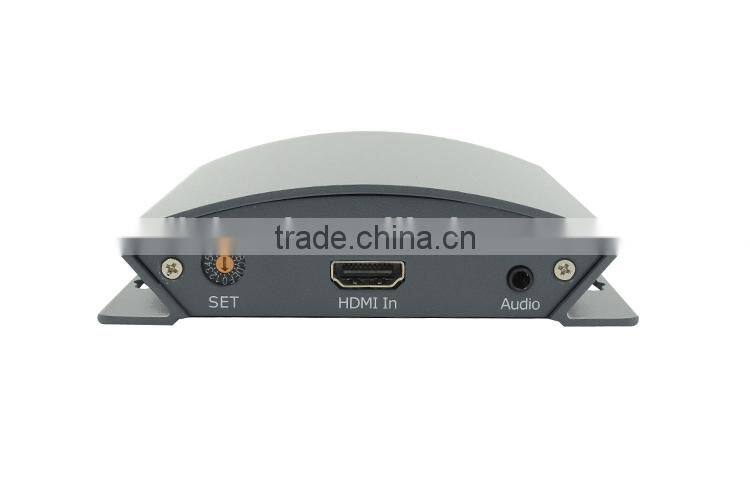

Product Display
PACKING CONTENTS: New Products 1080p to 1080i HDMI to HD SDI Video Converter with DIP Switch
1. Main Unit. 1pcs HDMI to HD SDI Converter 1080p
2. 1pcs DC 5V Power Adapter
3. 1pcs User Manual
