AV to SDI Converter
♦ Standard CVBS Signal Input
♦ Optional 3G/HD/SD SDI Signal Output
♦ Support External Analog Stereo Audio Signals Embedded in SDI Signal
LM-PCS01 Professional AV to SD/HD/3G SDI Converter Convert CVBS Input Signal to 3G/HD/SD SDI Output Signal
Introduction
LM-PCS01 AV to SDI Converter, a dedicated device convert CVBS input signal to 3G/HD/SD-SDI output signal, integrated CVBS receivers and 3G / HD / SD-SDI encoder.
Simultaneously, LM-PCS01 AV to SDI Converter supports external analog stereo audio input signal embedded into SDI signal, and support "frequency-conversion" function, can "transform" the PAL / NTSC / SECAM and other CVBS input signal to SDI signal output in a fixed resolution, also can "up-converted" to HD SDI. By the way, Via the DIP Switch can Select the Output Resolution, easy to use.

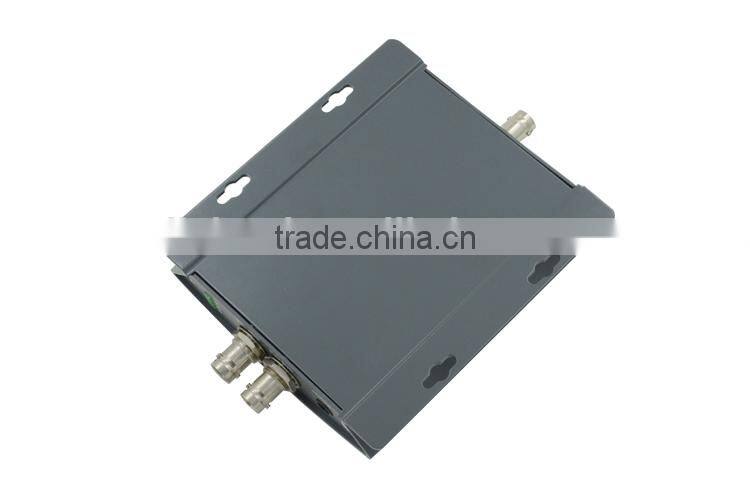

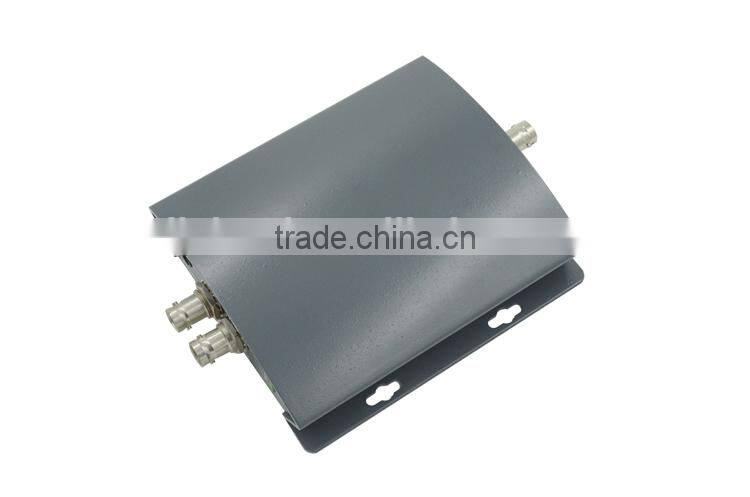

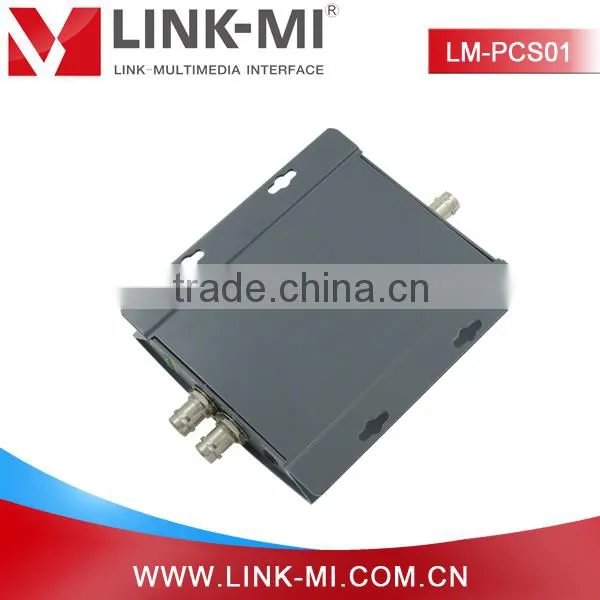

Product Picture
Model No.: LM-PCS01
Product Type: AV to SDI Converter
CVBS to SDI Converter
Features
♦ Standard CVBS signal input
♦ Optional 3G / HD / SD SDI signal output
♦ Optional 1080P / 1080I / 720P / 480I / 576I common resolution
♦ Optional 1080PSF / 720P 30/25/24 special resolution
♦ CVBS input signal adaptively
♦ Support external analog stereo audio signals embedded in SDI signal
♦ SDI output can be set as "frequency-Conversion"
♦ SDI output can be set as "fixed frequency"
♦ Special features can be customized
Specification
Name |
AV to SDI Converter |
|
Model No. |
LM-PCS01 |
|
CVBS Video Input |
Signal |
Standard CVBS Signal |
SMPTE |
27M |
|
Connecter |
BNC |
|
Signal Amplitude |
800mv ±10% ( 75 Ω) |
|
Impedance |
75Ω |
|
Analog Audio Input |
Input Signal |
Analog Stereo Audio |
Digital Sampling |
48K |
|
Impedance |
16Ω |
|
Connector |
Earphones |
|
SDI Video Output |
Output Signal |
SD/HD/3G SDI |
Connector |
BNC ( IEC169-8 Standard ) |
|
Signal Amplitude |
800mv ±10% |
|
Impedance |
75Ω |
|
General Parameters |
Power Supply |
DC 5-12V |
Power |
<2W |
|
Dimension(L*W*H) |
141*102*30 mm |
|
Control |
DIP Switch |
|
Net Weight |
0.3kg |
|
Operating Temperature Range |
0-50℃ |
|
Storage Temperature Range |
-20 to 75℃ |
|
Operating Humidity Range |
20-70%RH |
|
Storage Humidity Range |
0-90%RH |
|

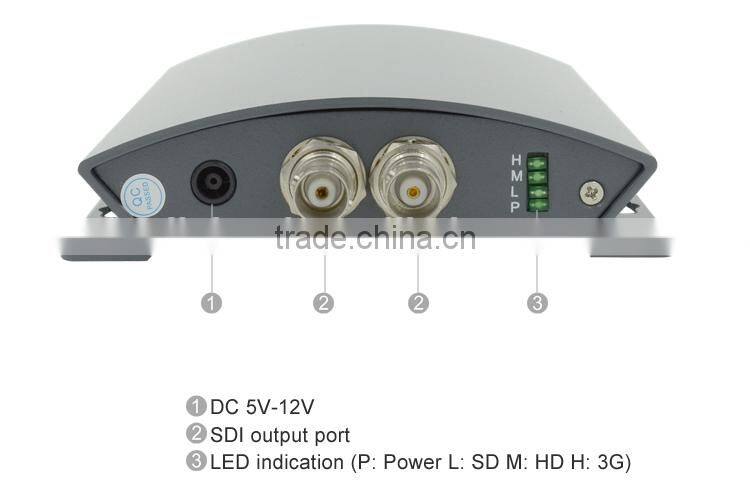

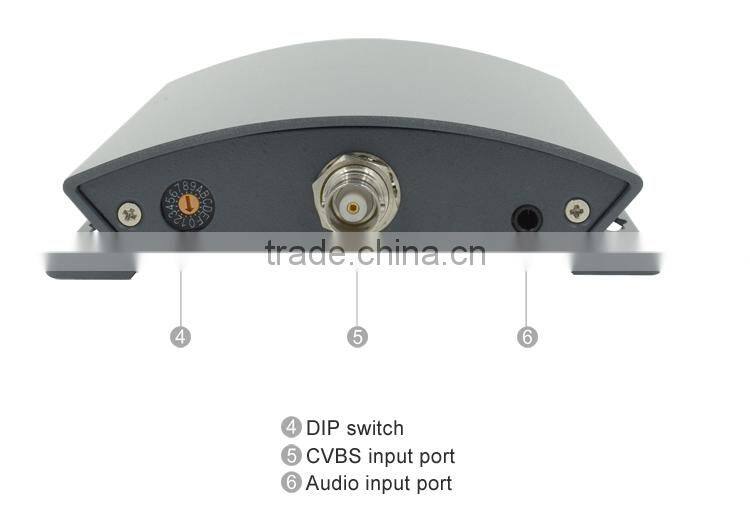

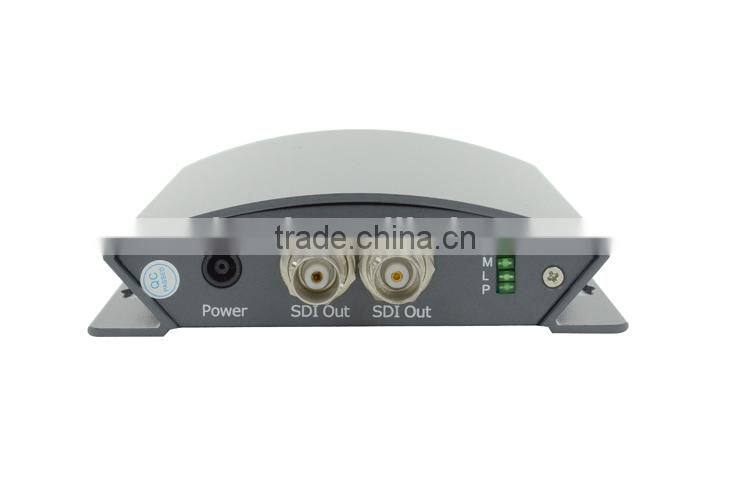

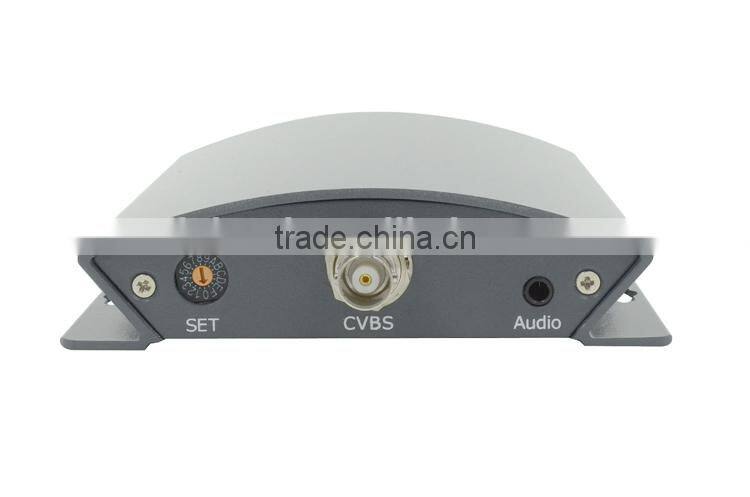

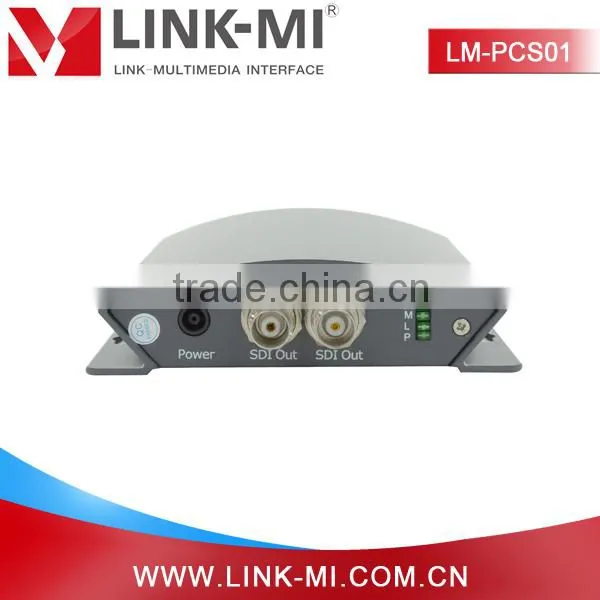

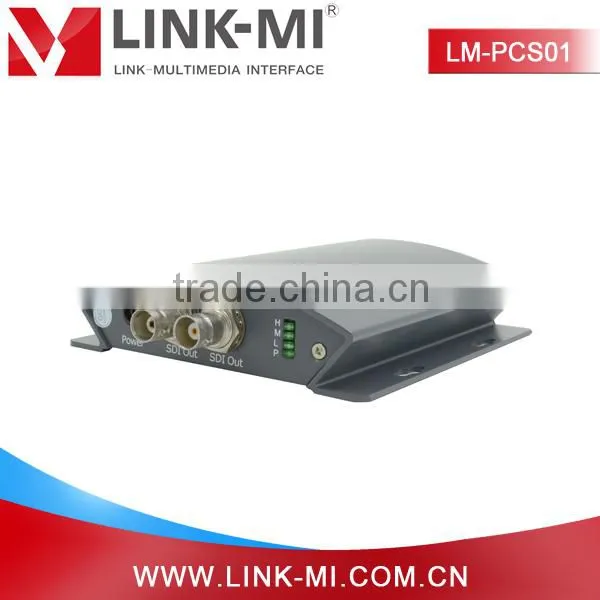

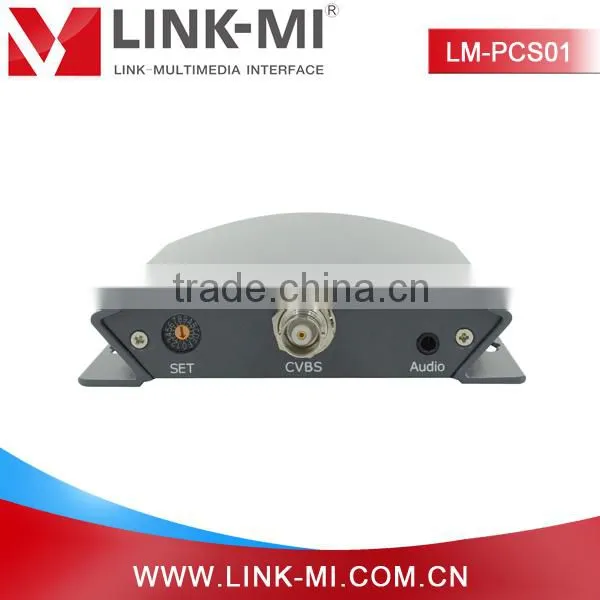

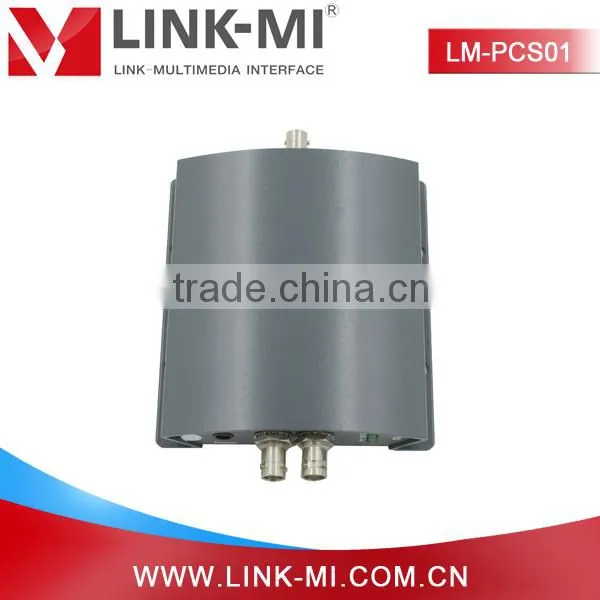

Panel Description

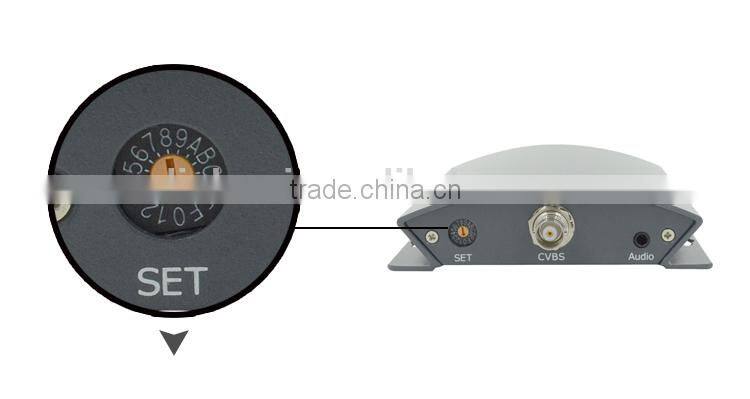

DIP Switch Setting
Coding |
Resolution |
0 |
1080I@50HZ |
1 |
1080P@60HZ |
2 |
1080P@50HZ |
3 |
1080I@60HZ |
4 |
1080P@30HZ |
5 |
1080P@25HZ |
6 |
1080P@24HZ |
7 |
720P@60HZ |
8 |
720P@50HZ |
9 |
720P@30HZ |
A |
720P@25HZ |
B |
576I@50HZ |
C |
480I@60HZ |
D-F |
Reserved |
Connection and Operation
♦ Connect the ports in a right way
♦ Adjust to the device in a suitable resolution, turn on the power

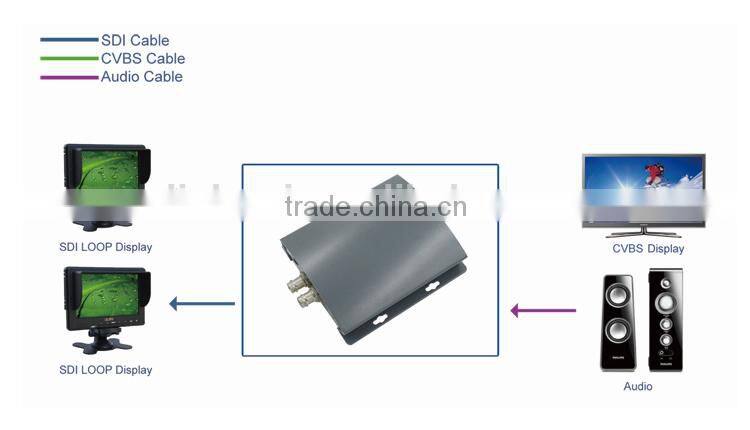

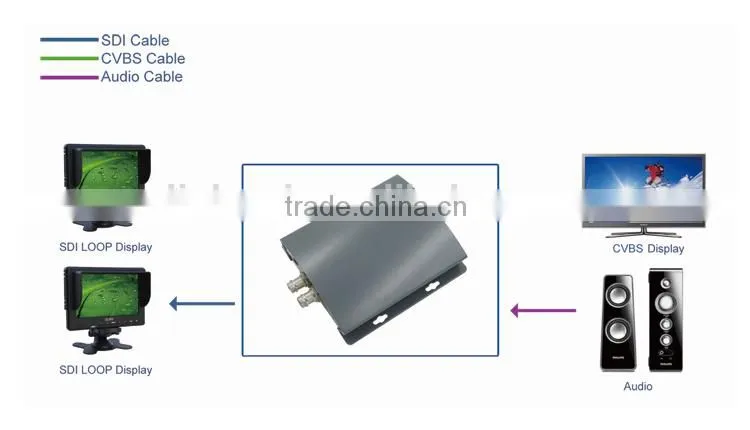

Wiring Diagram
Packing Contents: AV to SDI Converter
♦ Main Unit. 1pcs AV to SDI Converter
♦ 1pcs DC 5V Power Adapter
♦ 1pcs User Manual
