LINK-MI LM-PSD14 4-Port HD/3G SDI Splitter For Digital Video Switcher
Model No.: LM-PSD14
Product Type: 4-Port HD/3G SDI Splitter
Keyword: 4-Port HD/3G SDI Splitter
4-Port HD/3G SDI Splitter
Introduction
LM-PSD14 4-Port HD/3G SDI Splitter is a dedicated 3G/HD/SD SDI signal splitter, integrates FRCS ( Frames Rate Conversion System), SDI Receivers and SDI Encoder, can convert the 3G/HD/SD SDI signals to different resolutions of 3G/HD/SD SDI video signals.
At the same time,LM-PSD14 4-Port HD/3G SDI Splitter support de-embedded audio from 3G/HD/SD-SDI signal, and embedded to SDI outputs.LM-PSD14 4-Port HD/3G SDI Splitter Support re-clock function to keep the output signal quality and stability,in line with broadcast-TV standard, and integrated up/down-conversion function, input SDI Signal adaptive, can freely change the output resolution. Down-conversion can select Left/Right Cut or Top/Bottom with Black. It also can support full screen output.
Features
1. Supports 3G/HD/SD SDI Signal Input
2. Supports 3G/HD/SD SDI Signal Output
3. Supports 1080p/1080i/720p/480i/576i Video format
4. Supports 1080PSF/ 720P 30/25/24Hz
5. Adaptively SDI Input signal
6. SDI input embedded audio de-embedding
7. SDI Output embedded audio
8. Supports Up-Conversion and Down-Conversion function
9. With three mode can be selected freely on Down-Conversion function
10. Re-Clocking function
11. Special features can be customized
Specification
Name |
4-Port HD/3G SDI Splitter |
|
Model No. |
LM-PSD14 |
|
SDI Input |
Signal |
3G/HD/SD SDI |
Connector |
BNC ( IEC169-8 Standard ) |
|
SMPTE |
270Mbps-2.97Gbps |
|
Ability of Equalization |
100M(3G SDI,1694A) |
|
Impedance |
75Ω |
|
SDI Output |
Output Signal |
HD SDI serial digital video signal |
Connector |
BNC ( IEC169-8 Standard ) |
|
SMPTE |
270Mbps~2.97Gbps |
|
Signal Amplitude |
800mv ±10% ( 75 Ω) |
|
Impedance |
75Ω |
|
General Parameters |
Power Supply |
DC 5-12V |
Power Consumption |
<2W |
|
Dimension(L*W*H) |
141*102*30 mm |
|
Control |
DIP Switch |
|
Net Weight |
0.3kg |
|
Operating Temperature Range |
0-50℃ |
|
Storage Temperature Range |
-20 to 75℃ |
|
Operating Humidity Range |
20-70%RH |
|
Storage Humidity Range |
0-90%RH |
|

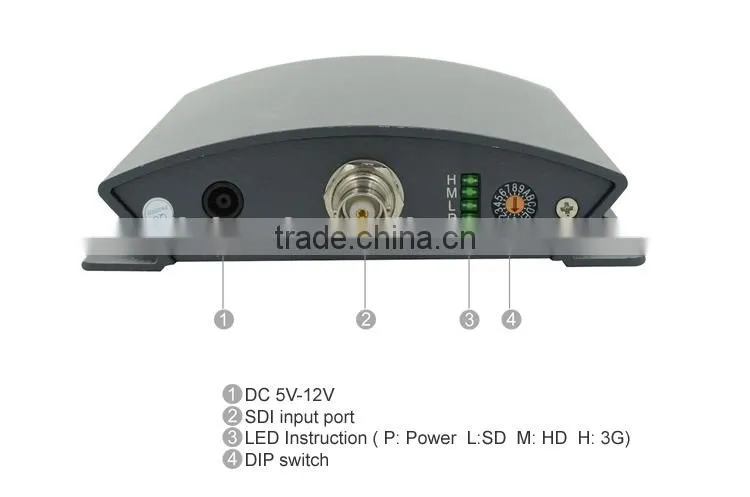

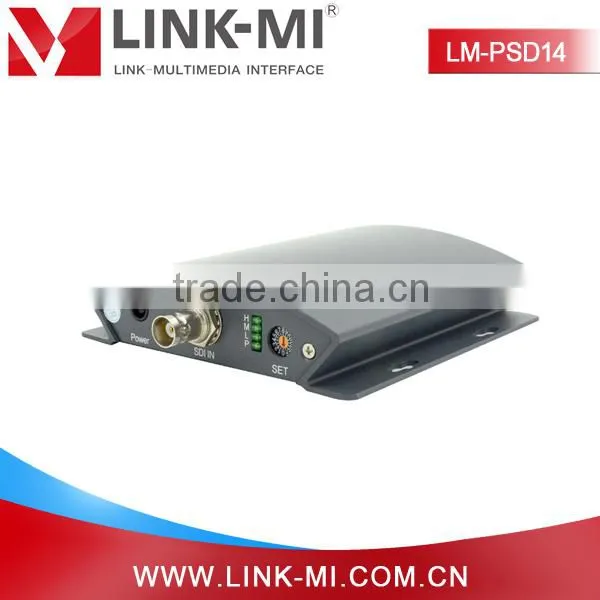

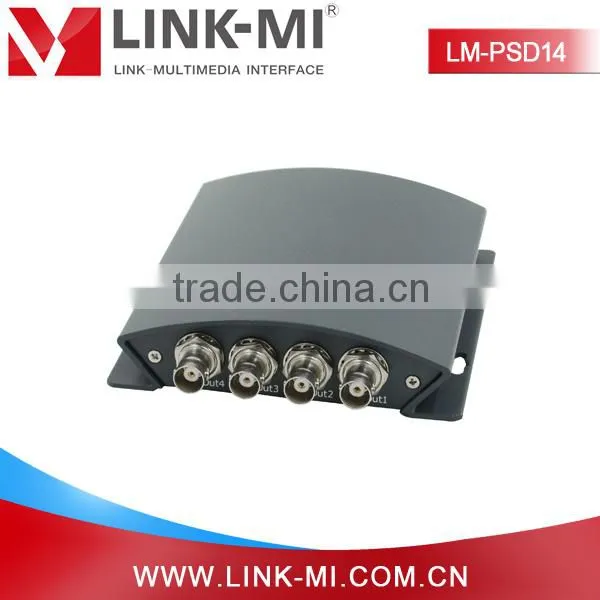

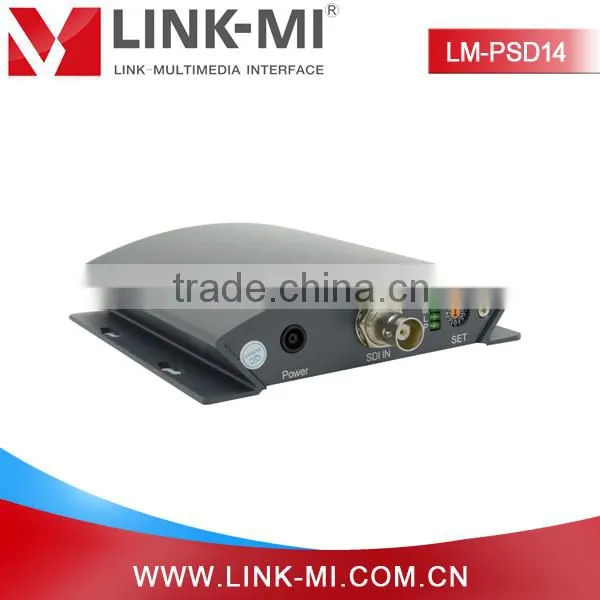

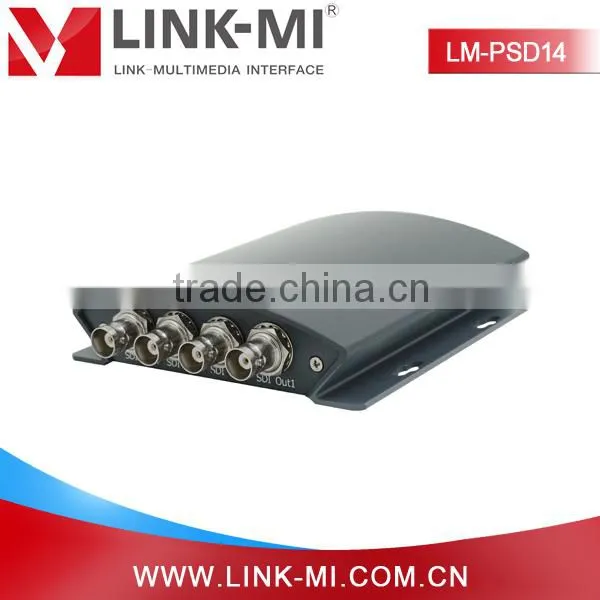

Panel Description
DIP Switch Setting
Coding |
Output Format |
0 |
1080I @50HZ |
1 |
1080P @60HZ |
2 |
1080P @50HZ |
3 |
1080I @60HZ |
4 |
1080P @30HZ |
5 |
1080P @25HZ |
6 |
1080P @24HZ |
7 |
720P @60HZ |
8 |
720P @50HZ |
9 |
720P @30HZ |
A |
720P @25HZ |
B |
576I@50HZ Full screen |
C |
576I@50HZ L/R trimming |
D |
576I@50HZ T/B black bars |
E |
480i@60HZ Full screen |
F |
480i@60HZ T/B black bars |
Note:
L/R Left/Right
T/B Top/Bottom
Product Overviews

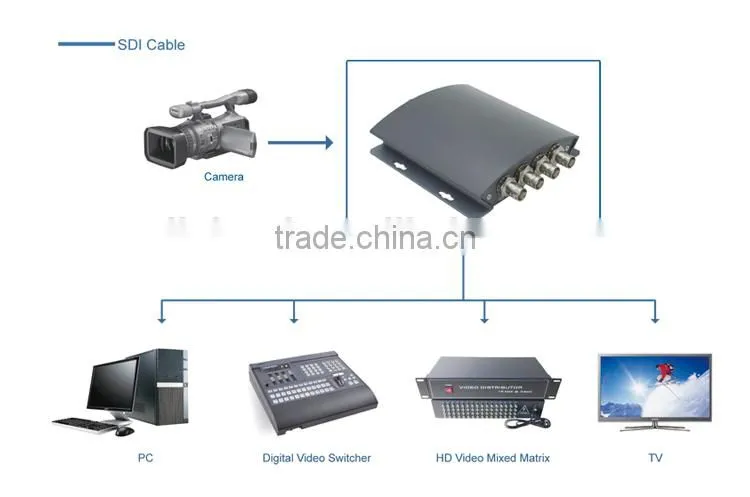

Connection Diagram
Packing Contents
1. Main Unit. 1pcs 4-Port HD/3G SDI Splitter
2. 1pcs DC 5V Power Adapter
3. 1pcs User Manual
