2015 LINK-MI LM-SC5810HA BNC to hdmi/AV CVBS 1080P SDI converter for moniter camera
Model No.:LM-SC5810HA
Keywords: 1080P SDI converter

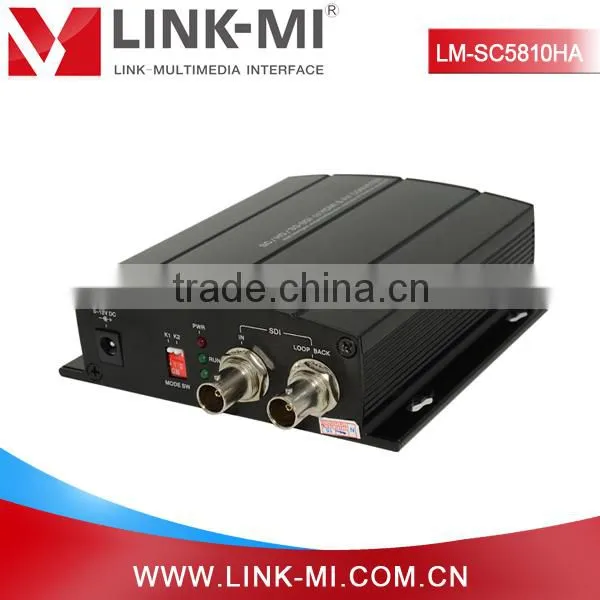

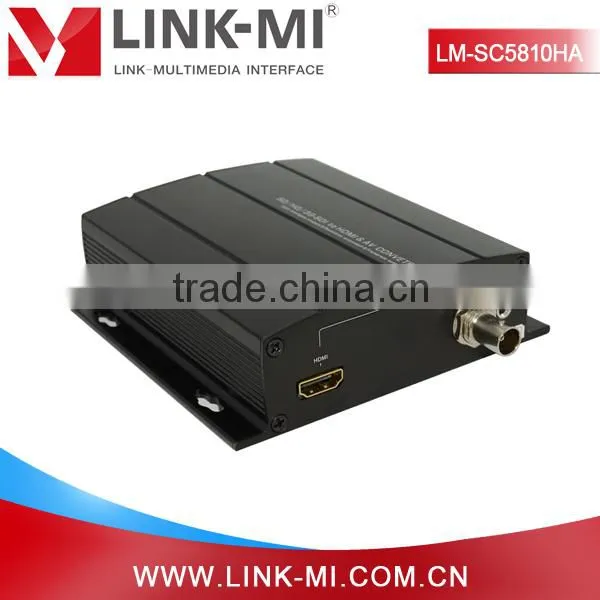

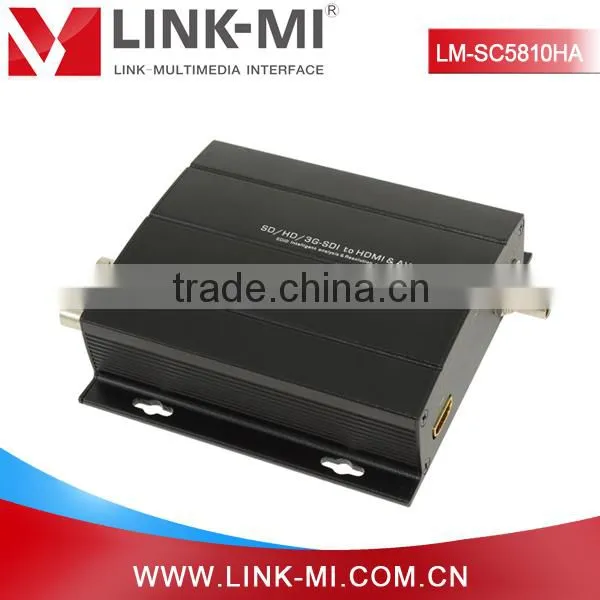

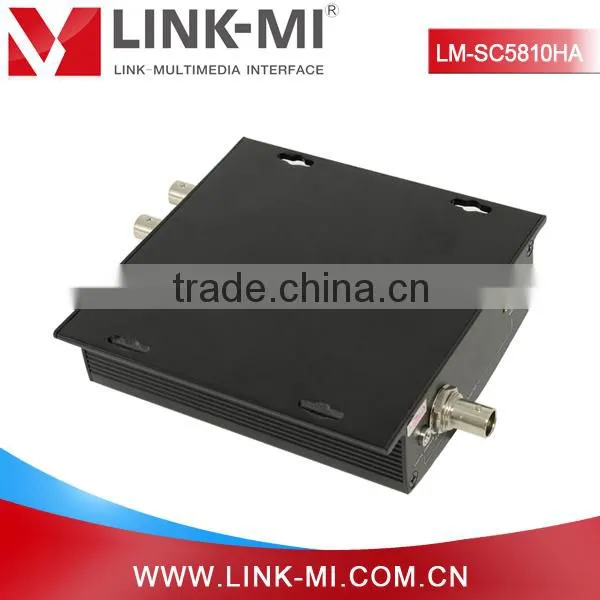

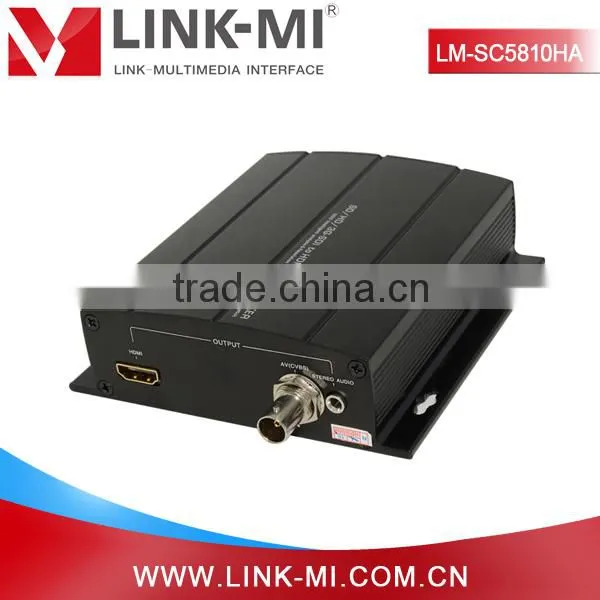

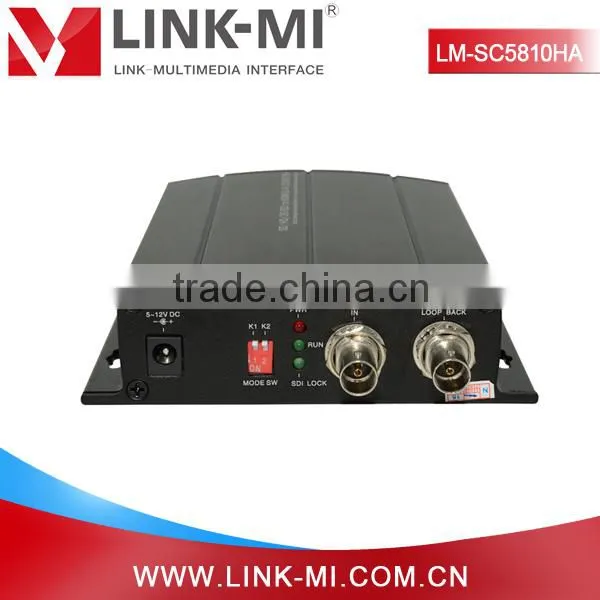

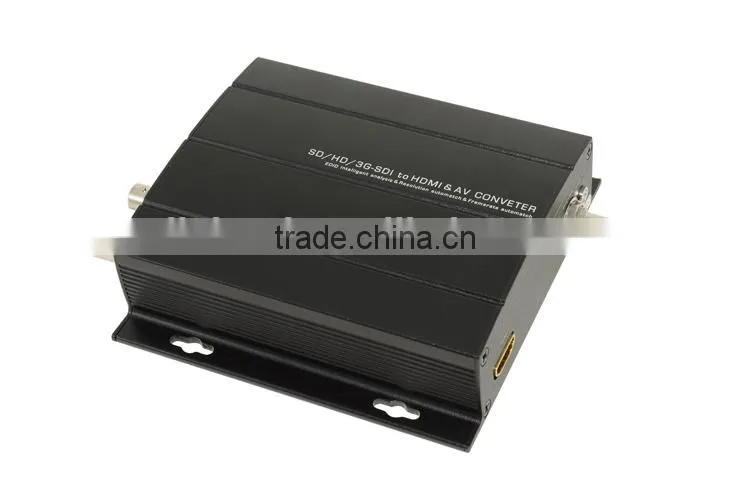

Product photo
1080P SDI converter
Introduction
LM-SC5810HA BNC to CVBS Converter is used in converting one channel SDI signal to HD Multimedia signal and AV(CVBS) signal, separate and convert the sound signals of SDI, and then embed to HDMI signal and AV signal, to achieve the video and sound transmission synchronously. This BNC to CVBS Converter has one channel loopback function in SDI signal output, User can monitor camera’s situation in this locality.
Main feature
1) Support SDI input format: 480i, 576i, 720p @ 50/60, 1080p @ 24/25/30, 1080i @ 50/60, 1080p @ 50/60.
2) Support SMPTE 425M(A level and B level),SMPTE424M, SMPTE292M, SMPTE259M-C.
3) Carry 1 channel SDI signal loop out.
4) SDI signal support the maximum input coax length:
Belden 1694A: SD-SDI 400m;
HD-SDI 200m;
3G-SDI 140m.
5) Automatically embed SDI audio signal to HDMI signal and AV (CVBS) signal.
Parameters
| Product Type | BNC to CVBS Converter | |
| Video In | SD/HD/3G-SDI | |
| Video Out | SD/HD/3G-SDI, HDMI Digital Signal, AV(CVBS) | |
| Input Power | DC 12V/250mA | |
| Video signal bandwidth | 270Mbps,1.485Gbps,2.970Gbps | |
| Connection Port | SDI In/Out | BNC-F (75Ω) |
| HDMI Out | HDMI 1.3 connector | |
| AV (CVBS) Out | BNC | |
| LED | SDI | Flickering: Receiving |
| HDMI | Flickering: Receiving | |
| AV (CVBS ) | Flickering: Receiving | |
| LMR | On: Working | |
| Temperature / Humidity | -20°C ~ +60°C / 0 ~ 80% | |
Dimension diagram
Installation:
LED Indicators
The LEDs indicate the meanings from top to bottom as following respectively:
| Name | Color | Status | Description |
| HDMI | Green | Turn On | HDMI signal is active status. |
| Turn Off | HDMI signal is inactive status. | ||
| AV(CVBS) | Green | Turn On | AV signal is active status. |
| Turn Off | AV signal is inactive status. | ||
| SDI | Green | Turn On | SDI signal is active status. |
| Turn Off | SDI signal is inactive status. | ||
| LMR | Green | Turn On | Power source has been connected. |
| Turn Off | Power source hasn’t been connected. |

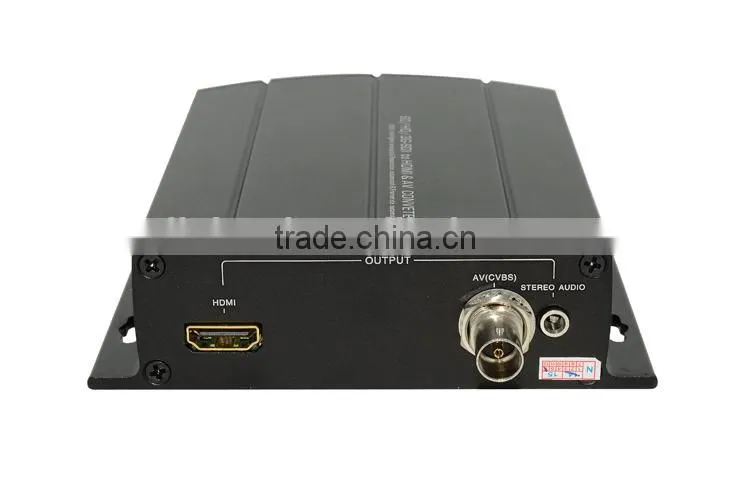

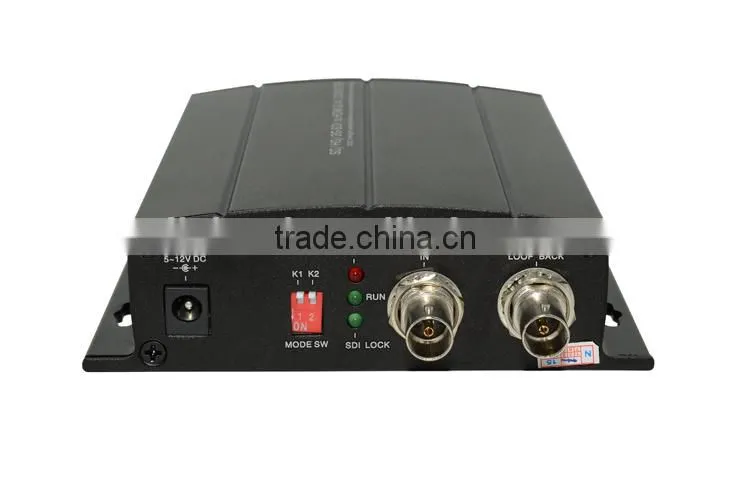

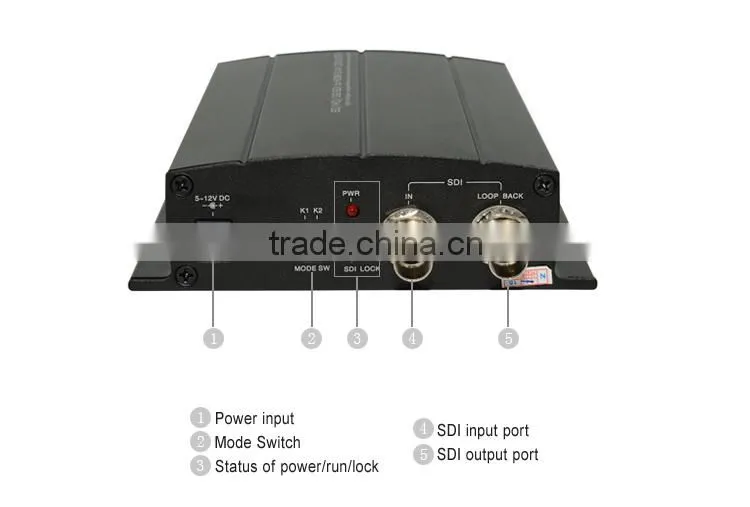

Panel description
Connecting and operating
1) To open the box, then checking the quality, model no. and quantity of the equipments and accessories according to the picking list, if there were any questions, just feel free to contact us or the local distributors
2) To check the power supply configuration, if it were DC input, just connects with the correct voltage according to the power supply input requirements. To connect AC/DC Adapter to the alternating current power supply socket.
3) Connect SDI signal to SDI IN port by coaxial cable.

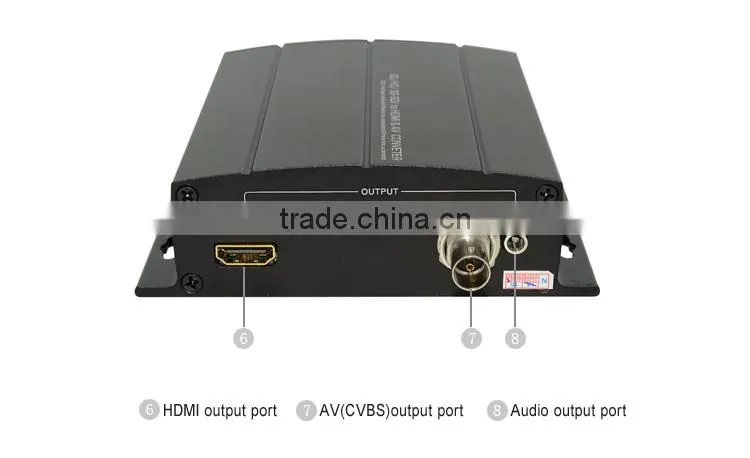

4) Connect HDMI OUT port and AV OUT port to display device by standard connected cable.
5) Connect power adapter, and debug and use.

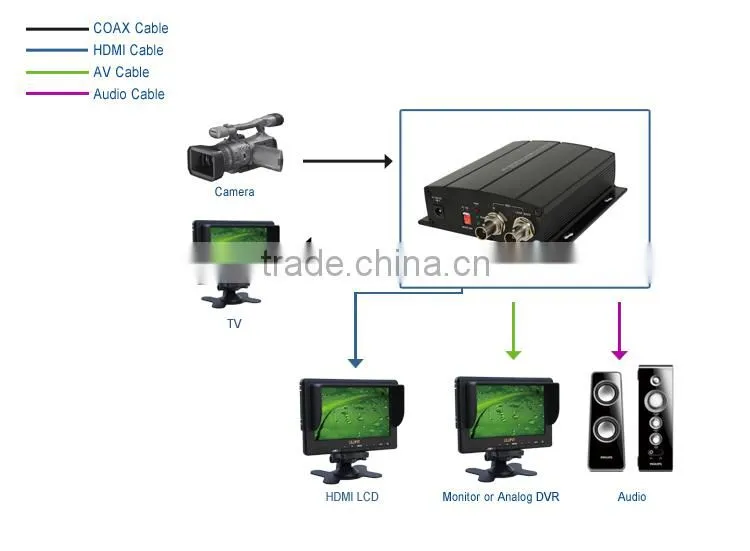

Connection diagram
Packing contents
1) 1 piece BNC to HDMI CVBS Converter
2) 1 piece AC Adapter
3) 1 piece User Manual
Packing diagram
