Help CenterUSB3.1 Hybrid AOC-Active Optical Cable-AM to Angled Micro-B 20m
Related Products
-
Pure Fiber USB3 Active Optical Cable-AM to AM-5Gbps-50mNegotiableMOQ: 10 Pieces -
كابل ألياف ضوئية USB-C يدعم فيديو بدقة 8K بسرعة 10 جيجابت في الثانيةNegotiableMOQ: 1 Piece
-
Fiber Optic Type-c Active Optical 40GbpsNegotiableMOQ: 1 Piece
-
Fiber Optic USB 3.1 AOC-Active Optical Cable,Gen-2,10Gbps,AM to AFNegotiableMOQ: 1 Piece
-
كابل بصري نشط USB-C بطول 10 أمتار، يدعم فيديو بدقة 8K ونقل بيانات بسرعة 10 جيجابت/ثانية، مزود بتقنية الشحن السريع PD70WNegotiableMOQ: 1 Piece

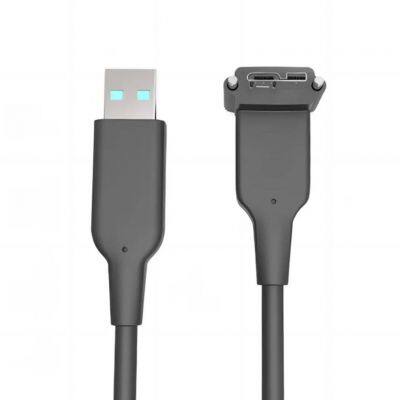

The FUBC-31A0B3-XX USB 3.1 Gen 1(5Gbps) Hybrid AOC-Active Optical Cable, type A Male to angled Micro-B offers an Up/Down 90° angled for Micro-B connection,especially friendly to the space limitation.
Employing a sleek, high-flex (4.8 mm) optical fiber as its transmission medium, the USB 3.1 Hybrid Active Optical Cable innovatively integrates copper for supplying power to both the cable’s active components and the connected device(s), particularly when they’re bus-powered.
Extending the USB 3.1 bus to a remarkable 20 meters or 65 ft, this USB 3.1 Hybrid Active Optical Cable ensures a maximum bandwidth speed of 5 Gbps. With a Micro-B connector boasting screw lock support, it’s perfectly suited for machine vision, industrial, and robotic applications.
Ideal replacement for:
Highlight Features:
Max Transmission Speed: USB 3.1 @ 5Gbps
Maximum Transmission Length: 20 meters (65ft), USB 2.0 up to 50 meters (115ft)
Power Supply: Support 5V 900mA max to the remote device
Easy Installation: Hot-plugging, no driver required
EMI Resistance: High resistance to electromagnetic interference, ensuring a safe, radiation-free environment
Customizable: Up to 20m maximum length, custom length(5m/10m/15m/20m), logo, and packaging available
Specifications:
Host side: USB 3.1 Type-A plug, dimensions: 34mm x 16mmx 8mm
Device side: USB 3.1 Micro-B plug with locking screws, dimensions: 36mm x 22mm x8mm
Cable diameter: 4.8 mm
Bend radius: 40 mm
High flex rated for for >10 million cycles for bending stroke of 1m, velocity 80 cycles/min
Tensile Strength(Long Term/Short Term): 150N/300N
Crush Resistance (Long Term/Short Term)/100mm: 500N/1000N
Supply voltage: 4.75 – 5.25 V
Power dissipation: 0.95 W
Device supply current: Max 5V – 900mA (up to 20m), 600mA (21m-50m)
Operating conditions: -10’C -55′C, 15%-80% humidity
Max temperature gradient: 6′ C per hour
Compliance: FCC/CE/RoHS
Applications:
Machine Vision Camera Link
Medical Imaging Equipment
Machine Vision
