LINK-MI LM-SAV1 HD SDI Composite CVBS Converter Auto Video Mode Detection
Model No.: LM-SAV1
Product Type: HD SDI Composite CVBS Converter
Keyword: HD SDI Composite CVBS Converter
HD SDI Composite CVBS Converter
Model No.: LM-SAV1
Introduction:
The HD SDI Composite CVBS Converter allows SD-SDI, HD-SDI and 3G-SDI signals to be shown on CRT or HDTV while ensuring high bit rates of 2.970 Gbit/s to give you fast signal transmission without any loss. For professionals this means that it is now easier to distribute and extend your 3G SDI signal while giving you the ability to display your work on TV thanks to the built in this converter. Furthermore, thanks to the loop-through 3G-SDI design, users are able to enjoy both SDI and AV at the same time.
Product Description:
Features:
1. Operation at 2.970Gbit/s, 2.970/1.001Gbit/s, 1.485Gbit/s, 1.485/1.001Gbit/s and 270Mbits/s
2. Equalized and re-clocked loop output
3. Auto video mode detection (3G/HD/SD)
4. Conversion from SMPTE 425M level B to Level A 1080p 50/59.94/60 4:2:2 10-bit
5. Connect with other units to extend your signal over long distances
6. Simultaneous display with SDI /AV signals
7. Alternative audio output to analog 2CH
8. Supports signal transmission distances of up to 300M for SD signals, 200M for HD signals and 100M for 3G signals
9. Note: Cable tested with Belden 1694A. Operating distances may vary if used with another type of cable.
Specifications:
Operating Temperature |
0°C ~ 40°C / 32°F ~ 104°F |
Storage Temperature |
-20°C ~ 60°C / -4°F ~ 140°F |
elative Humidity |
20 ~ 90% RH (Non-condensing) |
SMPTE Standard |
425M Level A & B, 424M, 292M, 259M-C |
SDI Transmission Rates |
2.970 Gbit/s and 2.970/1.001 Gbit/s |
SDI in/out Resolution |
SD:480i@60,576i@50 HD:720p@50/60,1080i@50/60 3G:1080p@24/25/29.97/30/50/59.94/60 |
CVBS Output Resolution |
PAL/NTSC-M |
ESD Protection Human body model |
±8kV (air-gap discharge) ±4kV (contact discharge) |
Input Port |
1 x BNC (SD/HD/3G-SDI) |
Output Port |
1 x BNC (SD/HD/3G-SDI), 3 x RCA (CVBS,L/R) |
Power Supply |
DC 5V -12V |
Power Consumption (Max) |
5W |
Weight |
260g |
Dimension |
95mm x 60mm x 25 mm |

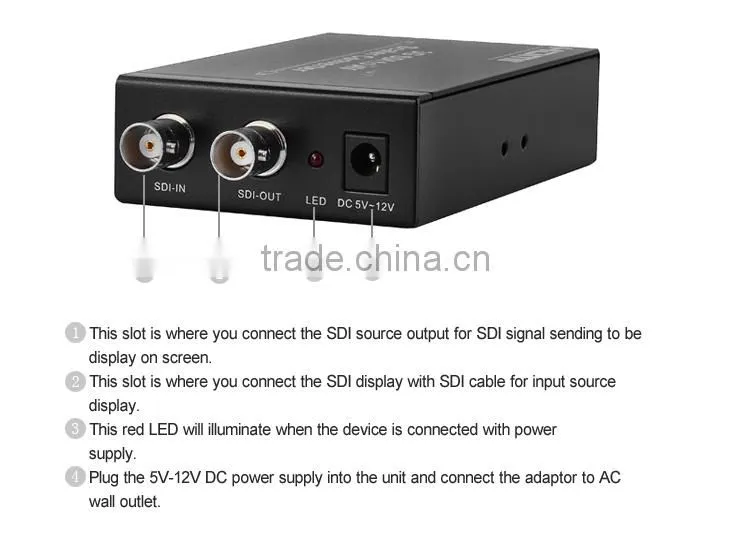

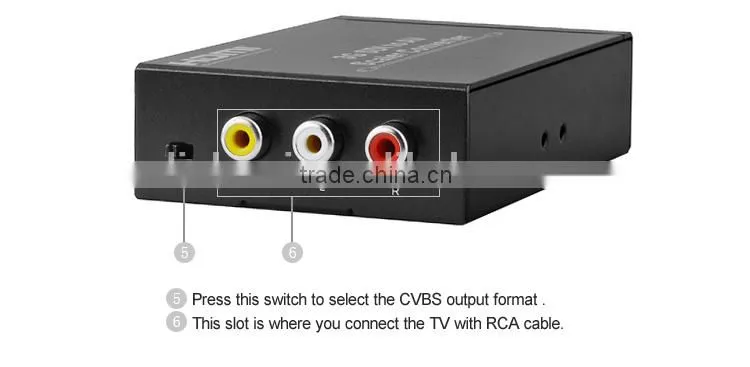

Panel Description:

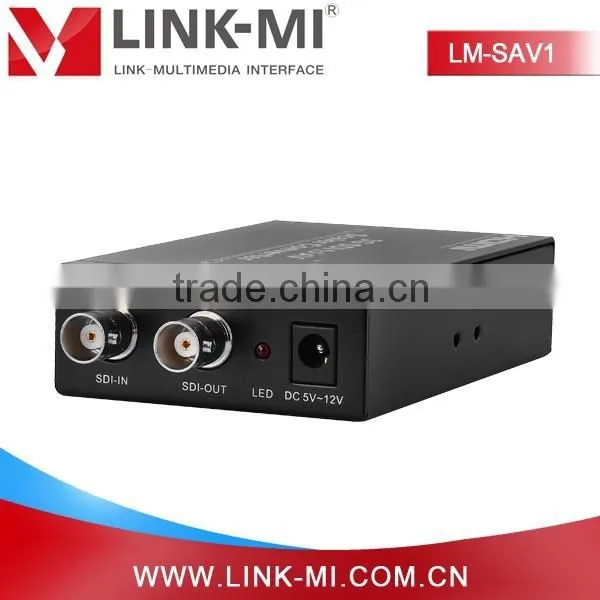

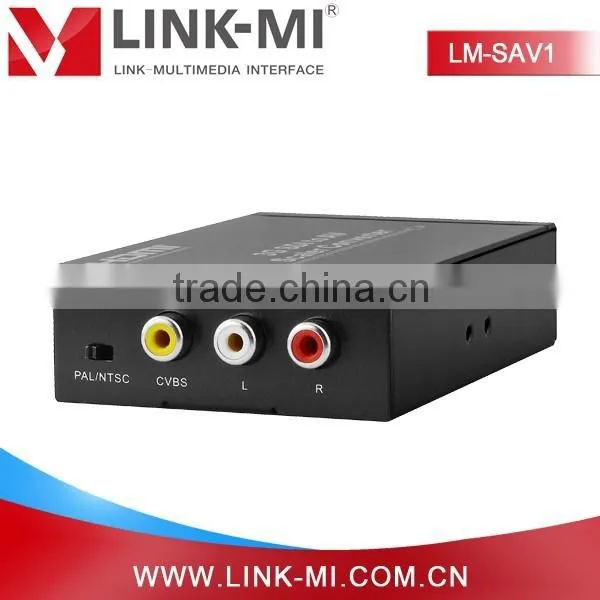

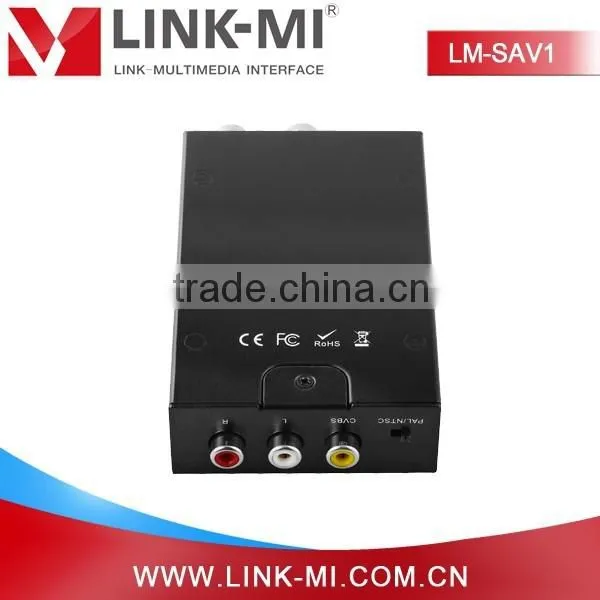

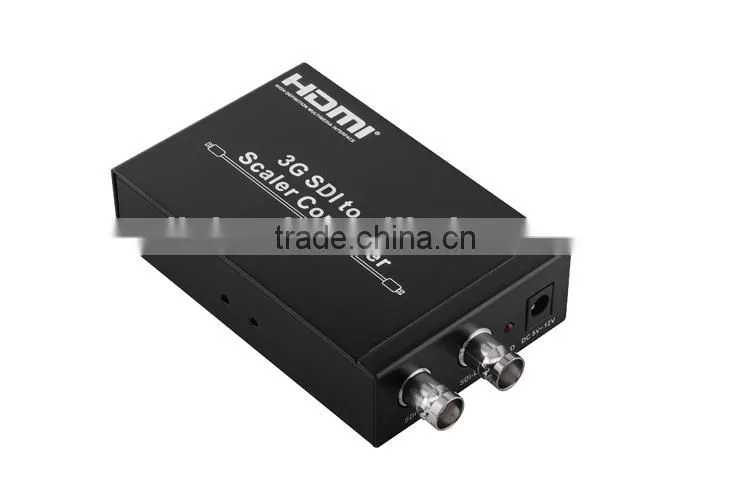

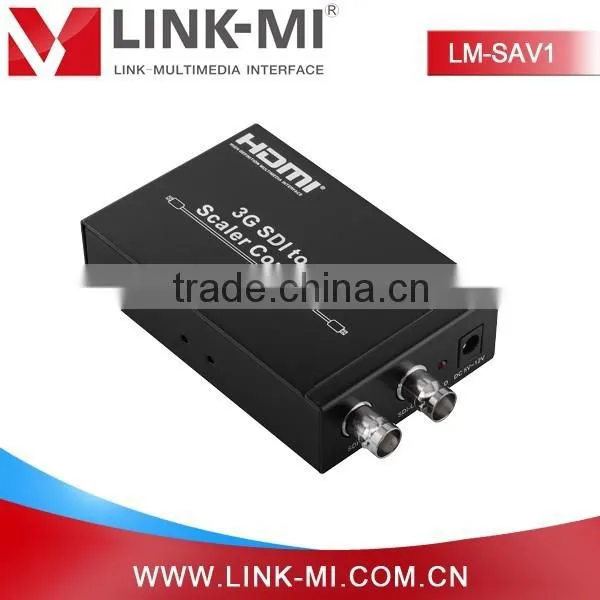

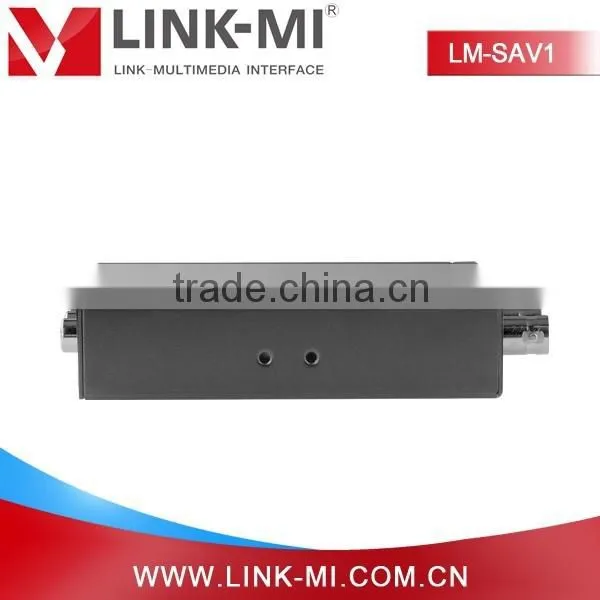

Product Images:
Installation:

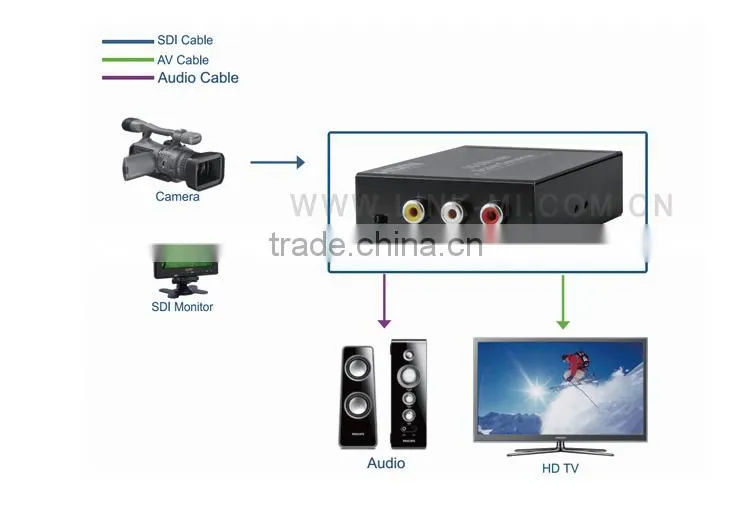

Connection Diagram:
Packing Information:
1. Main Unit. HD SDI Composite CVBS Converter
2. DC 5V Power Adapter
3. User Manual
