LINK-MI LM-SDI-102 2.97Gbps Data Rates HD SDI Video Splitter 1 to 2 Over RG59 Coaxial Cable
Model No.: LM-SDI-102
Product Type: HD SDI Video Splitter 1 to 2
Keyword: HD SDI Video Splitter 1 to 2
HD SDI Video Splitter 1 to 2
Introduction
LINK-MI LM-SDI-102 2.97Gbps Data Rates HD SDI Video Splitter 1 to 2 Over RG59 Coaxial Cable is a high quality SD/HD/3G-SDI Repeater & Distribution Amplifier, distribute 1 SDI input to 2 SDI Outputs simultaneously, can transmit HD-SDI signal up to 120m/390ft ( Belden 1694A ). This HD SDI Video Splitter 1 to 2 with re-clocking function capability - umlimited repeater connection, supports SD-SDI, HD-SDI, 3G-SDI interface.
Features
1. Distributes 1 SDI input to 2 SDI outputs simultaneously
2. Single unit can transmit up to 120m/390ft (Belden 1694A)
3. Re-clocking function capability---unlimited repeater connection
4. Support SDI Standard :SD-SDI,HD-SDI, 3G-SDI
5. Data Rates: 270Mbps(SD-SDI), 1.485Gbps (HD-SDI), 2.97Gbps (3G-SDI)
6. Signal Type: SMPTE 292M, SMPTE 259M, SMPTE 424M
7. DC 5V~12V (Power consumption less than 2W)
Specification
Re-clocking Function |
Yes |
SDI Standards |
SD-SDI, HD-SDI,3G-SDI |
HD/SD-SDI Detection |
Auto |
Supported Protocols |
SMPTE 259M SMPTE 292M SMPTE 424M |
Data Rates |
270Mbps(SD-SDI), 1.485Gbps (HD-SDI), 2.97Gbps (3G-SDI) |
Video Support |
480i @60hz, 720p @50/59.94/60hz, 1080i @50/59.94/60hz, 1080p @23.98/24/25/29.97/30/50/59.94/60hz |
SDI Signal Type |
SMPTE-292M, SMPTE-259M, SMPTE-424M |
Output Impedance |
75 ohms |
Cable Equalization |
HD-SDI up to 120m SD-SDI up to 200m Unlimited repeater connection |
Audio Sampling rate |
48Khz |
Impedance |
75 ohms |
Input |
1x BNC [SDI] |
Output |
2x BNC [SDI] |
Power Adapter |
5V~12V DC |
Power Consumption(Max) |
2W |
Operating Temperature |
0°C ~ 40°C / 32°F ~ 104°F |
Storage Temperature |
-20°C ~ 60°C / -4°F ~ 140°F |
Relative Humidity |
20~90% RH (no condensation) |
Housing Material |
Metal case |

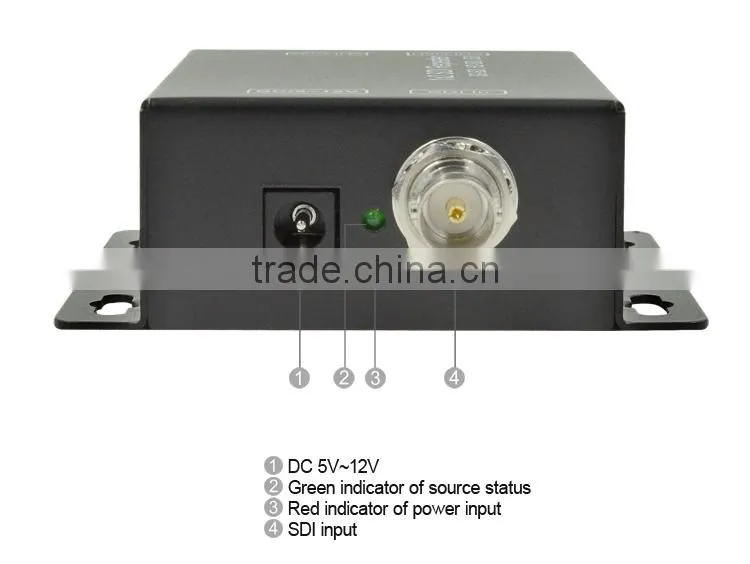

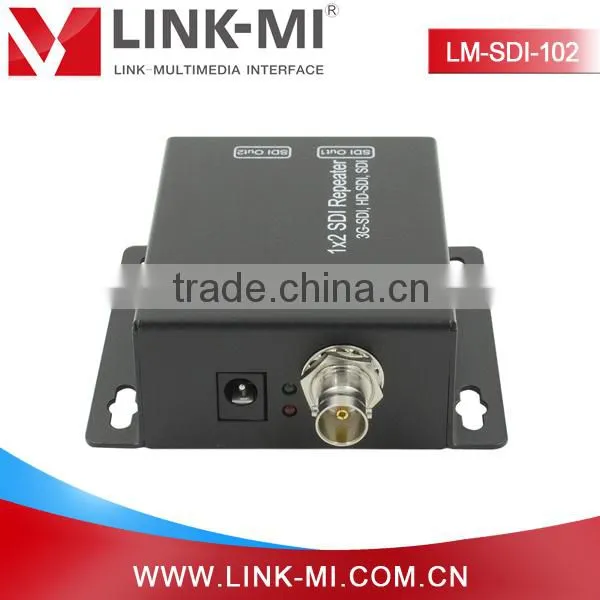

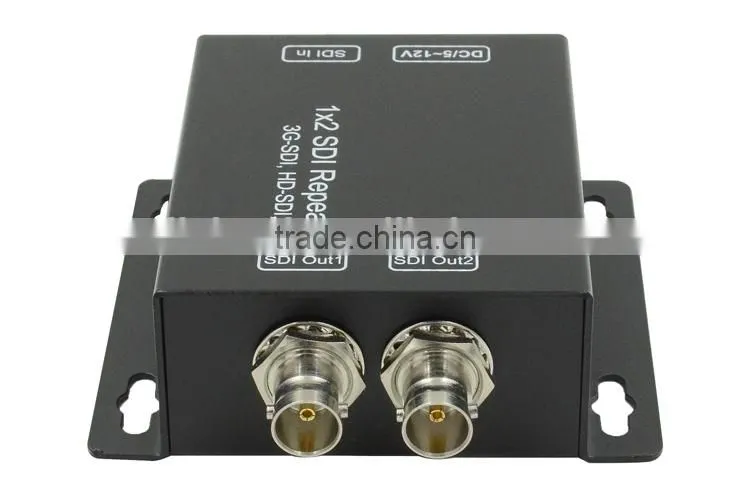

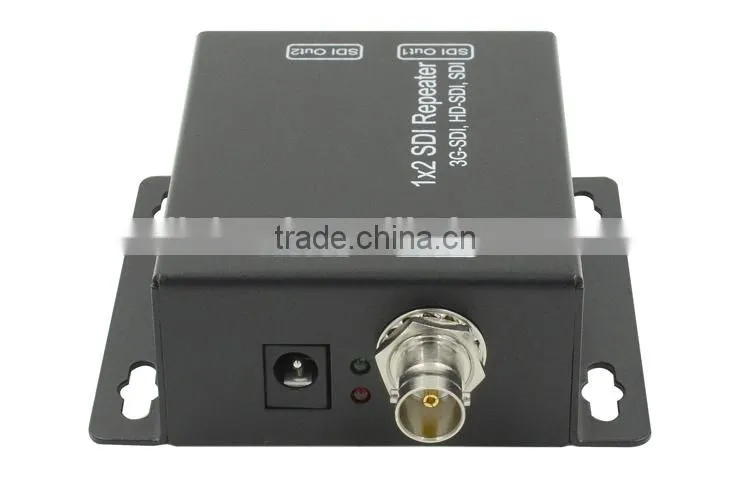

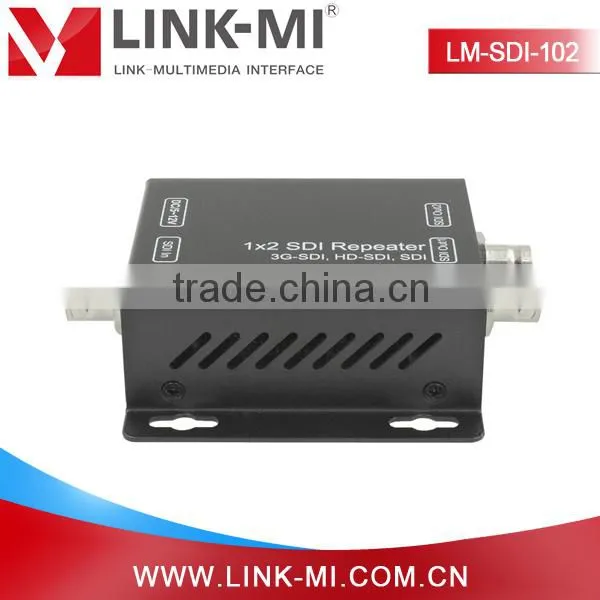

Panel Description

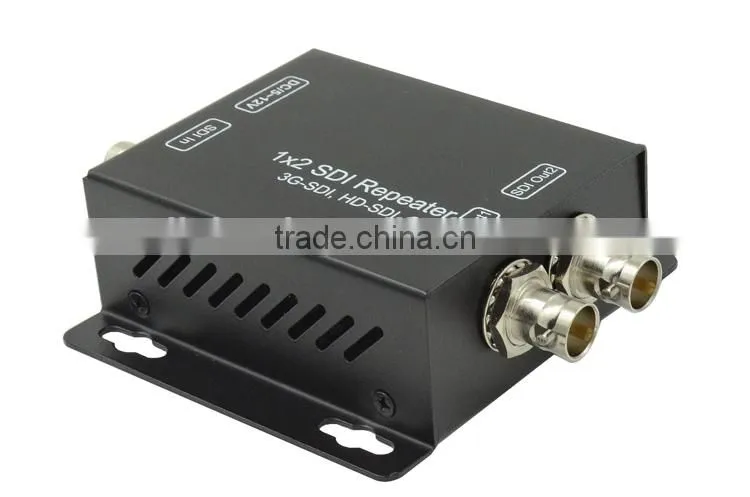

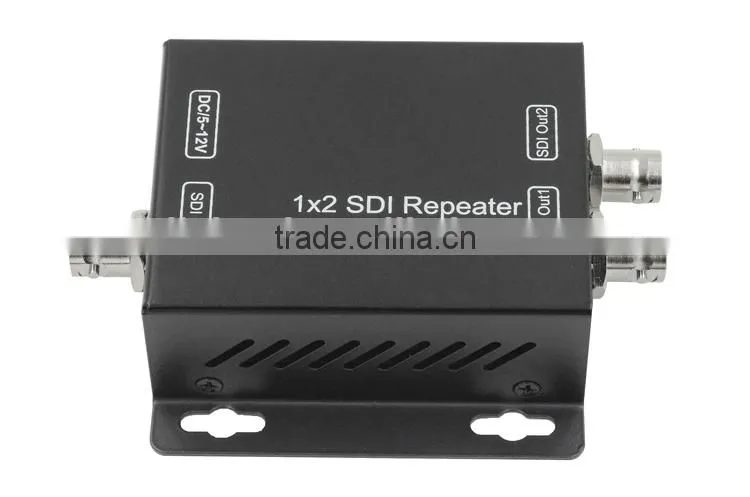

Product Overviews
Connection and Operation
1. Connect a camera or other device equipped with SDI output to 1x2 SDI repeater input.
2. Connect devices equipped with SDI inputs (e.g monitors or video processors) to the 1x2 SDI repeater outputs.
3. Plug power adapter into power jack.

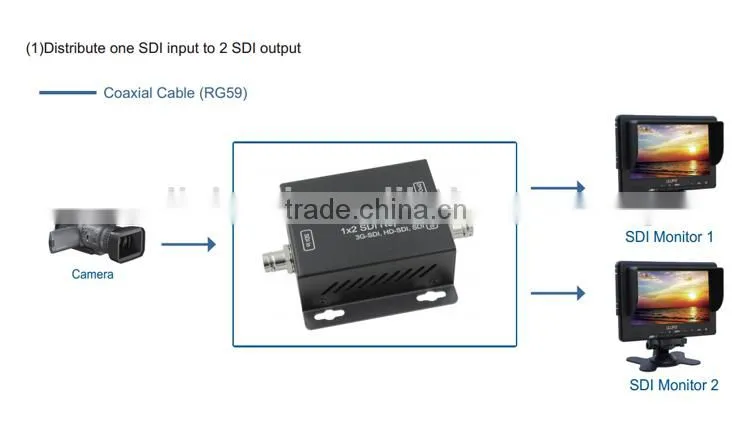

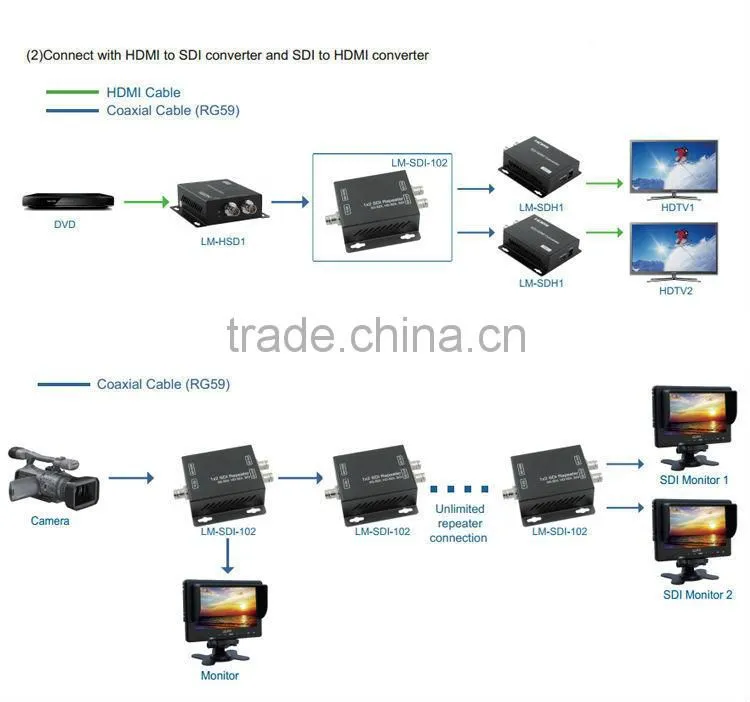

Connection Diagram
Packing Contents
1. Main Unit. 1pcs HD SDI Video Splitter 1 to 2
2. 1pcs DC 5V Power Adapter
3. 1pcs User Manual
