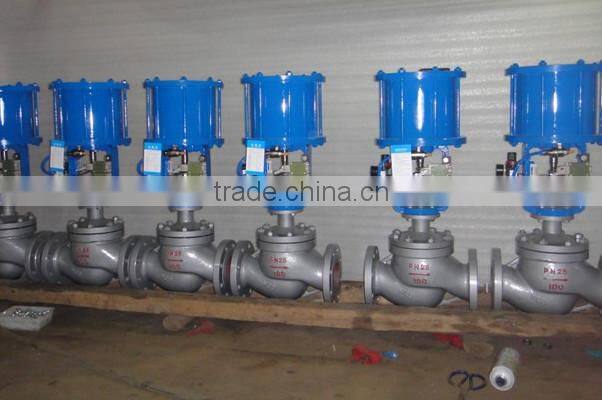

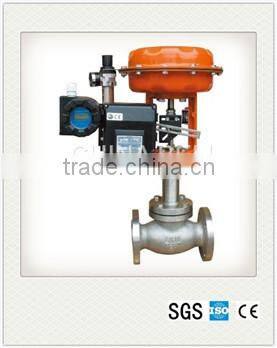

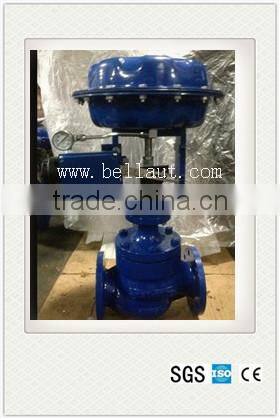

Steam Valve With Pneumatic Actuator, Pneumatic Steam Control Valve, Pneumatic Diaphragm Control Valve
- Tianjin xingang
- T/T L/C D/P D/A Money Gram Credit Card PayPal
You May Like
-
DN65 Carbon Steel Pneumatic Globe Valve (Flange End )
-
GOST Cast Steel Pneumatic Globe Valve Price Low
-
Pneumatic Actuator Globe Type Pressure Control Valve
-
Pneumatic Flanged Cast Steel/Stainless Steel Globe Valve
-
Casting Iron Standard Pneumatic Control Valve Globe Valve
-
150LB High Quality and Reliable Pneumatic Operated Casting Steel Globe Valve
Product Details
| Standard or Nonstandard | Standard | Structure | Control | |
| Pressure | Medium Pressure | Power | Pneumatic | |
| Material | Stainless Steel | Temperature of Media | High Temperature | |
| Media | Gas | Port Size | 1"-8" | |
| Place of Origin | Tianjin, China | Model Number | BZHP,BZHN,BZHM | |
| Brand Name | BELL | Application | General |
Product Description
steam valve with pneumatic actuator, pneumatic steam control valve, pneumatic diaphragm control valve
Overview
Pneumatic diaphragm control valve is the terminal industrial process measurement and control system control device, is composed by pneumatic diaphragm actuator, direct through single-seat,double seat and sleeve valve, etc., which can automatically change the valve trim position according to the control signal system , changing the flow area between the valve trim and the valve seat, to change the valve drag coefficient, to realize the regulation for the medium flow, pressure and level and other process parameters adjustment.
Pneumatic diaphragm valve use dual-oriented structure, equipped with multiple spring actuator, with a compact, light weight, sensitive, valve capacity big, flow characteristics of precision, easy to disassembly. Widely used for precise control of gas, liquid, steam and other media, process parameters such as pressure, flow, temperature, level maintained at a set value. Especially for the smaller amount of pressure and small leakage workplace.
Performance
pneumatic double seat control valve dimension
| DN | 25 | 32 | 40 | 50 | 65 | 80 | 100 | 125 | 150 | 200 | 250 | 300 | |
| L | 1.6MPa | 185 | 200 | 220 | 250 | 275 | 300 | 350 | 410 | 450 | 550 | 670 | 770 |
| 4.0MPa | 190 | 210 | 230 | 255 | 285 | 310 | 355 | 425 | 460 | 560 | 740 | 803 | |
| 6.4MPa | 200 | 210 | 235 | 265 | 295 | 320 | 370 | 440 | 475 | 570 | 750 | 819 | |
| H | Normal temperature type | 450 | 453 | 573 | 578 | 634 | 644 | 656 | 781 | 791 | 833 | 1443 | 1519 |
| Air cooling fin type | 586 | 589 | 701 | 706 | 797 | 807 | 819 | 978 | 988 | 1030 | 1745 | 1765 | |
| A | 285 | 285 | 360 | 470 | 620 | ||||||||
Application

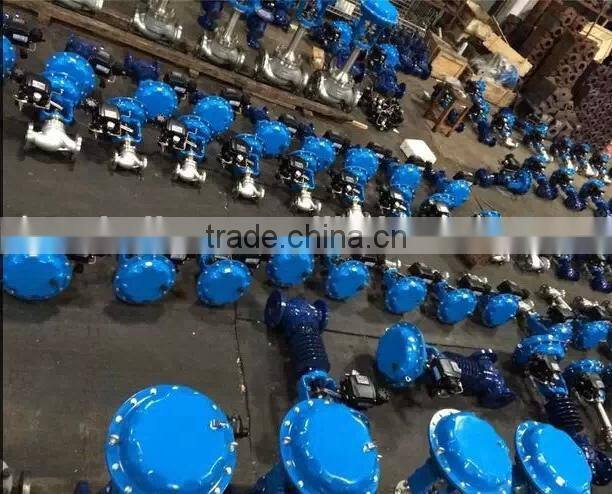

Our office and product packaging
