Home > Products > Pneumatic Control Valve > 3 Way Pneumatic Ball Valve
3 Way Pneumatic Ball Valve
US$ 100 - 2,000
/ Set
1 Set(Min. Order)
- Tianjin port China or according to request
- T/T L/C D/P D/A Money Gram Credit Card PayPal
You May Like
Product Details
| Standard or Nonstandard | Standard | Structure | Ball | |
| Pressure | Medium Pressure | Power | Pneumatic | |
| Material | Stainless Steel | Temperature of Media | Normal Temperature | |
| Media | Water | Port Size | 1/2"--12" | |
| Place of Origin | Tianjin, China | Model Number | Bell | |
| Brand Name | BELL |
Product Description
Specifications
1.3 way Pneumatic Ball Valve2.Forty years production experience
3.High quality
4.Stable performance
5.Long service life
3 way Ball Valve with Pneumatic Actuator,Pneumatic Ball Valve
3 way Pneumatic Ball Valve

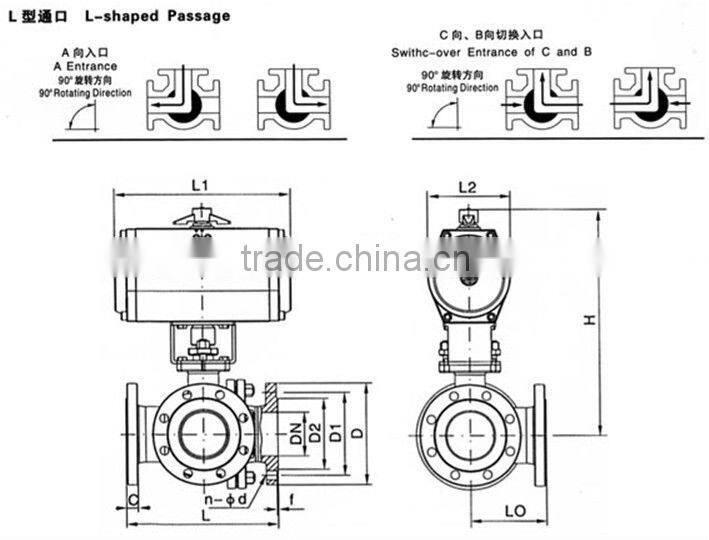

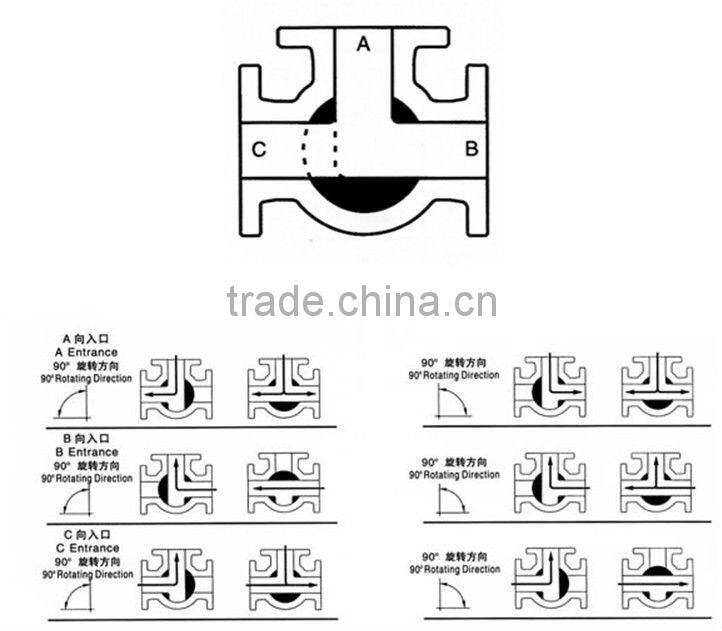

Ball three medium flow diagram Sketch of Medium Flow-direction of Three-way Ball Valve
Ball three links for the streaming or the convergence of the flow, is a second valve seat surface or all of the multi-port ball valve, either pass the entrance of the mouth can be used without leakage. Links can be made of L-type pass the mouth can also be made from T-pass port.
