New Developed Dynamic Inclinometer Intergrated Three axis Gyro Compensation Algorithm For Dynamic Measurement

1pcs/inner box , 100pcs /ctn

New Developed Dynamic Inclinometer  Intergrated Three axis Gyro Compensation Algorithm For Dynamic Measurement

Desc.

Most inlcinometers in the market performs static measurement, they would be affected much if there is acceleration. DCA inclinometer, developped by RION specially for dynamic measurement, is integrated with built-in three axis gyroscope compensation algorithm, ensuring the dynamic accuracy of any X/Y/Z axis with acceleration; and it would be more accutate when measure statically. And it could output original angle rate data if you need.

Features :

Range---------------- ±90deg
Axis--------------------- X,Y
Resolution------------ 0.01deg
Static Accuracy(@25℃) ------------0.1
Dynamic Accuracy(@25℃) <1
Long term stability -------------------0.05
Zero temp.drift ------------------------±0.01
Starting time--------------------------- 0.5s
Response time -----------------------0.02s
Output rate------------------------------ 5Hz~100Hz(optional)
Output signal ---------------------------RS232/RS485/RS422/TTL (optional )
Working temp. -------------------------40~+85℃
Dimension ------------------------------L89×W31×H24mm
Water proof------------------------------ IP67

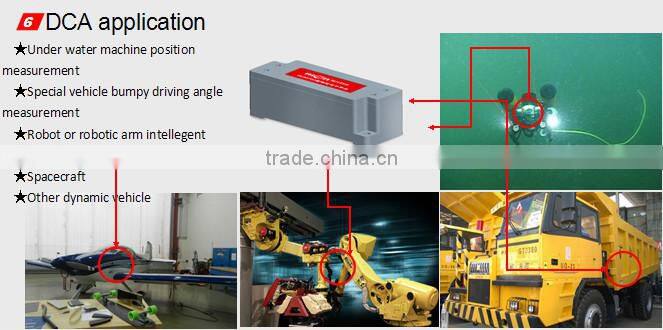

Application :

• Under water machine position measurement
• Special vehicle bumpy driving angle measurement
• Robot or robotic arm intellegent control
• Space craft
• Other dynamic vehicle
