Specifications
1. Analog balanced servo inclinometer ;2. No-contact MEMS Based Principle;
3. Resolution: 0.0001deg .

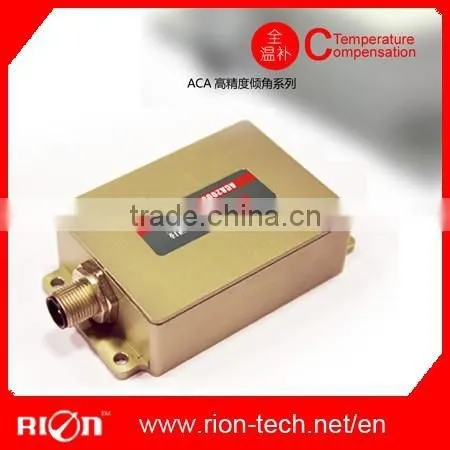

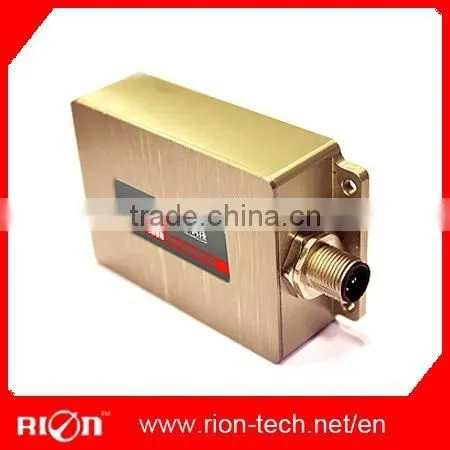

ACA2000 Super High Accuracy Dual axis Digital Servo Inclinometer Price With +/-30deg range & Temperature Sensor Output , IP67 Protection
SPECIFICATIONS
Item No.:ACA2000
Description: High Accuracy Digital Type Dual-Axis Inclinometer
with Full Temperature Compensation
Version:Ver.08
Production implementation standard reference
- Enterprise quality system standards: ISO9001: 2008 standard (certification number: 128101)
- Tilt sensor production standards: GB / T 191 SJ 20873-2003 inclinometer general specification of Level
- The Academy of metrology and quality inspection Calibrated in accordance to: JJF1119-2004 Electronic Level calibration Specification
- Gyro accelerometer test standard: QJ 2318-92 Gyro accelerometer test methods
- requirements
- Product environmental testing standards: GJB150
- Electromagnetic anti-interference test standards: GB / T 17626
General Description
ACA2000 is a analog balanced servo inclinometer which manufactured by Rion company, the principle is composed of the non-contact displacement sensor, torque motor, error & amplifier circuit, the feedback circuit and cantilever mass five parts. This series inclinometer accuracy is far superior than the inclinometer relative tothe electrolyte principle or the capacitance principle on the nonlinearity,repeatability, hysteresis, temperature drift and working temperature, resistance shock anti-vibrationand other properties.Internal integration of the 24 ARM high-end system,resolution 0.0001 ° ,precision 0.001 ° ,temperature drift: 0.0008 ° C / ° ,response frequencies up to 300Hz (baud rate 115200),it is a highly competitive industry product nowadays .Non-contact installation features make ACA2000 with superior system integration, Simply fix the sensor on the measured surface by screws , then can automatically calculate the object posture inclination, easy to use , no need to find the relative change two surfaces for mounting . With strong ability resistance to external electromagnetic interference and to withstand shock and vibration,in the domestic counterparts products with absolute competitive advantage, specialized in application in the industrial and military fields where the high-end user requirements.
Features
- Dual-Axis Inclinometer
- Measuring Range :±1~±90° optional
- Response frequence: 300Hz
- Wide voltage input: 9~15V
- Wide temperature working: -40~+85°C
- Resolution: 0.0001°
- Size:93.8×55.5×20.5mm(customized)
- IP67 protection class
- Output mode RS232,RS485,TTL,PWM are optional
- Water-proof air-plug
Application
- Engineering vehicles automatic leveling
- Bridge & dam detection
- Precise equipment level control
- Medical facilities angle control
- Underground drill posture navigation
- Railway gauging rule , gauge equipment leveling
- Based on the angle direction measurement
- Geological equipment inclined monitoring
- Directional satellite communications antenna pitching angle measurement
Our Company & Workshop View :
Certificates & Test Reports :
We can offer :
- Reliable high quality products and services
- Perfect whole system application solution
- Strong technical support before or after sales service
- Extend strong sales teams & distributors global
- OEM products as buyer's requests
Our main products :
- Single/Dual-axis High accuracy Inclinometer (digital , current , voltage, CAN output type etc. )
- 2D / 3D Electronic Compass Sensor (RS232, RS485,TTL output, etc.)
- 1-Axis , 2-Axis, 3-Axis Accelerometer (digital , current , voltage output, etc.)
- 1-Axis , 2-Axis, 3-Axis Gyroscope((digital , current , voltage output, etc.)
- Single /Dual / Three-Axis Angular Gyro Sensor (RS232, RS485,TTL output, etc.)
- High performance MEMS Mini AHRS ( Attitude Heading Reference System )
- Other Agent Products PNI...etc
Order Process :
Before order pls contact us for confirm detailed informaiton such as model ,price ,lead time ...etc .
Payment ways :
T/T, WU or Paypal;
Delivery methods & Time :
DHL takes 3-5days , Fedex takes 2-7 days , UPS takes 3-7day , EMS takes 10-25days ;
Quality Policy :
We gurantee 1 year in free charge .
Storage :
Note usually we don't make any items in stock , samples customize time need around 3-7days .
Other more information please visit our website :
Now please contact us through below methods for your any requirement or comments !
Contact person : Ms kity(sales)
SHEN ZHEN RION TECHNOLOGY CO.,LTD
Factory Address:
3F/Block 5, HuaFeng Tech- Park, Xin'an Road 6 #, BaoAn Dis. Shenzhen, China
Tel : +86-755-29657137 ext 807 Cell phone: 15625295088
Fax : +86-755-29123494 Skype: sz_rion_tech
RIONWEB: ALIWEB: https://img13.fr-trading.com
