Specifications
1. Superior System Integration;2. No- contact Installation ;
3. With Strong Ability Resistance;
4. MESM based principle .
ACA616T Ultra Precision Single axis Slope Meter With Digital Output (RS232/RS485/TTL Optional) High Resolution 0.001deg
General Description
ACA616T is a full temperature compensation & high precision single-axis inclinometer which developed by Rion company based on high precision tilt angle platform ,the excellent temperature stability, can maintainhigher measurement accuracy in a wide temperature range of -40-85 degrees environment, is more suitable for long-term monitoring and leveling of the field equipment. In addition the system built-in high-precision 24it A / D differential converter, meanwhile by 5 filtering algorithm, which can measure the output of the sensor tilt and pitch angle relative to the horizontal. The output interface RS485, RS232, TTL, PWM or CAN 2.0B optional.Non-contact installation features make ACA616T with superior system integration, Simply fix the sensor on the measured surface by screws , then can automatically calculate the object posture inclination, easy to use , no need to find the relative change two surfaces for mounting . With strong ability resistance to external electromagnetic interference and to withstand shock and vibration,in the domestic counterparts products with absolute competitive advantage, specialized in application in the industrial and military fields where the high-end user requirements.
Features
- Single-Axis Inclinometer
- Measuring Range :±1~±30° optional
- Accuracy: refer to the technical data
- Wide voltage input: 9~36V
- Wide temperature working: -40~+85°C
- IP67 protection class
- Highly anti-vibration performance >2000g
- High Resolution: 0.001°
- Water-proof air-plug

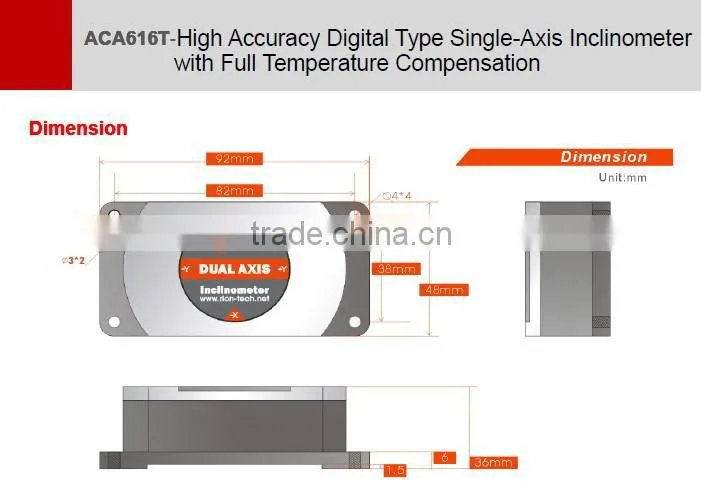

- Size : 92×48×36mm

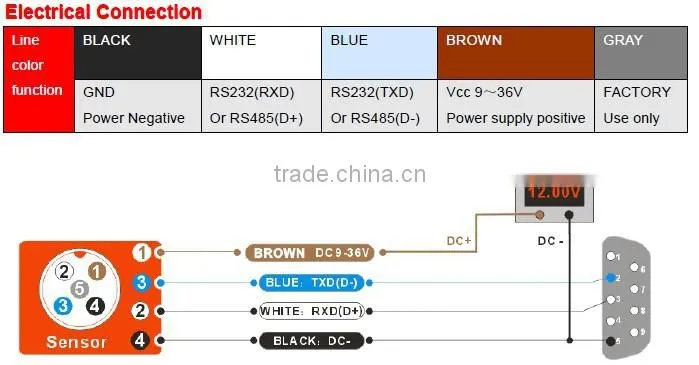

- Output mode RS232,RS485,RS422,TTL,CAN 2.0 are optional
Application:
- Engineering vehicles automatic leveling
- Bridge & dam detection
- Laser equipment position
- Medical facilities angle control
- Underground drill posture navigation
- Railway gauging rule , gauge equipment leveling
- Precise machine tool level control
- Geological equipment inclined monitoring
- Directional satellite communications antenna pitching angle measurement
