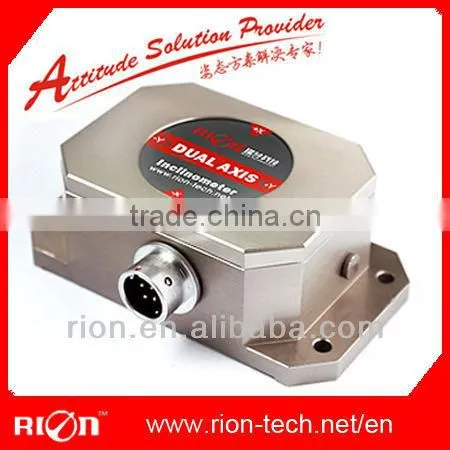

HCA518T Single axis High Accuracy Analog Output Type Level Sensor With Stable Data
General Description
SCA528T is a high accuracydual-axis inclinometer, output adopt the standard industry electronic interface 4 ~ 20mA, can be long-distance transmission of up to 2000 meters. The product uses the latest MEMS hightechnology for production,internal using high-resolution differential digital-to-analog converter, by the internal MCU system secondary linearity and temperature correction, customers no need to do secondary linearity correction, meanwhile also reduces the error caused by environmental changes on the accuracy of the product. Small measuring range, the highest accurate up to 0.003 ° (bigger measuring range index, please refer to product technical data),
HCA528T inclinometer use the dynamic zero test compensation technology to ensure product Quick Launch, high resolution ,stable data, good capacity to bear shock & vibration, built-in anti-RF, adopts anti-electromagnetic interference circuit to ensure that the output signal to a higher anti-interference ,in addition to this product is better than the similar market product on software technical data, on the reliability and stability the product is also using the high-end application-level MCU,three-proofing PCB board, imported cable, wide temperature shielded metal enclosure and other measures to improve product industrial level,to ensure the product can be long-term & safetyextraordinary operation in harsh environments.
Features
- Dual-Axis Inclinometer
- Measuring Range :±1~±90° optional
- Wide voltage input: 9~36V
- Output interface : 4-20mA
- Wide temperature working: -40~+85℃
- IP67 protection class
- Highly anti-vibration performance >2000g
- Resolution: 0.001°

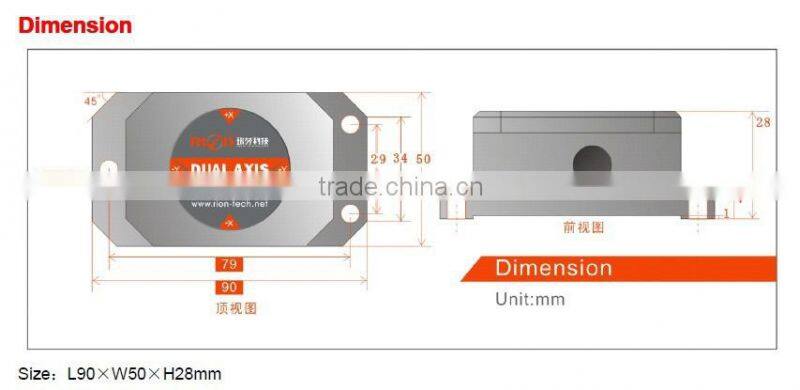

- Small Volume : L90×W50×H28mm(customized)
Application
- Engineering vehicles automatic leveling
- Bridge & dam detection
- Aerial platform vehicle,lifter safety & protection
- Medical facilities angle control
- Underground drill posture navigation
- Railway gauging rule , gauge equipment leveling
- Mining machinary, oil-well drilling equipment
- Geological equipment inclined monitoring
- Directional satellite communications antenna pitching angle measurement
RION Technology Co., Ltd. is located in a fantastic city - Shenzhen. Our company is
a high technology company that integrates research, development, production and
sale, and is mainly engaged in the sale of inclinometer sensors, digital compasses,
digital dipmeters and acceleration sensors. These products are widely used in many
industrial control fields, such as automobiles, ships, airplanes, railways, medical facilities,
dam safety monitoring, oil drilling, coal mining and ocean surveying. Our company has
established good business relationships with many international famous companies.
We adhere to the service guideline of "Client-centered". "Client uppermost, credit first,
service best" is our business philosophy. Our company provides accurate, efficient,
civilized and complete services for clients.
Let us provide you with the best products. To save purchasing cost and time, contact us now.
Our Company & Workshop View :
Certificates & Test Reports :
Order Process :
Before order pls contact us for confirm detailed informaiton such as model ,price ,lead time ...etc .
Payment ways :
T/T, WU or Paypal;
Delivery methods & Time :
DHL takes 3-5days , Fedex takes 2-7 days , UPS takes 3-7day , EMS takes 10-25days ;
Quality Policy :
We gurantee 1 year in free charge .
Storage :
Note usually we don't make any items in stock , samples customize time need around 3-7days .
