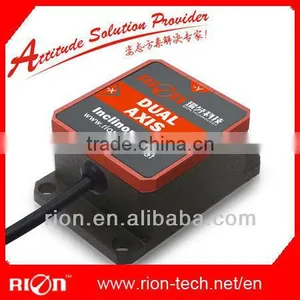

LCA328T Low Cost 2 axis 4-20mA Level Sensor With Built-in Latest MEMS Productive Technology , No Contact Measuring Principle

1pcs/box with sponge ,100pcs/ctn

Specifications

1.Resolution: 0.05deg
2.IP67 protection class
3.Highly anti-vibration performance >3500g
4.Small Volume : 55*37*24mm

LCA328T Low Cost 2 axis 4-20mA Level Sensor With Built-in Latest MEMS Productive Technology , No Contact Measuring Principle



General Description



The LCA328T series inclinometer which developed by Rion Company is a small volume MEMSdual-axis tilt sensor, because of built-in the latest MEMS production technology inclination unit, small size, long distance transmission can up to over 2000 Meters, strong ability of resisting external electromagnet interference, can be adapted to long-term working in the industry harsh environment.

This product adopts the non-contact measuring principle, can real-time output the current attitude angle, simple to use, no need to find the relative variation of the two surface for mounting. It is a ideal choice for Industrial automation control and platform measuring attitude !



Features

1.Dual-Axis Inclinometer

2.Measuring range±0°~±90° optional

3.Accuracy: refer to the technical data

4.Wide voltage input: 9~36V

5.Output mode: 4~20mA

6.Wide temperature working: -40~+85°C

7.IP67 protection class

8.Highly anti-vibration performance >3500g

9.Resolution: 0.05°

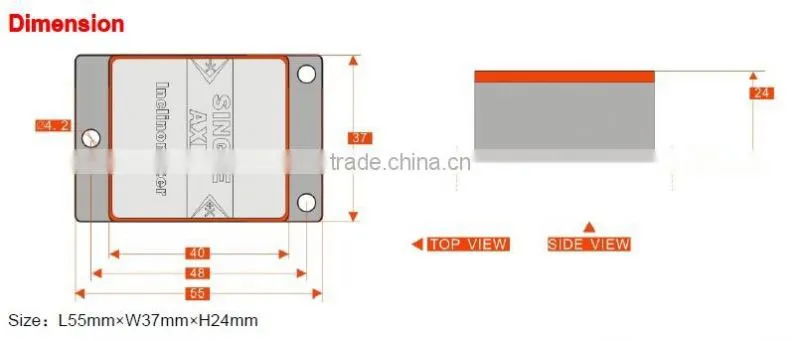

10Small Volume : 55×37×24mm(customized)



Application:

1.Electric blind man chair leveling

2.Cloud deck operating monitor

3.Satellite antenna positioning

4. Medical equipment leveling

5.Car Chassis Measurement

6. Four - wheeled positioning system

ing mechanical measurement of dip angle
