Product Description
SCA126T-WL is a wireless transmission type dual-axis inclinometer launched by RION company to the field of industrial control,
Is composed of the measurement transmitter and the receiver two parts, using wireless ISM all band operating frequency, in line with the global ISM band communications standard, no need to apply frequency point. The carrier frequency is within 400-480MHz. Open area in visual communication distance up to 200 meters. GFSK modulation method and adopt efficiency forward error correction channel encoding technology, to improve the ability of the data against burst interference and random interference. Acceleration measurement structure is made of aluminum alloy shell, fully waterproof structure, long-term work in the outdoor monitoring applications.

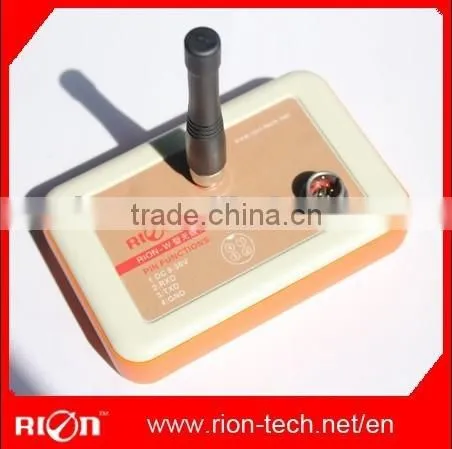

This product is composed of wireless inclinometer and wireless data receiver two parts, both of two parts along with receiving antenna and the air connector components, through RS232/RS485 interface port the receiver output the acceleration measurement values which received by wireless module, the user simply to provide the power supply and collecting its digital signal then can real-time measure and analyze the remote object accelerometer and vibration changes
The inclinometer built-in high-precision 16bit A / D differential converter, through 5 filtering algorithm, which can measure the angle of sensor output relative to the horizontal tilt and pitch tilt. The output interface RS485, RS232, RS422, TTL, are optional.Because of Built in ADI company’s high precision digital temperature sensor that can correct the sensor temperature drift in accordance with the changes of the built-in temperature sensor, to ensure high repeatability of the product in the low-temperature and high-temperature environment. The output frequency response standards up to 18Hz, for higher response frequency Division we can customize according to the user requests. The products are truly industrial-grade products, reliable performance, scalability, and a variety of output options. Suitable for a variety of harsh industrial control environment.
Features
Dual-Axis Inclinometer
Measuring Range :±1~±90° optional
Accuracy: refer to the technical data
Wide voltage input: 9~36V
Wide temperature working: -40~+85℃
Resolution: 0.01°
IP67 protection class
Highly anti-vibration performance >2000g
200M wireless transmission
Small size : 97×50×48.5mm
Output mode RS232/RS485/RS422 (optional)
Application
Satellite positioning Search
Rail-mobile monitoring
engineering mechanical measurement of dip angle
oil-well drilling equipment
Radar detection of vehicle platform
Underground drill posture navigation
Gun Barrel angle measurement in early shooting
Based on the angle direction measurement
Satellite communications vehicle posture detection
Shield pipe jacking application
Ship’s navigation posture measurement
Geological equipment inclined monitoring
Product Show
Shenzhen RION, as a positon sensor manufacturer and solution expert, attaches much importance to products reseach and develop which spend over 20% of annual profit. We have the most R&D personnel and best technology comparing with our peer to raise our up on the high level of sensor field. And we orientate ourself to market tightly and engage ourself into providing the most considerate and professional solution and service to customers. RION introduce advanced equipment, such as TEMP&HUMI chamber, salt spray corrosion test chamber, high precision automatic turntable, high precision marble checking platform, digital thermostat drying oven, electrostatic discharge tester and 360 degree mechanical turntable etc, and set up Environmental Testing Laboratory, Product Aging Chamber, 2D&3D Posture Calibration Room and Shake&Impact Test Room for R&D and factory test.

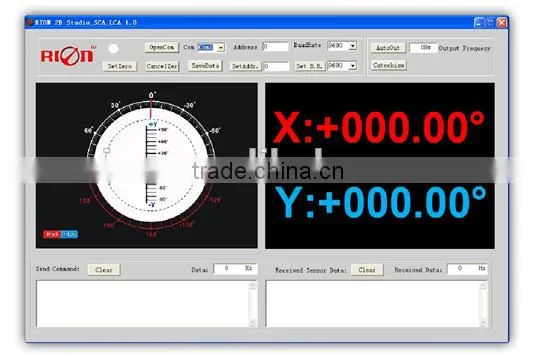

Beside owning excellent hardware, RION also developed 15 sets of software independently and keep developing, including multi-sensor monitor software, remote sensor monitor software, synchronous dynamic l tracking 3D presentation software, tilt switch early warning and debugging software and sensor serial port setting presentation software etc which could apply to XP, Win7, Win8, WinCE and Android system. RION, owning talent and diligent personnel, advanced technology and market-orientated strategy, engages itself in offerring you the most considerate and professional solution and service of position sensor.
You satisfaction is our ultimate destiny.
Certificates & Honor
Packaging: carton with sponge
- Delivery time: within 7 business days for common order after we receive the full payment
- Shipping time: 3-5 work days by DHL/UPS/FEDEX/TNT; 5-7 work days by EMS.
Pre-sale service
- Evaluate your application, recommend the most suitable item;
- Make you fully understand the products, usage and maitenance;
- Answer all your questions, and let you have no doubt before make any decision;
- Adjust, revise or redesign our products to consist with the application(for customized service);
Sales service
- Recommend the best payment term and shipping term for you;
- Make official quotation and PI with company Stamp;
- Keep you posted about the products producing;
- Send exactly requried products on time;
- Provide tracking NO. and inform you when products leave factory and arrive destination;
Post-sale service
- Instruct products connection, installation and application;
- if anything happen to products(barely will), engineer will evaluate the problem, solve the problem or exchange malfunction item for free, make sure you get the best solution and service.
- Keep tracking the products usage and ask for suggestion and advice.
Shenzhen RION, as a positon sensor manufacturer and solution expert, attaches much importance to products reseach and develop which spend over 20% of annual profit. We have the most R&D personnel and best technology comparing with our peer to raise our up on the high level of sensor field. And we orientate ourself to market tightly and engage ourself into providing the most considerate and professional solution and service to customers. RION introduce advanced equipment, such as TEMP&HUMI chamber, salt spray corrosion test chamber, high precision automatic turntable, high precision marble checking platform, digital thermostat drying oven, electrostatic discharge tester and 360 degree mechanical turntable etc, and set up Environmental Testing Laboratory, Product Aging Chamber, 2D&3D Posture Calibration Room and Shake&Impact Test Room for R&D and factory test.
Beside owning excellent hardware, RION also developed 15 sets of software independently and keep developing, including multi-sensor monitor software, remote sensor monitor software, synchronous dynamic l tracking 3D presentation software, tilt switch early warning and debugging software and sensor serial port setting presentation software etc which could apply to XP, Win7, Win8, WinCE and Android system. RION, owning talent and diligent personnel, advanced technology and market-orientated strategy, engages itself in offerring you the most considerate and professional solution and service of position sensor.
You satisfaction is our mission.
Certificates & Honor
- How to choose suitable item: bowse our webiste and choose products by catalog, or contact us directly by email, skype, TM.
- How to buy: We accept the payment by Escrow/Alipay,including Paypal,Credit Card and T/T, WU.
- How to ship: by DHL, Fedex, UPS, EMS, TNT and ARAMEX Express mainly, we have long term and reliable logistic cooperator to ensure the safety and cost-saving
- How to apply: We provide instruction manual, software and online service to instuct you to connect, install, use and maintain our products.
- What if anything happen to products: contact us, we will evaluate the problem and instruct you, exchange the wrongly purchased item or fix the malfunction item for free...till you get the best solution.
- What if no suitable item to be found: customerized service is available.
- How to cooperate: we offer technical support, products info, samples, favorable terms&condition and sales support in concerned region.
