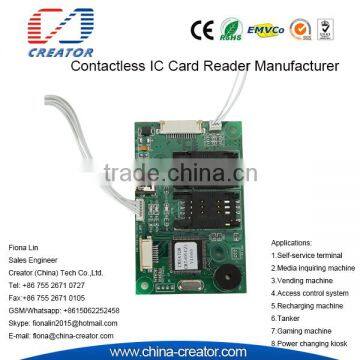

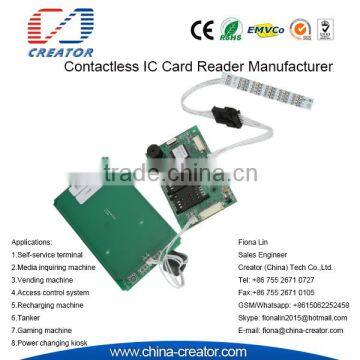

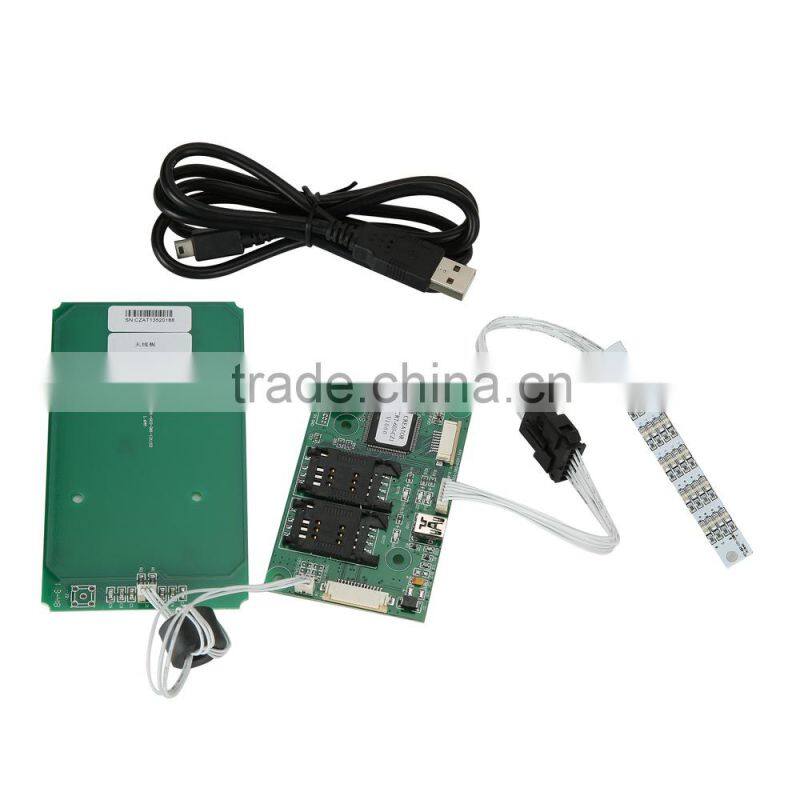

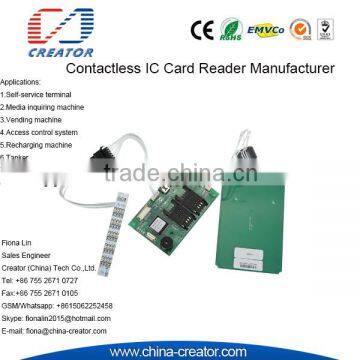

Help CenterParking System RFID Contactless Smart Card Reader Writing Module
Related Products
-
Access Security System USB Interface RFID Contactless Card ReaderNegotiableMOQ: 1 Piece -
Europe Payment Kiosk USB Interface RFID Contactless Card ReaderNegotiableMOQ: 1 Piece
-
Recharging Machine Smallest Dip Card Reader CRT-288-BNegotiableMOQ: 1 Piece
-
Recharging Machine Companct Structure Manual Card Reader CRT-288-BNegotiableMOQ: 1 Piece
-
Recharging Machine Compact Structure Dip Card Reader CRT-288-BNegotiableMOQ: 1 Piece
Contactless Card Reader CRT-603
1. CRT-603-CZ1 is a contactless RF module based on 13.56MHZ through USB interface.
2. Support ISO14443-3 MIFARE serial, including Mifare I S50, S70, UL card , Mifare PLUS, Mifare desfire.
3. Support ISO14443-4 Type A and Type B, and compliance with ISO7816 protocol.
4. Adapt for outside enviorment with feature of high security, reliability and robust life time.
5. Be available for application in electrics, telecommunication, petroleum and financial industry.
Features:
High speed RFID card reading/writing module
Mifare & Light standard compliant
High reliability, low power consumption design
Independent RFID board and main board
Auto-scan RFID card and anti-collision of multiple cards
Support WindowsXP and Windows7
Data storing space for card reading, writing and other functions
EMV & PBOC certificated
Provide various customized service
Applications:
1. ATM
2. Automatic fare collection (AFC) system
3. ID identification system
4. Card Management System
5. Meter retail system
6. Parking system
7. Accesss control system
8. Security terminal
9. Payment kiosk
Competitive Advantage:
USB2.0 full speed, PC/SC communication, CCID driver, easy operation
Support contactless card conforming to ISO14443-3/4 criterion typeA&typeB card
Cards anti-collision function : Error and certain information can be reported once more than one card appear simultaneously
Conforming to banking payment application, to ensure an easier and safer payment
With SAM slot, support two SAM cards ( ISO7816 compliance) reading &writing
Support Windows XP and Windows 7 operation system
EMV contactless Level 1 Certificated
PBOC 3.0 contactless certified
Specifications:
| Card Type |
IC card: ISO7816-1,2,3,4 Support T=0,T=1 PSAM Card RFID Card: ISO14443Type A & B Support Mifare I S50,S70,UL Card,Mifare Plus,Mifare desfire |
| Communication Protocol | PC/SC Protocol, CCID Driver |
| Communication Interface | USB2.0 |
| Power Supply | DC5V ± 5% |
| Operation current | Static:200 mA Peak: 250 mA |
| Reading distance | 70mm(depends on card) |
| Operating frequency | 13.56MHz |
| Environmental conditions |
Operation:-10 ~ 60℃/0 ~ 95%RH (Non condensing) Storage:-40 ~ 70℃/0 ~ 95%RH (Non condensing) |
| Weight | About 120g |
| Packaging Details: | Each 24pcs in a carton |
|---|---|
| Delivery Detail: | Sample:2-3days;Bulk: within 20days after payment received |
