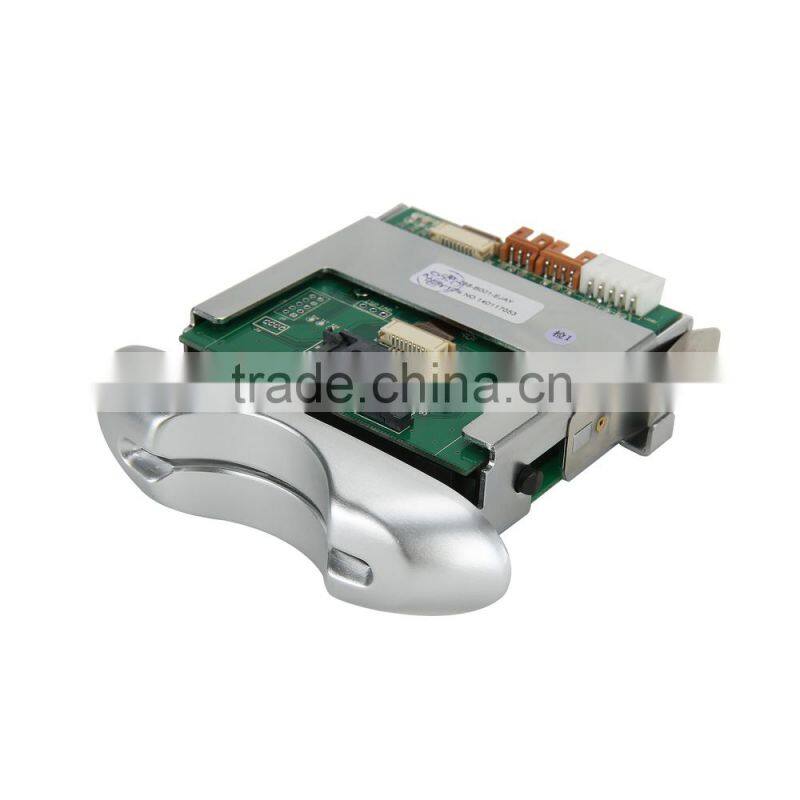

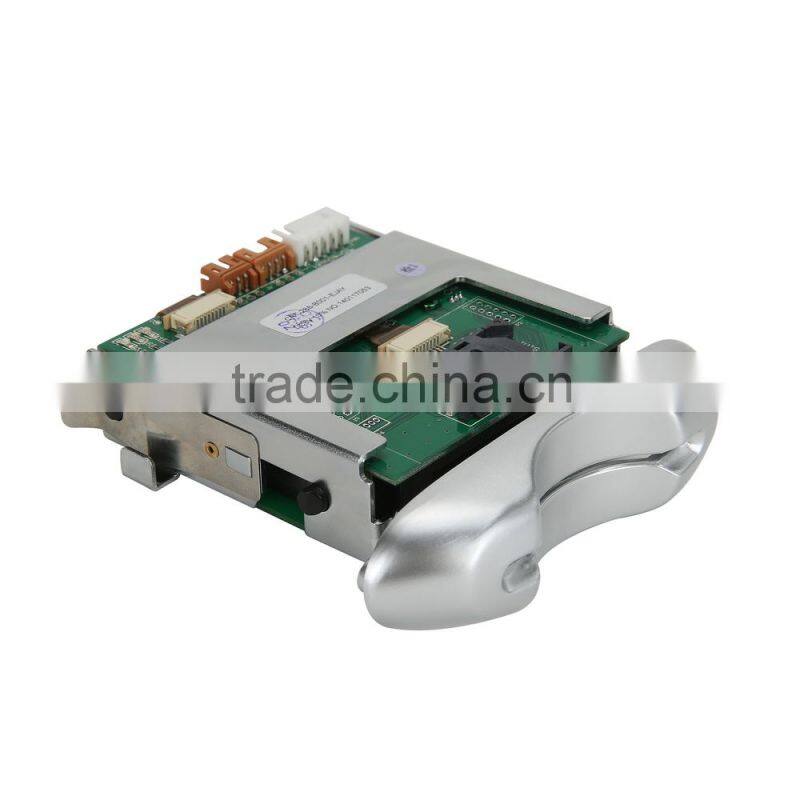

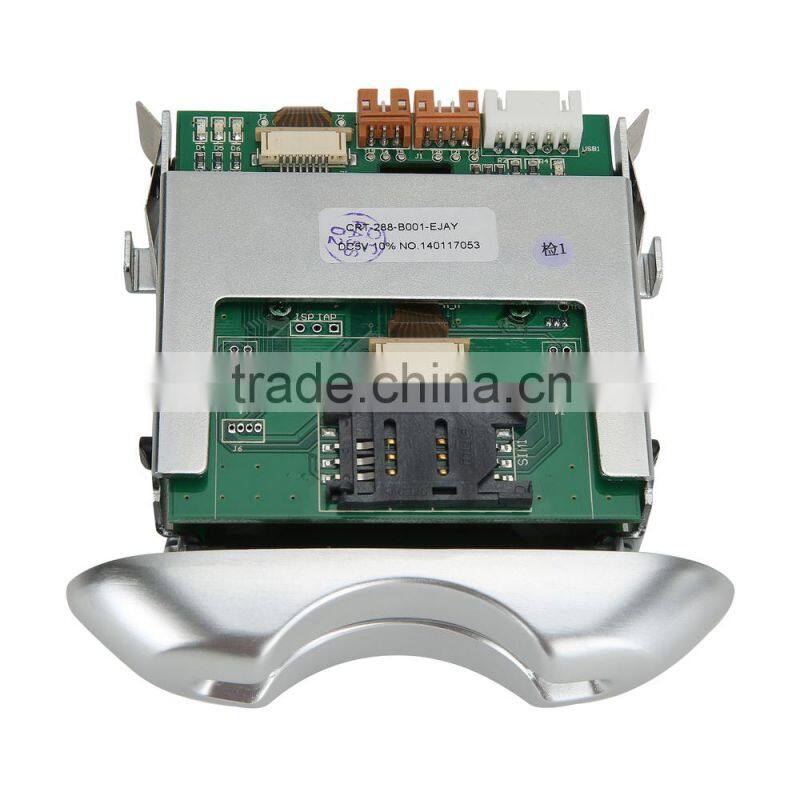

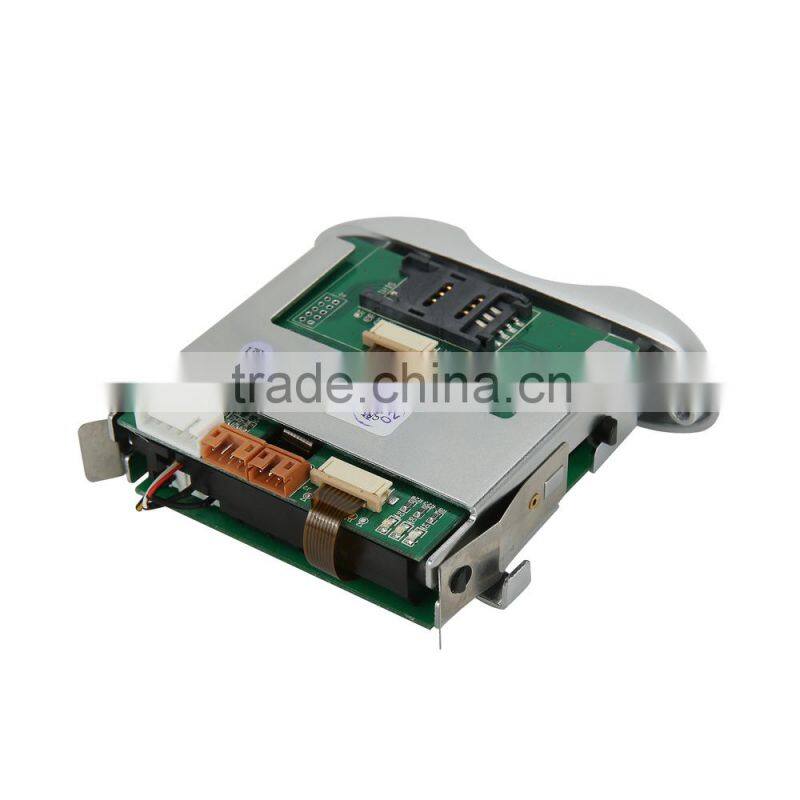

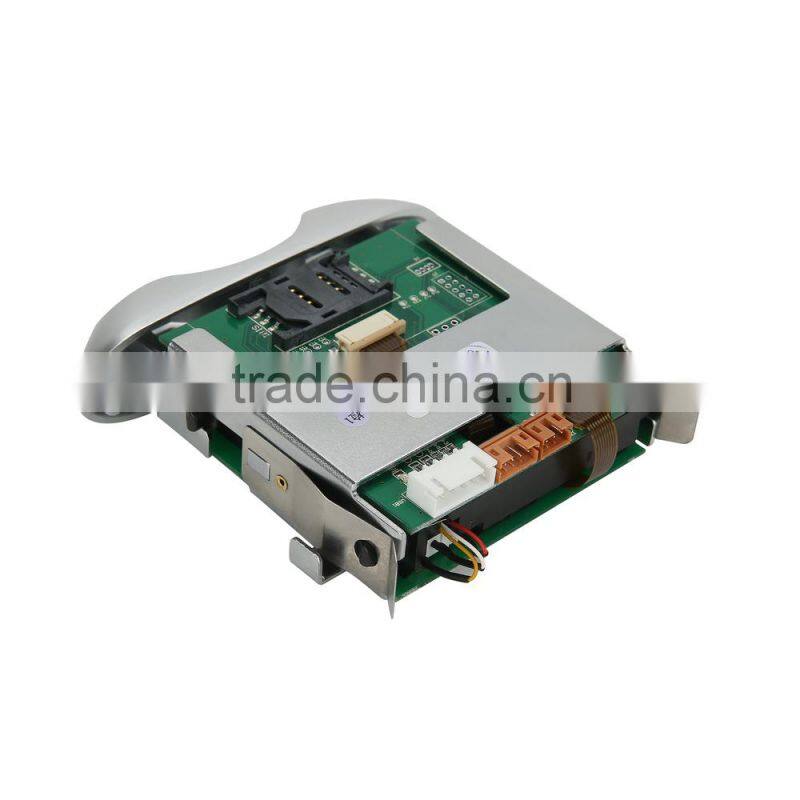

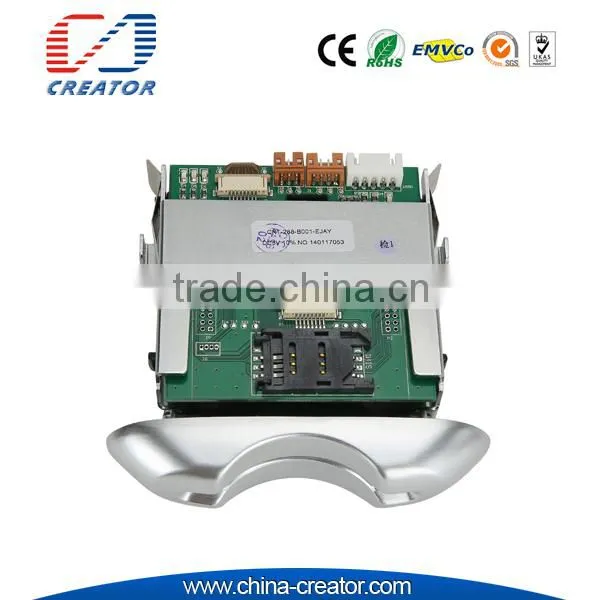

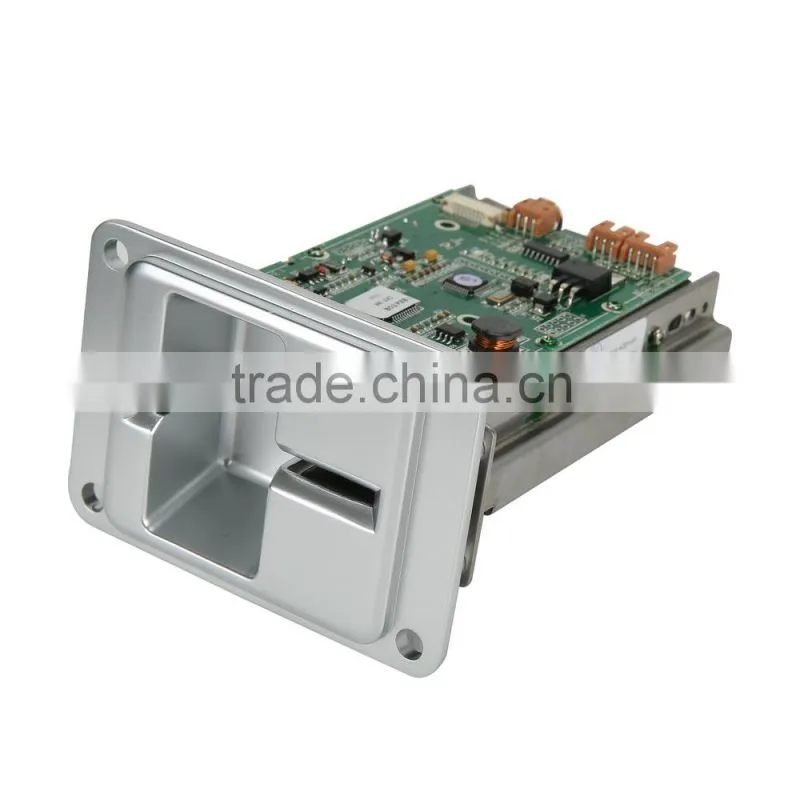

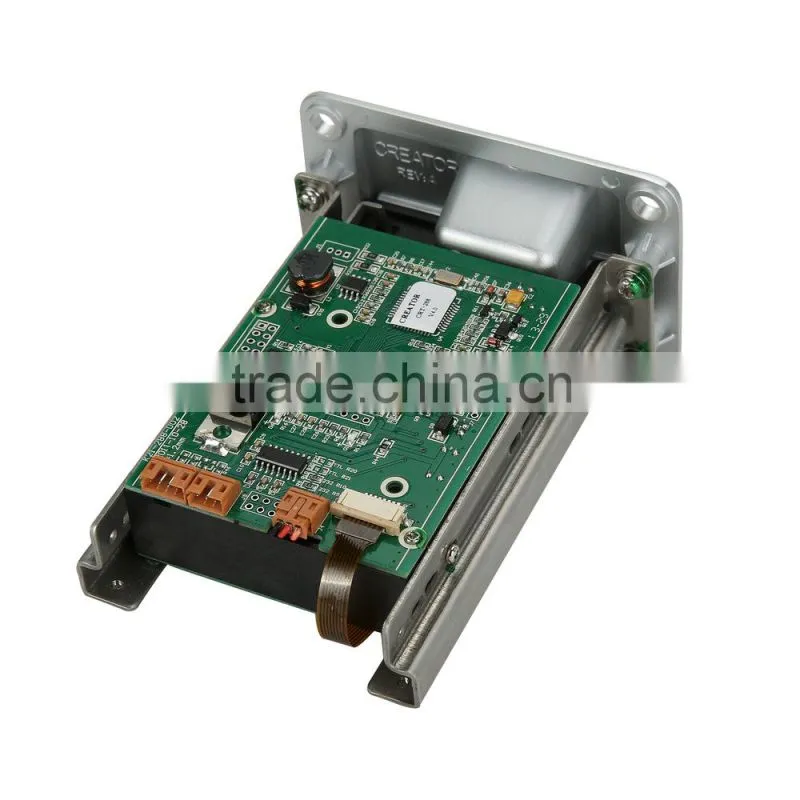

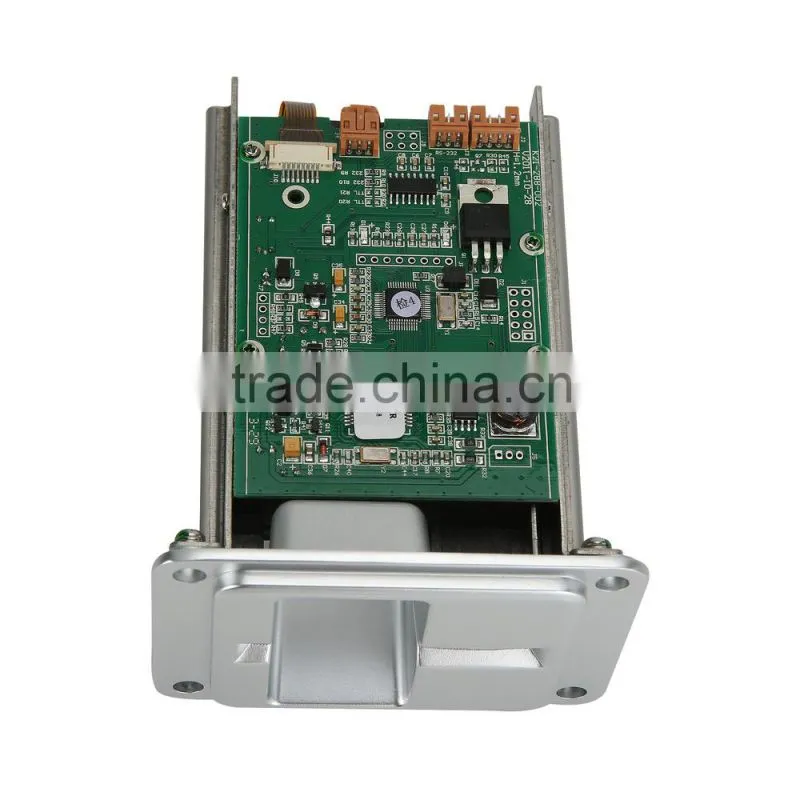

Dip Card Reader CRT-288B
Model: CRT-288B
Quick Details
- CRT-288B series are manul Insert Hybrid Card Reader for RFID/IC card operation, with special baffle design for protecting reader from foreign object
Features
Manul insert card reader CRT-288B has below main features:
- IC&RF card reading&writing
- RS232/USB interface
- DC 5V±10%
- Special baffle design for protecting reader from foreign object
- Small dimensions, easy maintenance, cost efficient
- Customization services
- EMV certified
Applications
- Self-service terminal
- Multimedia phone
- Recharging machine
- Automatic vending machine
- Gaming machine
- Information inquiry machine
- Payment terminals
- Parking system
Specifications
Item |
Description |
Contact smart card |
ISO 7816-1,2,3,4 |
CPU card (T=0, T=1) | |
T=0,T=1 PSAM Card SLE4428,SLE4442,AT24C01,24C02,24C256 | |
Contactless smart card (optional) |
ISO 14443 TYPE A&B card Mifare I S50,S70,UL card |
Interface |
RS232/USB |
Power |
DC 5V±10% |
Life time |
Micro switch: 500,000 times Min IC contact: 300,000 times Min |
Environment conditions |
Operation: 0℃~50℃,0~90% RH (Non condensing) |
Storage: -25℃~80℃,0~95% RH (Non condensing) | |
Dimension |
85.4 (W) * 29.3mm (H) * 96.9mm (L) |
Weight |
Approx 200g |
Competitive Advantages
- RFID/IC card read/write
- Special buffle design to protect reader from foreign object
- Compact,easy maintenance
- PSAM option
- Customization services
- ROHS appliance
- EMV&PBOC certified

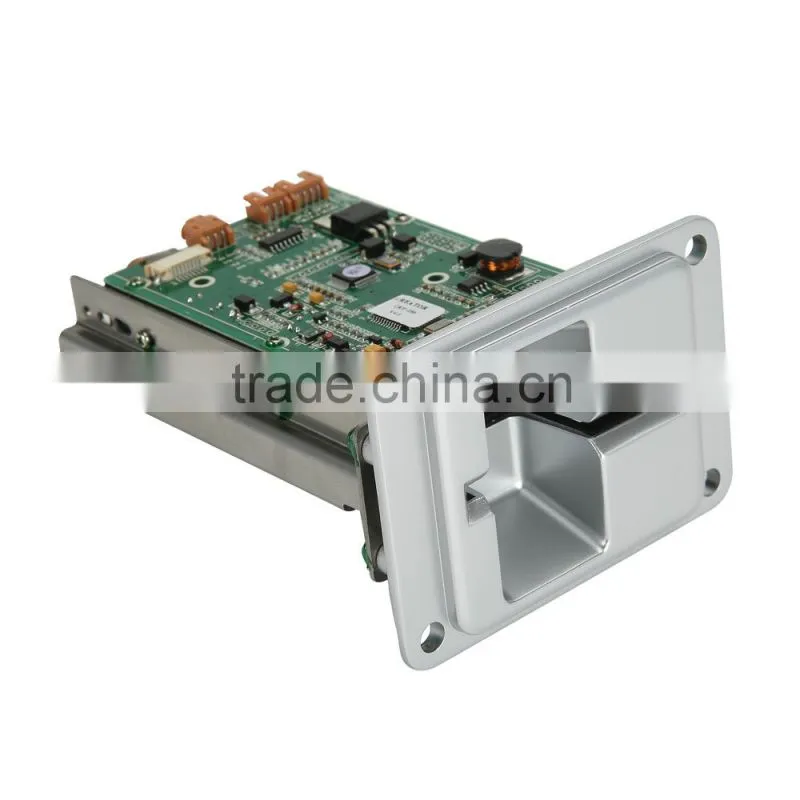

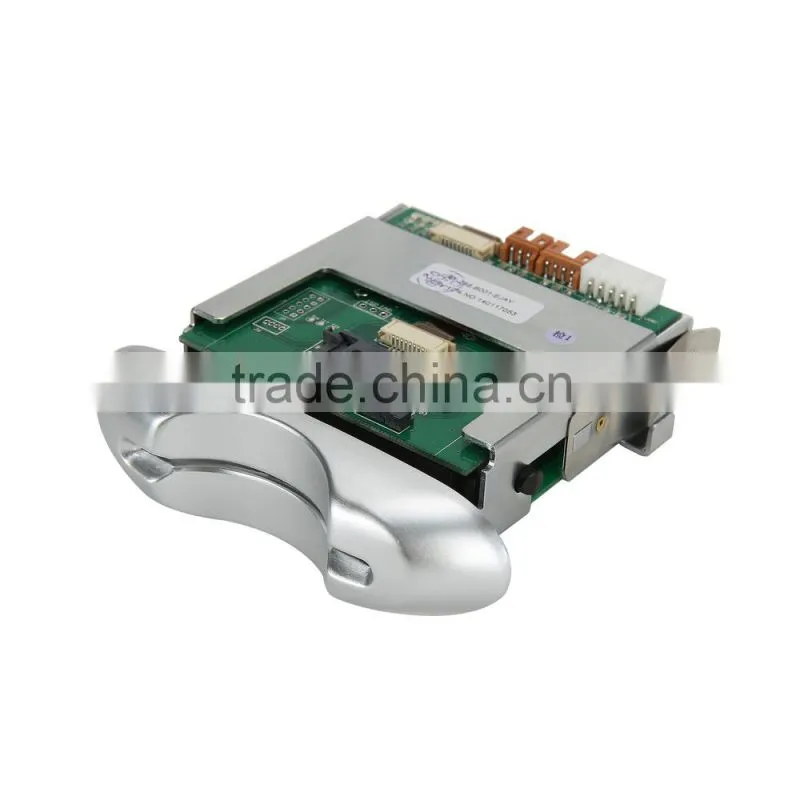

Dip Card Reader CRT-288
Model: CRT-288
Quick Details
CRT-288 series are dip card reader equipments for RFID/IC card operation, with the function of the card automatically lock the card,manual/auto card ejection
Features
Dip card reader CRT-288 has below main features:
- IC&RF card read &write
- RS232 interface
- DC12V ±5%
- Automatically lock the card,manual/auto card ejection
- Special design for protecting reader from foreign object
- Multiple bezel options
- PSAM board for option
- Special baffle design for protecting reader from foreign object
- EMV certified
Applications
- Self-service terminal
- Media inquires machine
- Vending machine
- Access control system
- Recharging machine
- Tanker
- Gaming machine
- Power changing terminal
Specifications
Item |
Description |
Contact smart card |
ISO 7816-2 |
CPU card (T=0, T=1) | |
Support T=0,T=1 SAM Card ( need to use PSAM board ) | |
Contactless smart card |
support ISO14443 TYPE A&B card Mirfare S50 S70 UL |
Interface |
RS232 |
Power |
DC5V±5% |
Life time |
IC card contact: 300,000 times min,Lock mechanism: 500,000 times min Micro switch: 500,000 times min
|
Environment conditions |
Operation:0℃~50℃/0 ~ 90% RH (Non condensing) |
Storage:-25℃~80℃/0 ~ 95% RH (Non condensing) | |
Dimension |
78.2mm (W) * 25.5mm (H) * 112.0mm (L) without bezel |
Weight |
Approx 240g |
Competitive Advantages
- IC/RF card read/write
- Mechanical lock structure
- Manual /auto card ejection
- Long life with landing contact
- 500,000 cycles durability
- Diversified bezels and bracket
