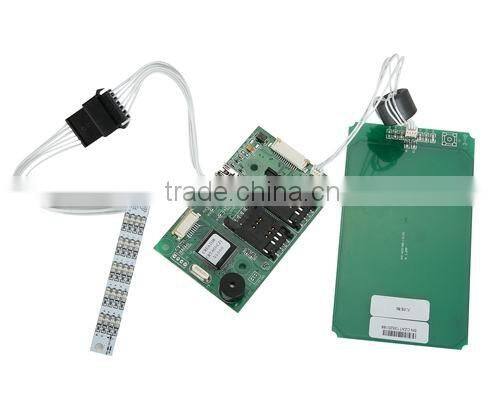

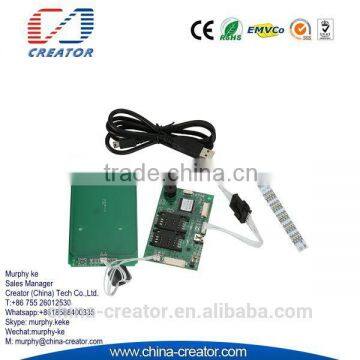

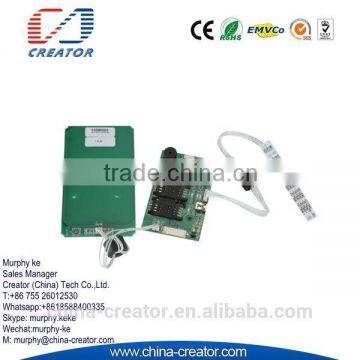

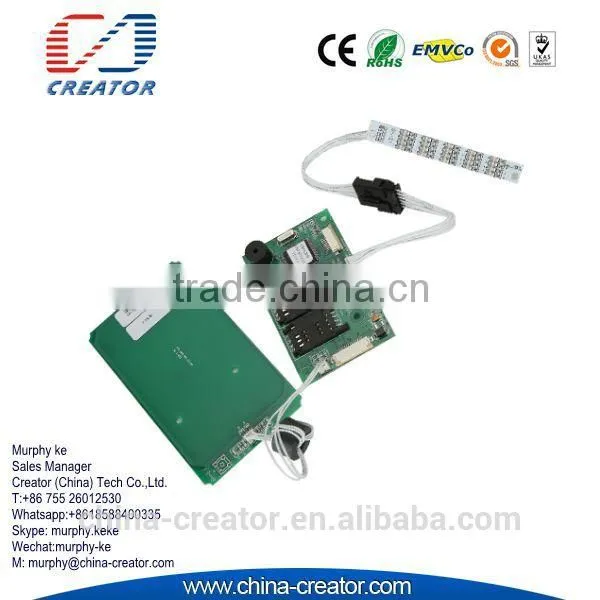

Bank ATM Contactless RFID 13.56Mhz USB CRT-603 Card Reader.
CRT-603-CZ1 is a USB dual interface card reader running on Windows including conctactless card interface andSAM card interface.
CRT-603-CZ1 complies with PC/SC standard, ISO14443 standard applicable to type A and type B contactless cards and ISO14443-3 standard applicable to MIFARE series contactless cards.
QUICK DETAIL:
1).EMV certified/PC/SC.
2).Independent RFID board and main board.
3).Bus powered, USB 2.0 full speed.
4). PC/SC V2.0 compliant, CCID interface, support Windows XP and Windows 7.
5). SAM card reader interface, User can select one of the 2 SAM slot of the SAM card reader interface to
operate.
6).Automatic search contactless card and peferctly handle multiple card conflict.
7).Support ISO14443-4 type A&B contactless cards,ISO14443-3 S50,S70 and UL etc contactless Storage Card, ISO7816 SAM card.
8). Firmware online update through USB ( supplier IAP tool provided).
9). DC 5V, static current 200mA, dynamic current 220mA,
10).EMC,QPBOC,CB,WHQL certified.
Specification:
| Item | Description |
| Card type | RF Card:ISO14443Type A&B |
| SAM card: | |
| Power supply | ISO7816 T=0,T=1 SAM card ( 2 SAM slots ) |
| DC 5V ± 5% | |
| Operating current | |
| Reading distance | 70mm(depends on card) |
| Communication interface | USB |
| Operating frequency | 13.56 MHz |
| Environmental conditions | Operation:0 ~ 50℃/0 ~ 90%RH (Non condensing) |
| Storage:-10 ~ 75℃/0 ~ 90%RH (Non condensing) | |
| Weight | About 100 g |
