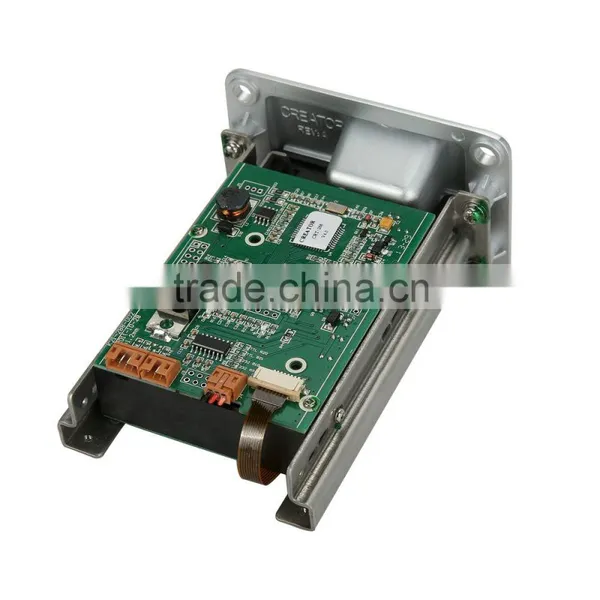

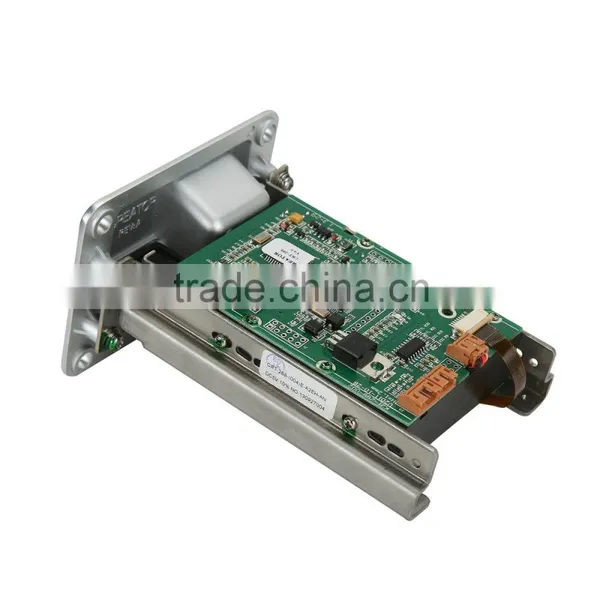

Dip Card Reader CRT-288
Model: CRT-288
Quick Details
CRT-288 series are dip card reader equipments for RFID/IC card operation, with the function of the card automatically lock the card,manual/auto card ejection
Features
Dip card reader CRT-288 has below main features:
- IC&RF card read &write
- RS232 interface
- DC12V ±5%
- Automatically lock the card,manual/auto card ejection
- Special design for protecting reader from foreign object
- Multiple bezel options
- PSAM board for option
- Special baffle design for protecting reader from foreign object
- EMV certified
Applications
- Self-service terminal
- Media inquires machine
- Vending machine
- Access control system
- Recharging machine
- Tanker
- Gaming machine
- Power changing terminal
Specifications
Item |
Description |
Contact smart card |
ISO 7816-2 |
CPU card (T=0, T=1) | |
Support T=0,T=1 SAM Card ( need to use PSAM board ) | |
Contactless smart card |
support ISO14443 TYPE A&B card Mirfare S50 S70 UL |
Interface |
RS232 |
Power |
DC5V±5% |
Life time |
IC card contact: 300,000 times min,Lock mechanism: 500,000 times min Micro switch: 500,000 times min
|
Environment conditions |
Operation:0℃~50℃/0 ~ 90% RH (Non condensing) |
Storage:-25℃~80℃/0 ~ 95% RH (Non condensing) | |
Dimension |
78.2mm (W) * 25.5mm (H) * 112.0mm (L) without bezel |
Weight |
Approx 240g |
Competitive Advantages
- IC/RF card read/write
- Mechanical lock structure
- Manual /auto card ejection
- Long life with landing contact
- 500,000 cycles durability
- Diversified bezels and bracket
