Inverter dc IGBT Module Plasma Cutting Machine, Plasma Cutter, Plasma Cutter Cnc
- shanghai
- T/T Credit Card
You May Like
-
Inverter IGBT Air Plasma Cutting Machine Portable Plasma Cutter Heavy Duty Cutting Machine 1 Year Warranty
-
IGBT Inverter Plasma Cutting Machine/inverter Cutter
-
Novel Design Inverter Cut-200 IGBT Plasma Cutting Machine for Outlet Sale Made in China
-
Inverter IGBT DC Air Plasma Cutting Machine Could be Used for Cutting Copper
-
Powerful 380V Hot Start DC IGBT Inverter Plasma Cutting Machine With Water Cooling
-
100% Duty Cycle Air Plasma Cutting Machine / IGBT Inverter Air Plasma Cutting Machine
Product Details
| Condition | New | Place of Origin | Jiangsu, China | |
| Brand Name | Heavth | Model Number | cut-200 | |
| Arc Current | 35-200A | Pulse Frequency | 50 | |
| Pilot Arc Current | 71A | Rated Duty Cycle | 100% | |
| Motor Type | DC Motor | Dimensions | 83*38*83cm | |
| Usage | cut metal materials | Voltage | 50HZ/3~380±10% | |

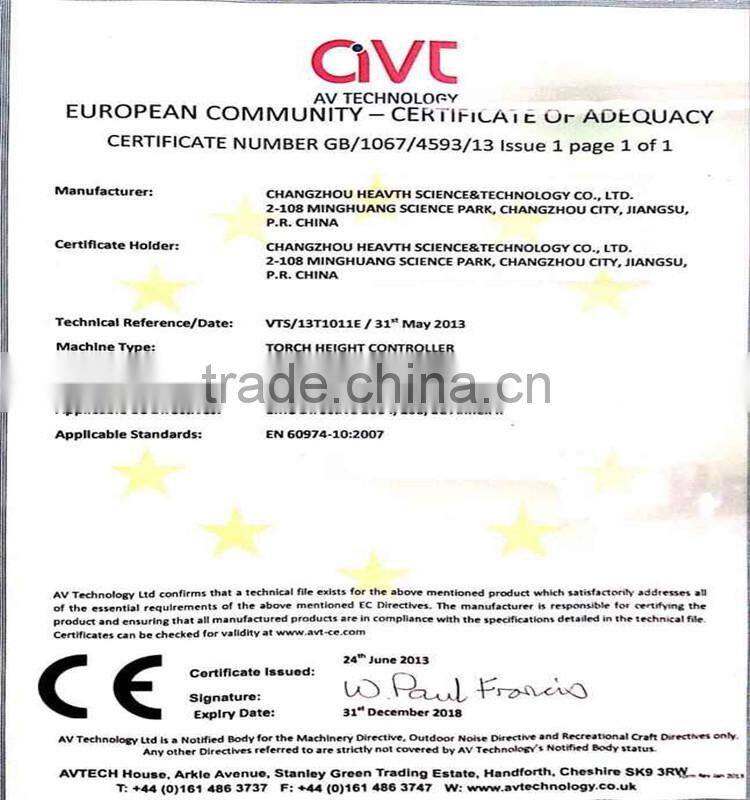

| Power(W) | 80kw | Certification | 3C,CE,ISO | |
| Warranty | 1 year and a half | After-sales Service Provided | No overseas service provided |
Product Description
inverter dc IGBT module plasma cutting machine, plasma cutter, plasma cutter cnc
| Name | CUT—100 |
| Rated inputvoltage(V) | 50HZ/3~380±10% |
| Rated input current(A) | 71 |
| DC load voltage(V) | 320 |
| DC voltage(V) | 94—150 |
| DCoperating current(A) | 35—200 |
| Duty cycle(%) | 100 |
Calculating cycle (min) | 60 |
Input pressure (MPa) | 0.7 |
| Gas flow(L/min) | 150 |
| Dimensionslength, width and height(cm) | 83×38×83 |
| Total Weight(kg) | 80 |
| No. | Cutting material | Material thickness (mm) | Pierce height (mm) | Cuttingheight (mm) | Cutting current (A) | Cutting speed (mm/min) |
| 1 | Carbon steel | 3 | 4 | 2.5 | 60 | 3500 |
| 2 | Carbon steel | 4 | 4 | 2.5 | 60 | 3000 |
| 3 | Carbon steel | 5 | 4 | 2.5 | 60 | 1250 |
| 4 | Carbon steel | 6 | 5 | 3 | 60 | 850 |
| 5 | Carbon steel | 5 | 4 | 3 | 90 | 3500 |
| 6 | Carbon steel | 6 | 4 | 3 | 90 | 2500 |
| 7 | Carbon steel | 8 | 6 | 3 | 90 | 1700 |
| 8 | Carbon steel | 10 | 6 | 3 | 90 | 1250 |
| 9 | Carbon steel | 6 | 4 | 3 | 160 | 3300 |
| 10 | Carbon steel | 8 | 6 | 3 | 160 | 2300 |
| 11 | Carbon steel | 10 | 5 | 4 | 160 | 2000 |
| 12 | Carbon steel | 12 | 5 | 4 | 160 | 1800 |
| 13 | Carbon steel | 15 | 6 | 4 | 160 | 1400 |
| 14 | Carbon steel | 10 | 5 | 4 | 180 | 2300 |
| 15 | Carbon steel | 12 | 5 | 4 | 180 | 2000 |
| 16 | Carbon steel | 15 | 6 | 4 | 180 | 1500 |
| 17 | Carbon steel | 20 | 7 | 5 | 200 | 1000 |
| 18 | Carbon steel | 25 | 8 | 6 | 200 | 600 |
| 19 | Carbon steel | 30 | It does not allow perforation, Onlyedgearc cutting | 6 | 200 | 500 |
| 20 | Carbon steel | 40 | 7 | 200 | 300 | |
| 21 | Carbon steel | 50 | 8 | 200 | 150 |
| No. | Cutting material | Material thickness (mm) | Pierce height (mm) | Cuttingheight (mm) | Cutting current (A) | Cutting speed (mm/min) |
| 1 | Stainless steel | 3 | 4 | 2.5 | 60 | 1900 |
| 2 | Stainless steel | 6 | 4 | 3 | 60 | 750 |
| 3 | Stainless steel | 5 | 4 | 3 | 90 | 2600 |
| 4 | Stainless steel | 6 | 4 | 3 | 90 | 1700 |
| 5 | Stainless steel | 10 | 6 | 3 | 90 | 1100 |
| 6 | Stainless steel | 6 | 4 | 3 | 160 | 3000 |
| 7 | Stainless steel | 10 | 5 | 4 | 160 | 1800 |
| 8 | Stainless steel | 12 | 5 | 4 | 160 | 1300 |
| 9 | Stainless steel | 15 | 6 | 4 | 160 | 900 |
| 10 | Stainless steel | 10 | 5 | 4 | 180 | 2600 |
| 11 | Stainless steel | 12 | 5 | 4 | 180 | 2200 |
| 12 | Stainless steel | 15 | 6 | 4 | 180 | 1600 |
| 13 | Stainless steel | 20 | 7 | 5 | 200 | 1000 |
| 14 | Stainless steel | 25 | It does not allow perforation, Onlyedgearc cutting | 6 | 200 | 600 |
| 15 | Stainless steel | 30 | 6 | 200 | 400 | |
| 16 | Aluminum | 3 | 4 | 2.5 | 60 | 2500 |
| 17 | Aluminum | 6 | 4 | 3 | 60 | 900 |
| 18 | Aluminum | 5 | 4 | 3 | 90 | 1900 |
| 19 | Aluminum | 6 | 4 | 3 | 90 | 1500 |
| 20 | Aluminum | 10 | 6 | 3 | 90 | 900 |
| 21 | Aluminum | 6 | 4 | 3 | 160 | 3000 |
| 22 | Aluminum | 10 | 5 | 4 | 160 | 1800 |
| 23 | Aluminum | 12 | 5 | 4 | 160 | 1300 |
| 24 | Aluminum | 15 | 6 | 4 | 160 | 900 |
| 25 | Aluminum | 10 | 5 | 4 | 180 | 2600 |
| 26 | Aluminum | 12 | 5 | 4 | 180 | 2300 |
| 27 | Aluminum | 15 | 6 | 4 | 180 | 1700 |
| 28 | Aluminum | 20 | 7 | 5 | 200 | 1100 |
| 29 | Aluminum | 25 | It does not allow perforation, Onlyedgearc cutting | 6 | 200 | 700 |
| 30 | Aluminum | 30 | 6 | 200 | 400 |
CUT series plasma cutting machine adopts the most advanced power saving technology,IGBT Inverter, Precisionpresetcutting current,Cutting metal materials.
Note:
1, For inclined cut (to play bevel), the angle of the workpiece with the torch must be greater than 45 °

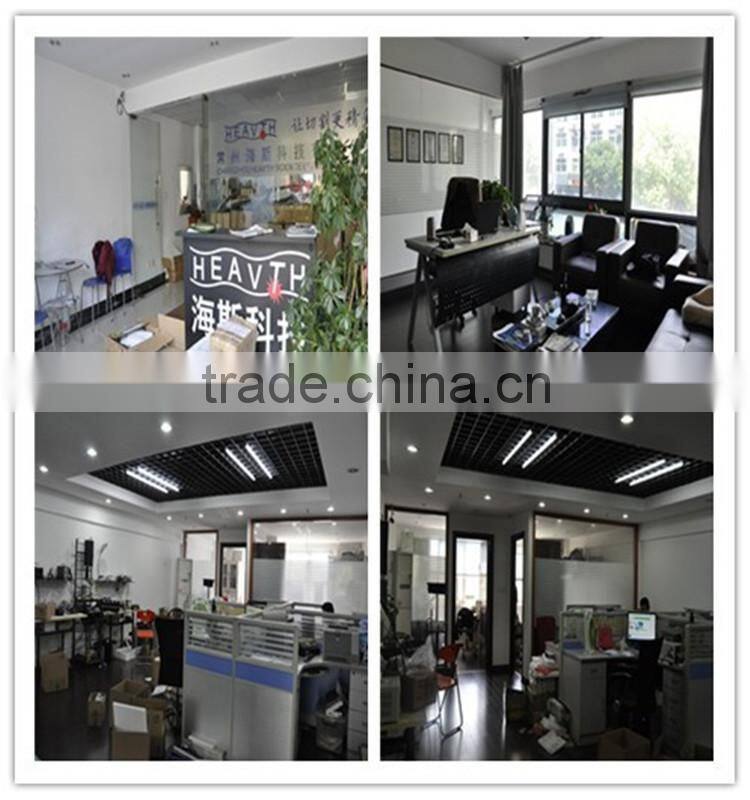

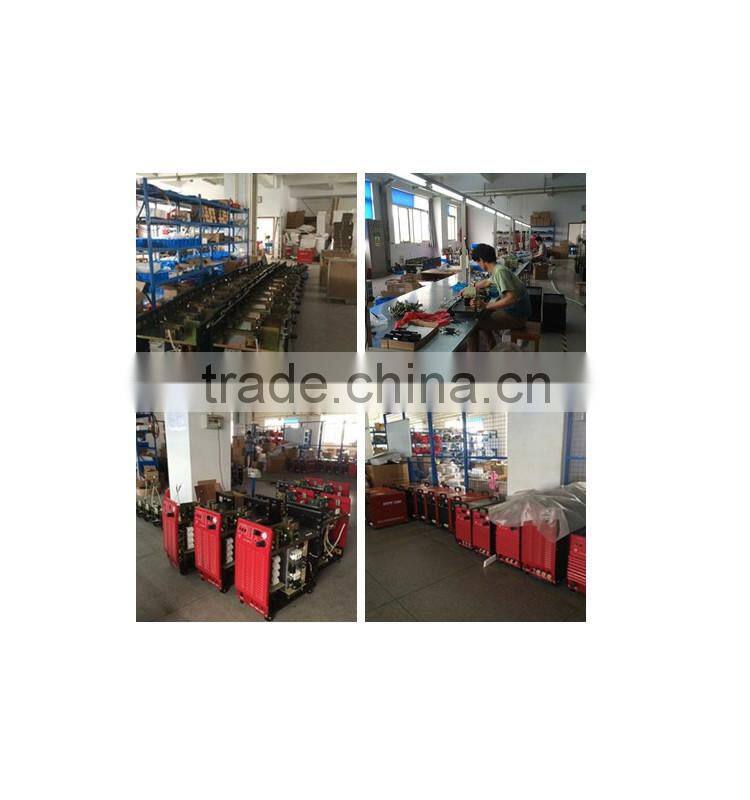

Changzhou Heavth Science& Technogy CO.,LTD.collect research, production, operating as one, strong technical force, advanced production equipment, detection means complete, excellent product quality. Products covering the United States, Japan, Europe, South Korea ...
The company is committed to quality, safety and reliability, reputation first, user supreme principle to provide users with first-class full-service, in a market economy and development, and innovation in business development in order to enhance the technical quality of service standards, develop broader market and dedication to "God" - our customer service!
Welcome new and old customers and friends to visit and call us, to discuss cooperation!
Within 2 hours enquiry will be replied
- One year and a half warranty.
- In addition, we can provide technical guidance.
Q1: Minimum order quantity?
A: For new customers, you can place a trial order to test the product’s quality and the sales in your markets.
Q2: Can I have a visit to your factory before the order?
A: Sure,welcome to visit our factory.
Here is our factory address: Branch Chong Park 2-108,Minghuang,Wujin District Changzhou
,Jiangsu,China.
