Home > Manufacturing & Processing Machinery > Laser Equipment > Laser Welding Machine > BGA Rework Station DH-A08

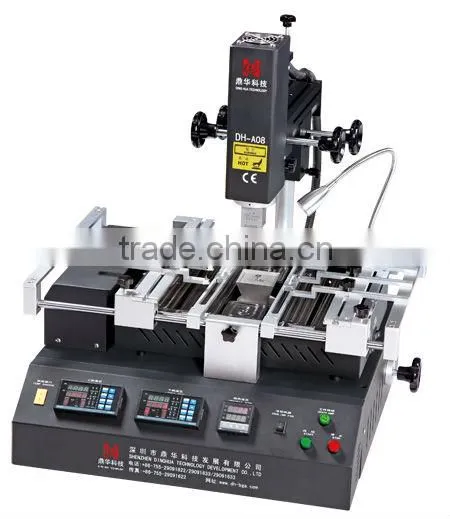

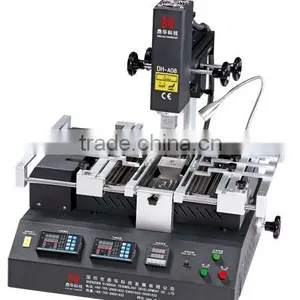

BGA Rework Station DH-A08
US$ 500 - 700
MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
DingHua
Model Number:
DH-A08
Payment & Shipping
Payment Methods:
Port of Shipment:
shekou or yantian
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Motherboard Chip Repairing Machine DINGHUA DH-A5 BGA Chip Repair MachineUS$ 19,000 - 25,000MOQ: 1 Set -
BGA Rework Station DH-A2US$ 500 - 700MOQ: 1 Set
-
Automatic Motherboard Repair Machine DINGHUA DH-A2 for Laptop With Size Camera for Viewing Balls Melting ProcessUS$ 1 - 9,000MOQ: 1 Set
-
BGA Reworks Station DH-A1LUS$ 2,200 - 3,000MOQ: 1 Set
-
PLC Control BGA Reflow Station DINGHUA DH-A5 BGA Chip Reflow MachineUS$ 19,000 - 25,000MOQ: 1 Set
Place of Origin
Guangdong, China
Brand Name
DingHua
Model Number
DH-A08
Voltage
220V
Current
50/60Hz
Dimensions
L570*W600*h600mm
Weight
30KG
Usage
for all PCBA has BGA on it
Certification
ISO2001,ISO14001
After-sales Service Provided
Engineers available to service machinery overseas
Specifications
aa Uses LED monitors control-all the data adjustments, control and display are digitally presented in s clear and convenient faDH-A08
Total power 3200W
Top heater 800W
Bottom heater 2400W
Power AC220V±10% 50/60Hz
Dimensions L570xW600Xh600mm
Positioning V-groove,PCB support can be moved in X,Y-axis. Universal fixture
Temperature controlK-type close circuit control and automatic temperature adjustment system
Temp accuracy ±2°C
PCB size Max 360×350 mm
Min 20×20 mm
BGA chip 5X5-55X55mm
Minimum chip spacing 0.15mm
External Temperatureone
Net weight30KG
Shenzhen DingHua Technology Development Co., Ltd. is a professional manufacturer specializing in develop various BGA rework stations with its accessories.
Thanks for our strong R&D capability; we have been upgrading our BGA rework station from manual operation to robot as per customer's different requirements. Now we are still researching and developing our unique technology to be used in our next generation BGA rework station, which combines the most advanced with integrated technology. Our key components are using international brands to ensure
Warmly welcome any inquiry and welcome come factory have a visit^^
