Specifications

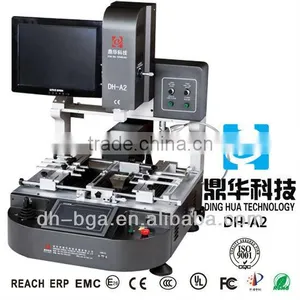

High Definition Monitor ,imaging is very clear,you can observe every melting joints clearlyThree Heating Zone Optical BGA rework Station:DH-A2
Total Power |
5200W |
Top heater |
1200W |
Bottom heater |
No 2 1200W,No3 2700W |
power |
AC220V±10% 50/60Hz |
Dimensions |
L600×W700×H850 mm |
Positioning |
V groove,PCB support can be moved to X,Y axis,universal fixture |
Temperature control |
K type close circuit control(K Sensor)automatic temperature adjustment system(Closed loop) |
Temp accuracy |
±2 degree |
PCB size |
Max 440×380 mm Min 22×22 mm |
BGA chip |
2X2-80X80mm |
Minimum chip spacing |
0.15mm |
External Temperature Sensor |
one,(optional) |
Net weight |
70kg |
5 is equipped with a variety of specifications alloy nozzle, the nozzle can be rotated 360 degrees to locate, easy to install and replace;
6 down a total of three independent heating temperature, three temperature zones can be multiple sets of multi-stage temperature control while ensuring synchronization of different temperature zones for optimal welding results. Heating temperature, time, slope, cooling and vacuum settings can be completed on the man-machine interface.
7 bottom temperature can be set to the temperature control section 8, the mass storage temperature curve, can be called at any time according to different BGA, on the touch screen curve analysis can also be set and modified; three heating zones with independent PID algorithm control the heating process,
8 more uniform heating, the temperature is more accurate;
9 using high-power cross-flow fan rapidly cool the PCB board, prevent deformation of PCB, mounting, welding, demolition process intelligent
Shenzhen DingHua Technology Development Co., Ltd. is a professional manufacturer specializing in develop various BGA rework stations with its accessories. it is widly used for laptop/desktop mobile phone, XBOX360, PS3 PCB repairing and soldering ,it engrated with manufactory,develop and sales with experience about 7 years, BGA rework station marketing to individual repair, industrial and mining , teaching and research, military, aerospace and other fields, and in the domestic and foreign has established sales network and improve the corresponding Terminal Services
There are three levels of bga machines in our factory
1.2 or 3 temperature heaters
2.with PLC control touch screen
3.optical vision system with CCD camera,3 temperature heaters which are suitable for iphone motherboard and double layer bga motherboard
Our office
Our workshop
Our Sample Room
Why choose us?
1.We have rich experience, As we know, how to control the temperature is very important when we soldering or desoldering the bga, our machine use PID control, the data acquisition frequency of our machine is 10ms(which means every 10ms the PID will grab the data to correcting the temperature,), but for most of bga rework station from other company, their PID grab frequency is 30ms,this is a big difference between 10ms and 30ms. That’s why our machine is more accurate.
2.Our products with good quility,we have pass CE and ISO certification
3.Fast Delivery ,best service,the products can send anywhere all over the world in short time via FedEx, DHL, UPS, EMS, TNT and so on after the receipt of the payment.
After-sales service:
We supply 3 years warranty for this BGA rework station , in the first year, offer spare parts for free, the other 2 years, only charge fees for spare parts, technical support is always available.
The customer wich we have cooperation with,we have cooperation with many famous company
If you have any inquiry ,pls feel free contact us,we would like at your service at any time
Sincerly hope in furture we can work together
Thanks for your support
Shenzhen Dinghua Technology Development Co.,LTD.
Add:3rd Floor,46#Building,Dayantian industrial District,Wanfeng Village,Shajing Town,Bao`an Area,Shenzhen,China
Tel:+86-0755-29091833 Fax:86-0755-29091622
