RHS Series Microporous Filter
RHS Series Microporous Filter is a solid-liquid equipment with the functions of filtration,washing,drying (three in one).
The filtration adsorption and solid recovery of metal catalyzer,zeolite etc,in the industries of fine chemical,plastic,fuel,electricity,grease,lubricant,porcelain,glass,alkali etc.
RHS Series Microporous Filter is a kind of clarifying equipment with high-efficiency and energy-saving and enclosed operation. It has traits as follows:
- 1. Completely enclosed no leakage , no pollution.
- 2. The filtering core adopts component structure which can be used widely and excellent filtering effect.
- 3. It can achieve thoroughly filtration one time.
- 4. Filter cake can be washed and dried and it can achieve the best economical benefit.
- 5. Adopting air blowing in reverse to discharge the residue which is rapid and clean, and also used in various sticky materials.
- 6. The whole process can achieve completely full-Automation.
Main Technological Parameters:
Model |
RH-2 |
RH-3 |
RH-5 |
RH-8 |
RH-10 |
RH-20 |
RH-30 |
RH-40 |
RH-60 |
RH-80 |
RH-100 |
Filtration area |
2 |
3 |
5 |
8 |
10 |
20 |
30 |
40 |
60 |
80 |
100 |
Treatment Capacity(T/h) |
According to the experimental data of Raw material |
|
|||||||||
Work pessure(Mpa) |
≤0.25 |
||||||||||
|
Work Temperature (℃) |
≤80-100 |
||||||||||
Shell diameter |
Φ300 |
Φ300 |
Φ550 |
Φ600 |
Φ800 |
Φ900 |
Φ1000 |
Φ1400 |
Φ1600 |
Φ1800 |
Φ2000 |
Shell Height |
1500 |
1650 |
2400 |
2600 |
3100 |
3100 |
3700 |
4100 |
4100 |
4600 |
5200 |
Shell Volune |
0.057 |
0.071 |
0.297 |
0.367 |
0.754 |
0.954 |
1.178 |
2.31 |
3.5 |
4.0 |
4.8 |
Inlet/outlet Caliber(mm) |
DN40 |
DN40 |
DN50 |
DN50 |
DN50 |
DN65 |
DN65 |
DN65 |
DN80 |
DN100 |
DN150 |
Discharge Port(mm) |
Φ300 |
Φ300 |
Φ550 |
Φ550 |
Φ800 |
Φ800 |
Φ800 |
Φ800 |
Φ1600 |
Φ1800 |
Φ1800 |

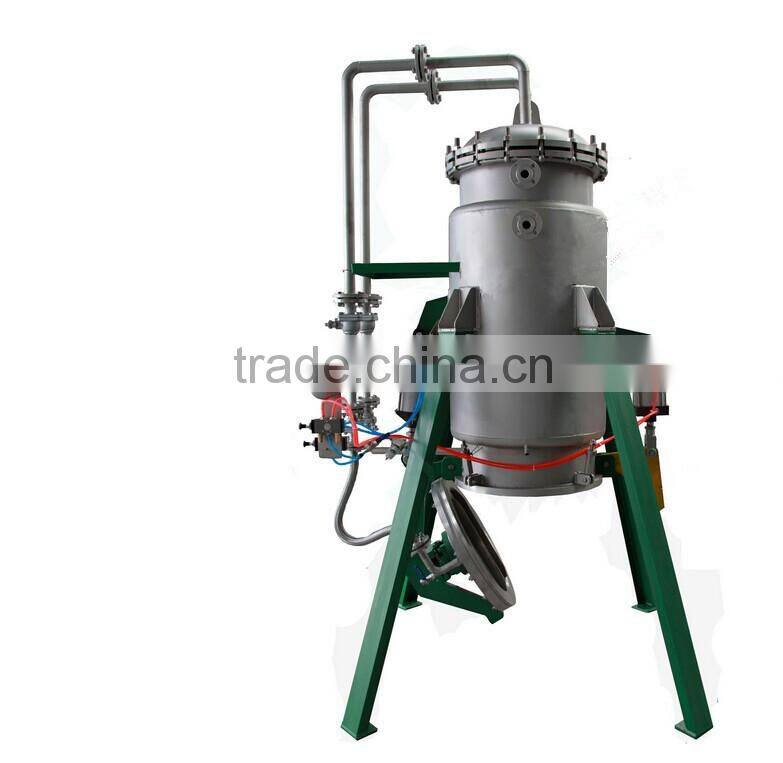

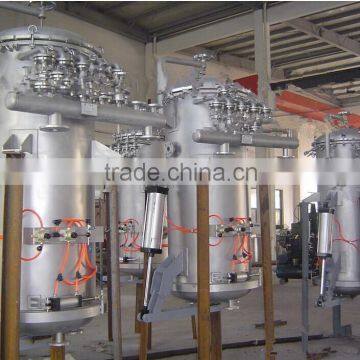

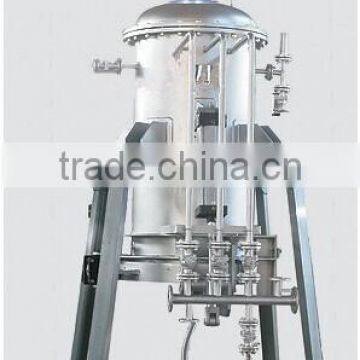

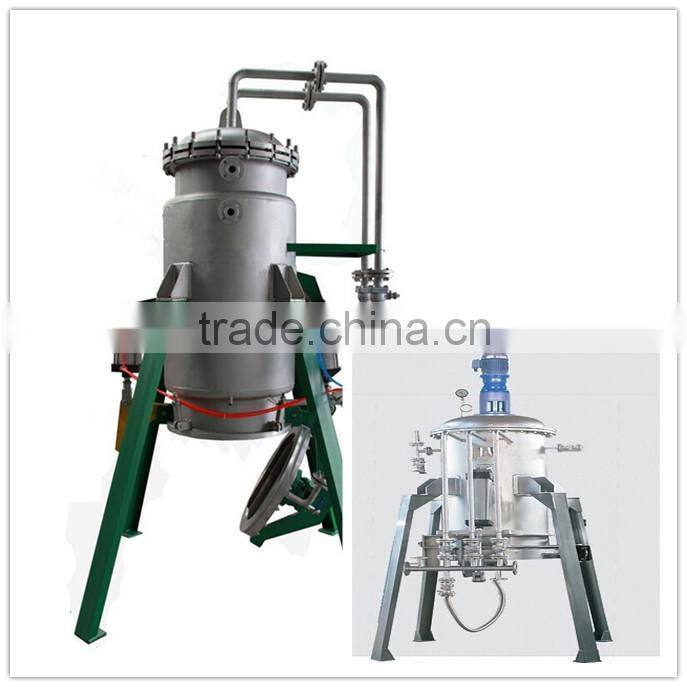

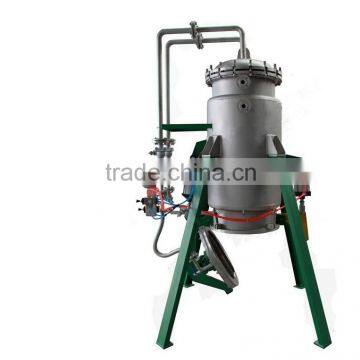

Product Photos:
