ABF Series Automatic Sealed Filter Plate Made In China
| Model |
filtration area (m2) |
Food treament capacity (t/h) |
Petroch emistry treament capacity (t/h)
|
Oil treament capacity (t/h)
|
Work pressure (Max) |
Machine volune (L) |
Weight (kg) |
Outline dimension
|
| ABF-5 | 5 | 2-3 | 2-5 | 1-1.2 | 0.5 | 600 | 2100 | 1500*1300*1950 |
| ABF-7 | 7 | 4-6 | 5-7 | 1.4-2 | 780 | 2500 | 1600*1400*2000 | |
| ABF-10 | 10 | 6-8 | 7-9 | 2-3 | 1200 | 2800 | 1700*1500*2320 | |
| ABF-15 | 15 | 9-12 | 11-13 | 3-5 | 2000 | 3800 | 2050*2100*1900 | |
| ABF-20 | 20 | 12-16 | 15-17 | 5-7 | 2200 | 4200 | 2050*2100*2200 | |
| ABF-25 | 25 | 15-20 | 19-21 | 7-9 | 2500 | 4500 | 2050*2100*2600 | |
| ABF-30 | 30 | 18-24 | 23-25 | 9-11 | 4700 | 5800 | 2600*2500*3600 | |
| ABF-35 | 35 | 21-27 | 27-29 | 11-13 | 4900 | 6500 | 2600*2500*3800 |

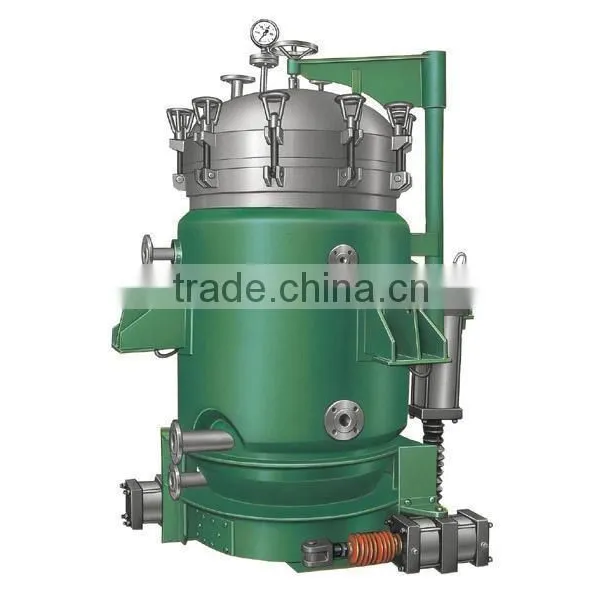

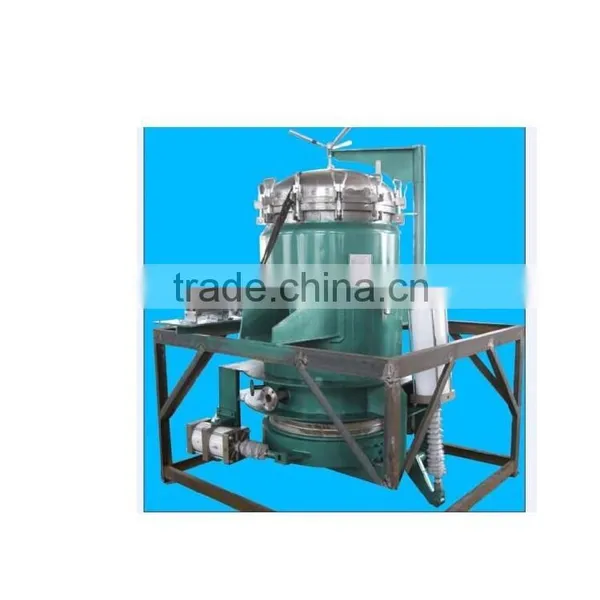

ABF series automatic plate type hermetic filter is the fine clarifying and filtering and filtering equipment with high-efficiency and energy-saving. With its unique structure , it has incomparable advantages.
1. Fully hermetic filtering operation , no leaksge, no pollution.
2. Once filtering complete clarified ,it filtering precision up to PPM.
3. Low filtration cost , and no need of filter paper and filter cloth.
4. Complete recovery ,without residual filtrate.
5. The residue is easy to be automatically discharged ,only pressing a controlled button.
6. Recovery the filtrate and the filtering residues together.
7. Combined with a computer, the whole filtering process are completely automatic.
8. No limit of the filtering temperature , less labor force and easy to operate.
9. Less cost of production ,and easy to repair and maintain
10. The equipment had reached the advance level in the world.
Application :
Chemical industry
petroleum industry
food industry
pharmaceutical industry
Pre-sales:
According to the customers' requirements,provide a comprehensive
range of filtering technology professional consultation, analysis the
customers' demand carefully and the working environment, provide
and design the most suitable products.
After sale:
Provide the life-long free product updates, filtering technology
improvements, technology consusultation such as professional consuiting services
Shanghai Runlan filteration equipment Co.,Ltd. is professional engaged in research, design, manufacture and salea of fillteration equipment for the integration of Science & Technology entities of private joint-stock enterprise which founded in 2008.
Enterprise leading product are: bag filter, cartridge filrer precision filter, Candle filter, automatic filter, filter press, diatomaceous earn filter, centrifuges, and other filteration equipment .For the convenience of the new and old customers, the company also can design and customized non-standard filteration equipment ,and with the most preferential prices to provide filter cloth, filter bag, filter cartridge, menbrance filteration and other consumables, etc.
1 Q: Are you a factory or tradeing conpany?
A: We are a factory
2 Q: Where is your factory located ? How can i visit there
A: We have two factories for different product range
All our cients from home or abrod , are warmly welcome to visit us .
3 Q: How does your factory do regarding quality control?
A: Quantity is priority. NM safety people always attach great importance to
quality controling from the very begining to the very end.
4 Q: Terms and services
A: Trade term: FOB, CIF, CFR
Payment terms: T/T L/C at sight
Loading port : Shanghai
Delivery : With 60 days, depends on customers' order quantity
5 Q: Warranty
A: For one year. in addition to artificial damage
Welcome to send us inquiry ,if you are interested in our product .
