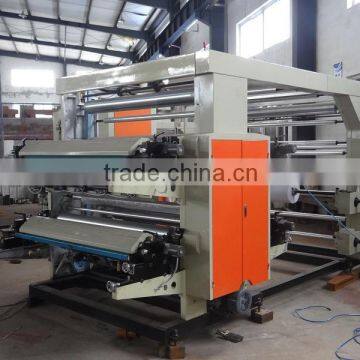

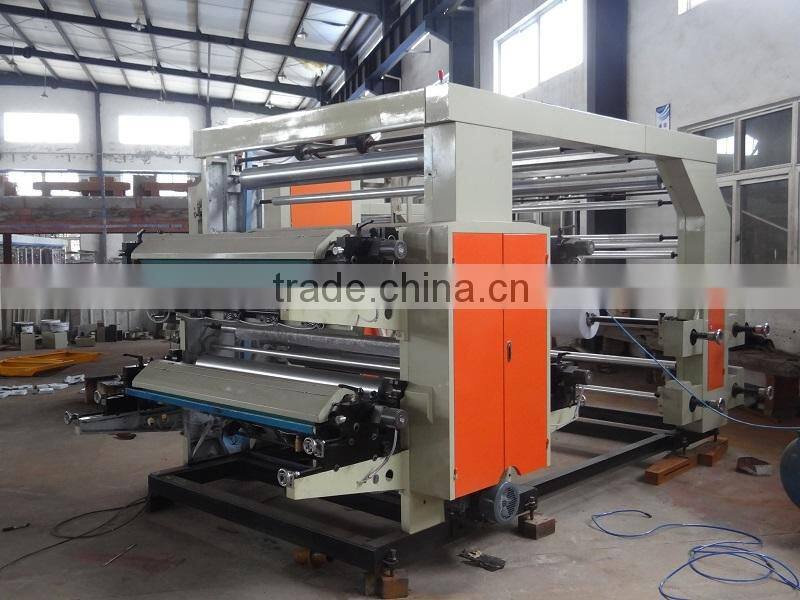

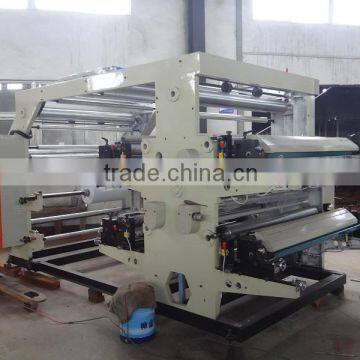

4 Color Flexo Non-Woven Fabric Printing Machine (EN-4600)
Introduce sensitization resin as flexible printing plate, suitable for printing such packing materials as polyethylene, polypropylene bag, cellophane and roll paper, etc. It is a kind of ideal printing equipment for producing paper packing bag for food, supermarket handbag, vest bag and clothes bag, etc.
1. Easy operation, flexible starting, accurate color register.
2. The meter counter can set printing quantity according to the requirements. Stop the machine automatically at the quantity or when the material is cut off.
3. Pneumatic printing cylinder lift and lower, it will stir the printing ink automatically after lifting.
4. The printing ink is spread by the anilox cylinder with even ink color.
5. Reliable drying system coordinated with high-speed rotation, it will automatically break circuit when the machine stops.
6.360° Continuous and adjustable longitudinal register device.
7. The frequency control of motor speed adapts to different printing speeds.
8. There are Jogging/Stopping buttons on the plate roller base and material rolling rack so as to make it easy operate the machine when the plate is installed.
1)Main Parameter | |||
Model |
EN-4600 |
EN-4800 |
EN-41000 |
Material |
Film, Non-woven fabric, Paper, and so on |
||
Max. Width of Printing Material |
600mm |
800mm |
1000mm |
Max. Effective Width of Printing |
560mm |
760mm |
960mm |
Length Range of Printed Product |
191-914mm |
191-914mm |
191-914mm |
Speed of Material Printing |
10-50m/min |
10-50m/min |
10-50m/min |
Thickness of Plate |
2.38mm |
2.38mm |
2.38mm |
Machine dimension(L×W×H) |
4200×1600×2400mm |
4200×1800×2400mm |
4200×2000×2400mm |
Machine weight |
2500kg |
2700kg |
3000kg |
Voltage |
380V,3PH,50HZ |
380V,3PH,50HZ |
380V,3PH,50HZ |
2)Unwind Unit | |||
The width of Roller |
650mm |
850 |
1050mm |
Max. width of Effective Roller |
600mm |
800mm |
1000mm |
Dia. Of Roller |
76mm |
76mm |
76mm |
Max. Dia. Of Unwind |
600mm |
600mm |
600mm |
Type of Unwind |
Manual |
Manual |
Manual |
3) Traction Unit | |||
Constitution of Traction |
Rubber Roller and Chrome plated Roller |
||
Traction Zones |
4 |
4 |
4 |
4) Printing Unit | |||
Constitution of Printing |
Chrome plated Roller, Rubber Roller, Metal Anilox Roller, Plate-glued roller |
||
Girth of Pressing Roller |
600mm |
600mm |
600mm |
Material of Plate |
Resin and Rubber |
Resin and Rubber |
Resin and Rubber |
Principle of Work: |
Gears Drive |
Gears Drive |
Gears Drive |
Type of Chromatically: |
360 degree circulating |
||
Way of Adjusting: |
Manual |
||
Plated-glued roller adjusting: |
Manual |
||
5)Heating and Drying Unit | |||
Type of Heating and drying : |
Blowing first then heating |
||
Heating Zones: |
6 zones |
6 zones |
6 zones |
Power of Heating : |
9 kw |
9 kw |
9 kw |
Assistance of Drying Length: |
1000mm |
1000mm |
1000mm |
Blowers: |
2 Fans |
2 Fans |
2 Fans |
Power of Blowers: |
0.75kw×1pcs 0.55kw×1pcs |
0.75kw×1pcs 0.55kw×1pcs |
0.75kw×1pcs 0.55kw×1pcs |
6)Electrical Parts | |||
Main motors |
3.7 kw |
3.7 kw |
3.7 kw |
Ink-Transfer Motor |
10w×4 pcs |
10w×4 pcs |
15w×4 pcs |
An Inverter Equips With the Main Motor | |||
7) Wind Unit | |||
The width of Roller |
650mm |
850mm |
1050mm |
Max. width of Effective Roller |
600mm |
800mm |
1000mm |
Dia. of Roller |
76mm |
76mm |
76mm |
Max. Dia. of wind |
600mm |
600mm |
600mm |
Type of wind |
Friction |
Friction |
Friction |
Packaging & Shipping
Guarantee period and after-sales services:
12 months since installation finish and machine normal working. During this guarantee period, RUIAN ENOCH will provide spare parts without any charge in case of quality discrepancy caused by us. If the malfunctions are caused by your incorrect operations, RUIAN ENOCH will provide spare parts at cost price.
Long-term service:
RUIAN ENOCH will charge the buyer the cost price of spare parts beyond guarantee time and provide long-term technical guide.
Engineer service:
Installation and Adjusting: If required, the seller will dispatch the technician to your country for installation, commissioning, adjusting the machine and training the workers at your plant. After the Machine arrived destination and the customer wants our technician help them running the machine, we will sent our technician to the place of our customer’s factory and training them, but they should pay the charge as bellowed:1: The charge of the VISA 2:The ticket of the air plane from Our city to the Destination place and the Destination place to our city.3:Hotel 4:Pay the salary to the technician 100 USD per day.
